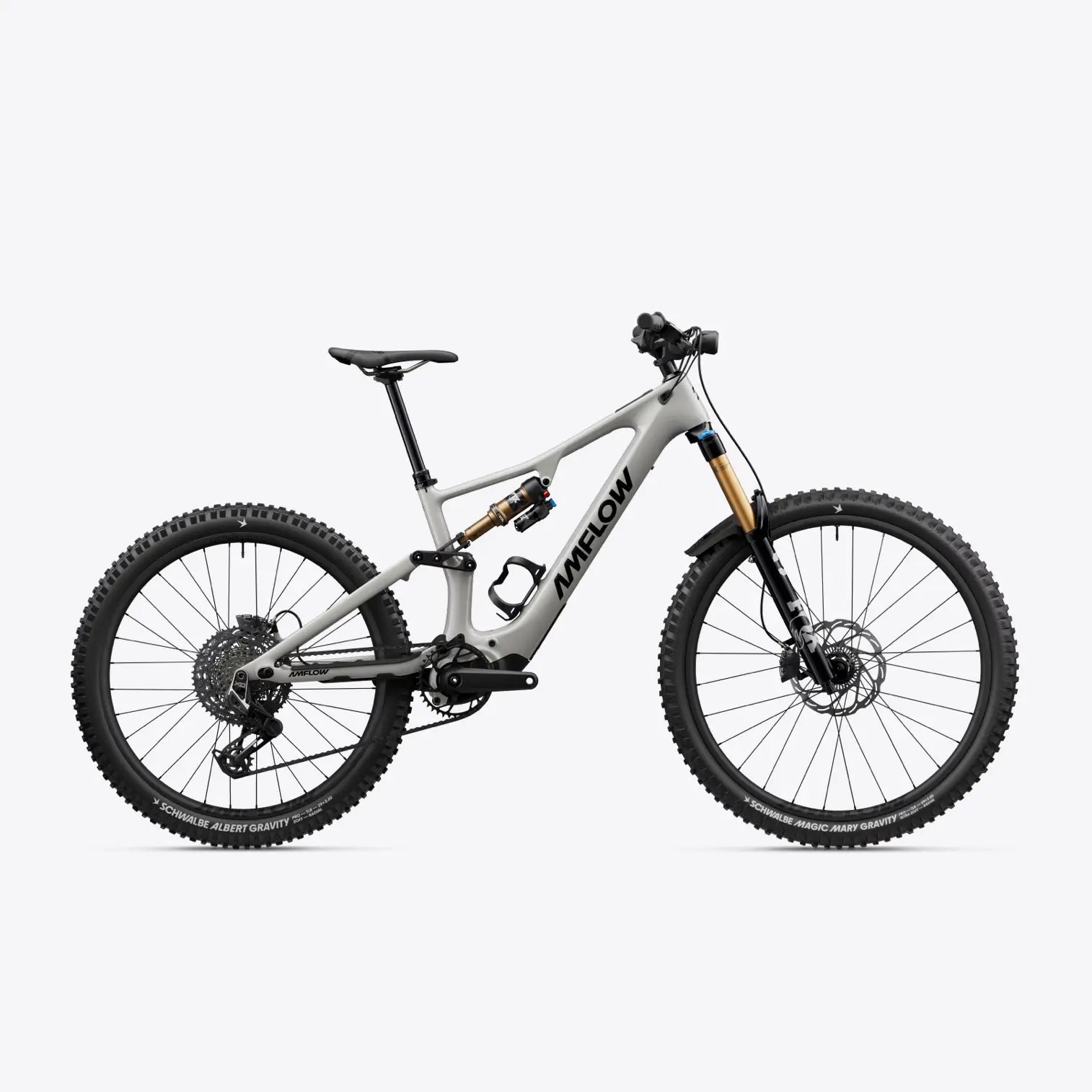

Amflow PR Carbon Pro: The New Benchmark for Full-Power eMTBs

The Amflow PR Carbon Pro isn't just a new e-bike; it’s a technological leap. Built around the revolutionary DJI Avinox Drive System, this machine delivers an unprecedented power-to-weight ratio that redefines what a full-power mountain bike can do.

Whether you are crushing technical climbs or looking for total control on the descents, the PR Carbon Pro provides a level of integration and performance that was previously impossible.

Core Performance Highlights

• DJI Avinox M2S Drive Unit: Experience a massive 125Nm of continuous torque, with a 150Nm Boost mode to conquer the steepest, most technical terrain.
• Ultra-Fast Charging: The high-energy 800Wh battery supports 3x fast charging, taking you from 0% to 75% in approximately 1.5 hours.
• Lightweight Precision: By utilizing cutting-edge carbon layups, the PR Carbon Pro frame weighs just 2.27kg, resulting in a total bike weight that rivals many "lightweight" e-bikes while maintaining full-power output.
• Avinox Ecosystem: A vibrant 2-inch OLED touchscreen is integrated directly into the top tube, providing real-time data, system health, and customizable ride modes via the Avinox app.

                  Frame

Amflow
PX Carbon Pro Frame

Moonstone
Gray

40
adjustable geometry configurations *

Compatible
with 27.5″ and 29″ rear wheels

* The bike offers 5 headset angle settings, 2 bottom bracket height
settings, and 4 chainstay length settings. Users can combine these settings
based on different riding styles and terrain conditions. Theoretically, these
parameters can form up to 40 geometry configurations. The specific adjustable
range and applicable effects are subject to actual usage.

E-Bike System

Avinox
M2S Drive Unit: Nominal 130N·m, Peak 150N·m

Avinox
Screen: 2-inch OLED Control Display

Avinox
Integrated Battery: 700Wh

Avinox
Wireless Controllers: Right and left sides

Avinox
Fast Charger: 12A/508W

Rear shock

FOX
Float X Factory (MY 2027)

2-position
lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock

Fork

FOX
36 Factory (MY 2027)

160mm
travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset

Drivetrain

Rear
Derailleur: SRAM X0 Eagle Transmission Derailleur

Chainring:
SRAM Eagle Transmission DM Chainring 38T for Avinox

Shift
Levers: SRAM AXS Pod Rocker Controller

Cassette:
SRAM XS-1295 Eagle Transmission Cassette 10-52T

Chain:
SRAM X0 Eagle Transmission Chain

Power
Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS
Extension Cord)

Crankset:
Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

Magura
Gustav Pro Hydraulic Disc Brake, 4-piston calipers

Magura
Sensor Rotor (203mm, 2.5mm)

Wheels

Amflow
XMC-30 Mullet Version

Front
Rim: Carbon, 29″, 30mm inner width, 28H, tubeless
ready

Rear
Rim: Carbon, 27.5″, 30mm inner width, 32H, tubeless
ready

Spokes:
SAPIM E-Light

Front
Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt

Rear
Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls
60T, XD

Tires

Front:
Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready

Rear:
Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready

Handlebar

Amflow
Enduro Carbon Handlebar

40mm
Rise, 800mm Width, 35mm Diameter

5-degree
upsweep, 9-degree backsweep

Grips

Amflow
Enduro Grip 2 Lock-on Grips

Stem

Amflow
Mountain Bike Split Stem

Length:
35mm

Clamping
Diameter: 35mm

Saddle

Amflow
Mountain Saddle Titanium

Dropper Post

Amflow
Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)

M/L
Frame: 190mm

XL
Frame: 210mm

XXL
Frame: 230mm
