PX Carbon

$10,299.00
  • Medium
  • Large
  • X-Large
  • XX-Large
Size chart
Size chart
Geometry
M L XL XXL
A Reach 455mm 478mm 503mm 528mm
B Stack Height 622.1mm 632.2mm 645.9mm 659mm
C Standover Height 780mm 785mm 790mm 795mm
D Front Center 793.1mm 820.9mm 852mm 883.9mm
E Fork Length 570mm 570mm 570mm 570mm
F Wheelbase 1231.3mm 1259.1mm 1290.2mm 1322.1mm
G Chainstay Length 438/451mm 438/451mm 438/451mm 438/451mm
H Bottom Bracket Drop 10.5/23.7mm 10.5/23.7mm 10.5/23.7mm 10.5/23.7mm
I Bottom Bracket Height 345.5mm 345.5mm 345.5mm 345.5mm
J Effective Top Tube Length 586.9mm 619.7mm 642.8mm 672.2mm
K Head Tube Angle 64.2° 64.2° 64.2° 64.2°
L Head Tube Length 109mm 120mm 135mm 150mm
M Actual Seat Tube Angle 72° 72° 72° 72°
N Effective Seat Tube Angle 78° 78° 78° 77.7°
O Seat Tube Height 415mm 427mm 447mm 466mm
Pickup available at Gasoline Alley Storefront

Usually ready in 24 hours
View store information

PX Carbon

Size: Medium

Pickup available, Gasoline Alley Storefront

Pickup available, usually ready in 24 hours

179 Leva Avenue
103B
Red Deer County AB T4E 1B9
Canada

+14033429558

Pre-Order Information & Deposit

Secure your spot in the first Canadian shipment. Due to extremely high global demand for the DJI Avinox system, initial allotments are limited. Placing a full payment on the bike ensures your place in line for the first batch of arrivals.

*We won't charge your card, just pre-authorize it*

  • Estimated Arrival: Late June/ early July 2026

  • Next Steps: Select your size and color below to pay your deposit. Our team (Derek or Vlad) will contact you directly to confirm your build specifications and provide regular shipping updates.

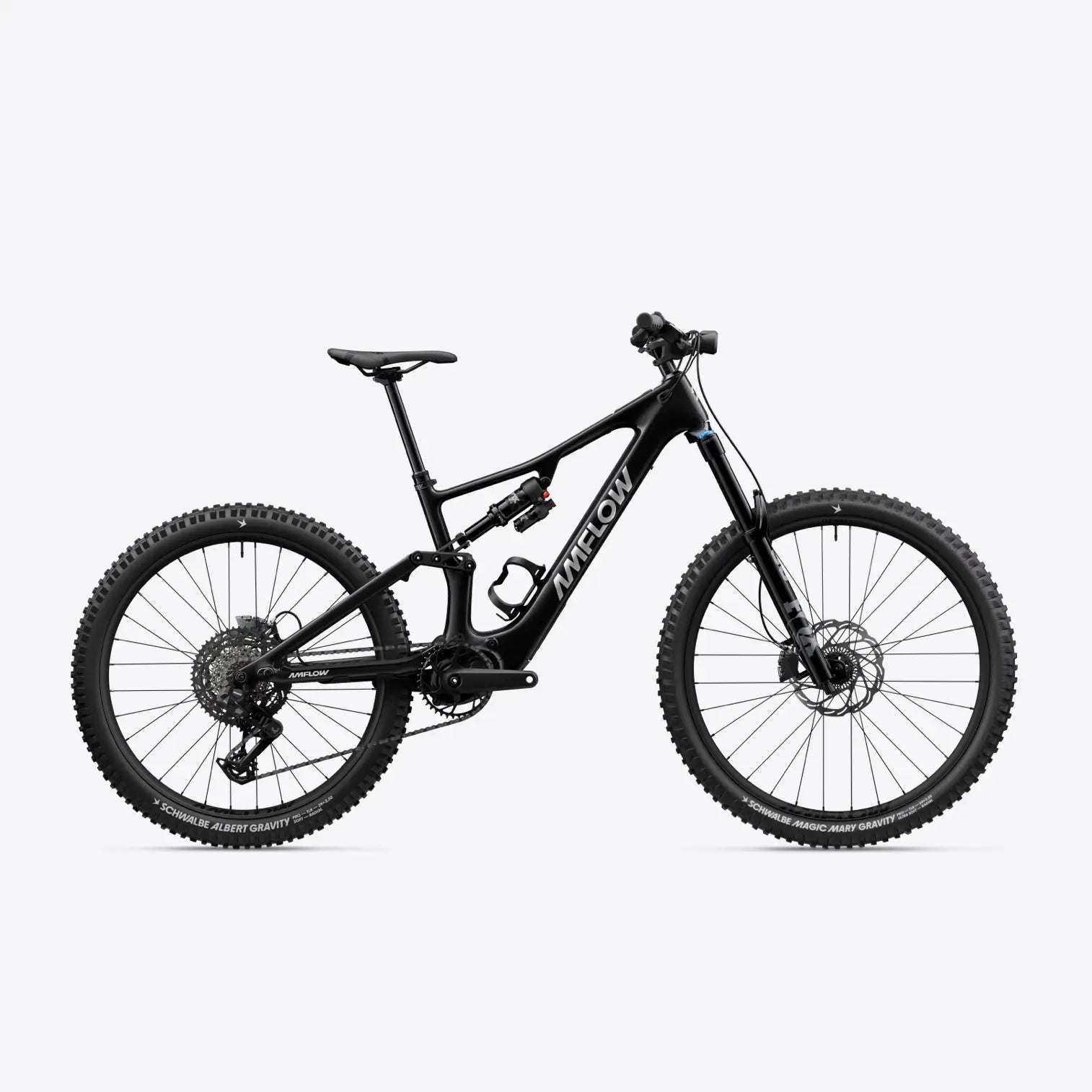

Amflow PX Carbon: The Lightweight Performance Specialist

The Amflow PX Carbon is engineered for the performance-focused rider who wants the best power-to-weight ratio in the industry. By utilizing a lighter carbon layup and a high-density integrated battery, the PX achieves a total weight in the 20kg class—blurring the line between "lightweight SL" agility and "full-power" dominance.



While the PR series is about ultimate capacity, the PX is about sustained motor performance and razor-sharp handling on technical terrain.



Core Performance Highlights

  • Integrated Avinox 700Wh Battery: Features an industry-leading energy density of 220Wh/kg. The integrated (non-removable) design allows for a slimmer, stiffer frame that improves high-speed stability and unlocks the motor's full performance potential.



  • Avinox M2S Drive Unit: Both the Carbon and Carbon Pro PX models come standard with the flagship M2S motor, delivering 130Nm of nominal torque and a peak of 150Nm in Boost mode.



  • 20kg Class Agility: With a frame weight of only 2.4kg, the PX is significantly lighter than the PR series, making it the more agile and responsive choice for aggressive trail and enduro riding.



  • Advanced Geometry Tuning: Offers 40 potential geometry configurations. Riders can adjust the head tube angle (64.2° stock), bottom bracket height, and chainstay length to perfectly match the local Alberta terrain.



The Build: High-Value Performance

  • Suspension: FOX Performance 36 Fork (160mm) and FOX Float Performance Rear Shock (150mm), custom-tuned to handle the explosive torque of the Avinox system.



  • Drivetrain: SRAM S1000 Eagle Transmission with AXS wireless shifting, providing reliable, clean shifts even under the massive 150Nm load.



  • Braking: Magura Gustav Pro 4-piston hydraulic brakes with 203mm rotors for consistent, elite-level stopping power.



  • Wheelset: Lightweight alloy rims with a Mullet setup (29” front/27.5” rear) for the perfect balance of rollover capability and cornering snap.

AMFLOW PX Carbon Pro

Description

Amflow PX Carbon: The Lightweight Performance Specialist

The Amflow PX Carbon is engineered for the performance-focused rider who wants the best power-to-weight ratio in the industry. By utilizing a lighter carbon layup and a high-density integrated battery, the PX achieves a total weight in the 20kg class—blurring the line between "lightweight SL" agility and "full-power" dominance.


While the PR series is about ultimate capacity, the PX is about sustained motor performance and razor-sharp handling on technical terrain.


Core Performance Highlights

  • Integrated Avinox 700Wh Battery: Features an industry-leading energy density of 220Wh/kg. The integrated (non-removable) design allows for a slimmer, stiffer frame that improves high-speed stability and unlocks the motor's full performance potential.
  • Avinox M2S Drive Unit: Both the Carbon and Carbon Pro PX models come standard with the flagship M2S motor, delivering 130Nm of nominal torque and a peak of 150Nm in Boost mode.
  • 20kg Class Agility: With a frame weight of only 2.4kg, the PX is significantly lighter than the PR series, making it the more agile and responsive choice for aggressive trail and enduro riding.
  • Advanced Geometry Tuning: Offers 40 potential geometry configurations. Riders can adjust the head tube angle (64.2° stock), bottom bracket height, and chainstay length to perfectly match the local Alberta terrain.

The Build: High-Value Performance

  • Suspension: FOX Performance 36 Fork (160mm) and FOX Float Performance Rear Shock (150mm), custom-tuned to handle the explosive torque of the Avinox system.
  • Drivetrain: SRAM S1000 Eagle Transmission with AXS wireless shifting, providing reliable, clean shifts even under the massive 150Nm load.
  • Braking: Magura Gustav Pro 4-piston hydraulic brakes with 203mm rotors for consistent, elite-level stopping power.
  • Wheelset: Lightweight alloy rims with a Mullet setup (29” front/27.5” rear) for the perfect balance of rollover capability and cornering snap.

Specs

Frame

Amflow
PX Carbon Frame

Phantom
Black

40
adjustable geometry configurations *

Compatible
with 27.5″ and 29″ rear wheels

* The bike offers 5 headset angle settings, 2 bottom bracket height
settings, and 4 chainstay length settings. Users can combine these settings
based on different riding styles and terrain conditions. Theoretically, these
parameters can form up to 40 geometry configurations. The specific adjustable
range and applicable effects are subject to actual usage.



E-Bike System

Avinox
M2S Drive Unit: Nominal 130N·m, Peak 150N·m

Avinox
Screen: 2-inch OLED Control Display

Avinox
Integrated Battery: 700Wh

Avinox
Wireless Controllers: Right and left sides

Avinox
Fast Charger: 12A/508W



Rear shock

FOX
Float X Performance (MY 2027)

2-position
lever, custom tune, LSR adjustment, 210×55mm, air shock



Fork

FOX
36 Performance (MY 2027)

160mm
travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset



Drivetrain

Rear
Derailleur: SRAM S1000 Eagle Transmission Derailleur

Chainring:
SRAM Eagle Transmission DM Chainring 38T for Avinox

Shift
Levers: SRAM AXS Pod Controller

Cassette:
SRAM XS-1270 Eagle Transmission Cassette 10-52T

Chain:
SRAM Eagle 70 Transmission Flattop Chain

Power
Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS
Extension Cord)

Crankset:
Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)



Brakes

Magura
Gustav Pro Hydraulic Disc Brake, 4-piston calipers

Magura
Sensor Rotor (203mm, 2.5mm)



Wheels

Amflow
XMA-30 Mullet Version

Front
Rim: Alloy, 29″, 30mm inner width, 32H, tubeless
ready

Rear
Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless
ready

Spokes:
SAPIM E-Light

Front
Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt

Rear
Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG



Tires

Front:
Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready

Rear:
Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready



Handlebar

Amflow
Enduro Alloy Handlebar

40mm
Rise, 800mm Width, 35mm Diameter

5-degree
upsweep, 9-degree backsweep



Grips

Amflow
Enduro Grip 2 Lock-on Grips



Stem

Amflow
Mountain Bike Split Stem

Length:
35mm

Clamping
Diameter: 35mm



Saddle

Amflow
Mountain Saddle



Dropper Post

Amflow
Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)

M/L
Frame: 190mm

XL
Frame: 210mm

XXL
Frame: 230mm
