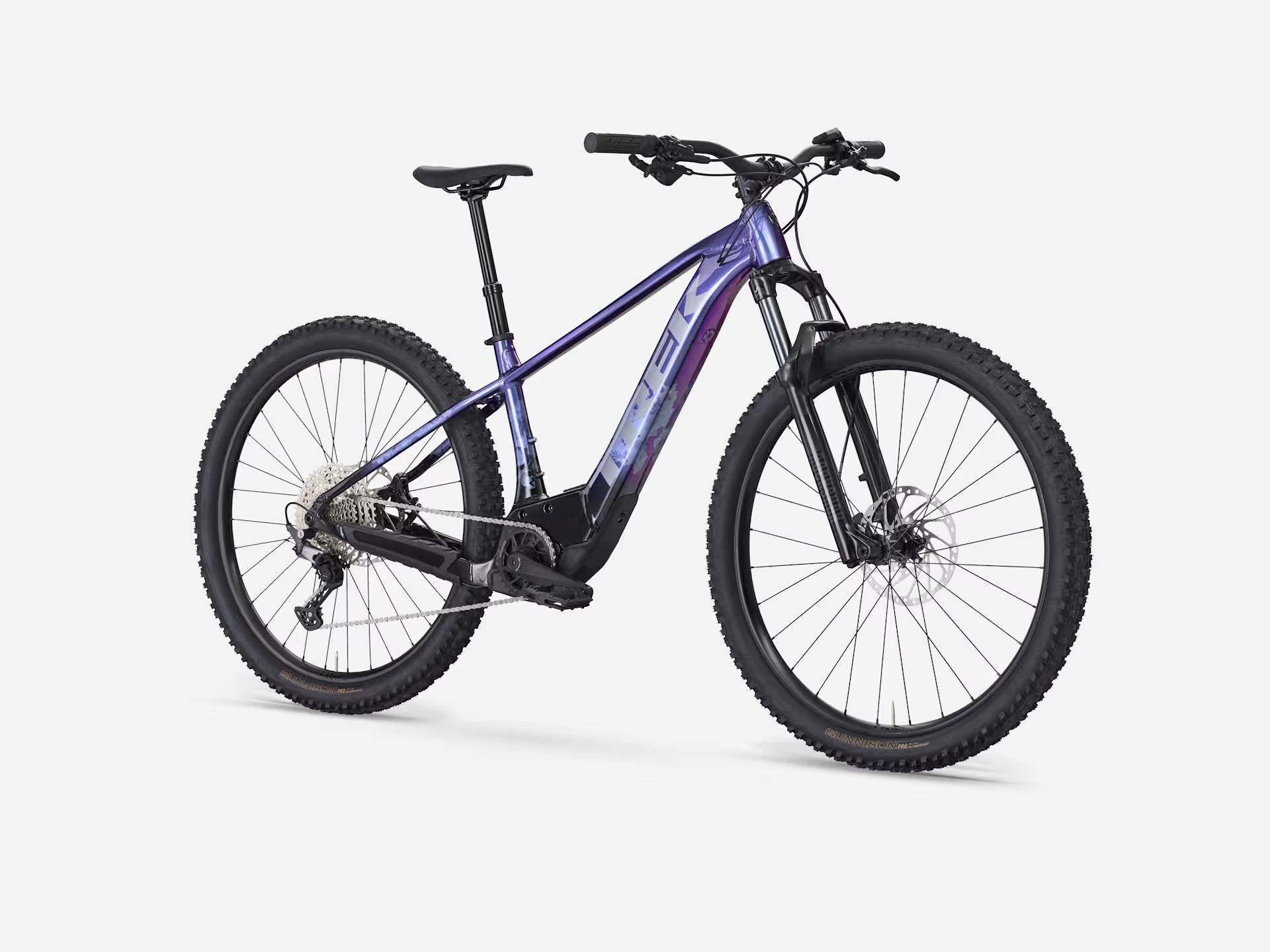

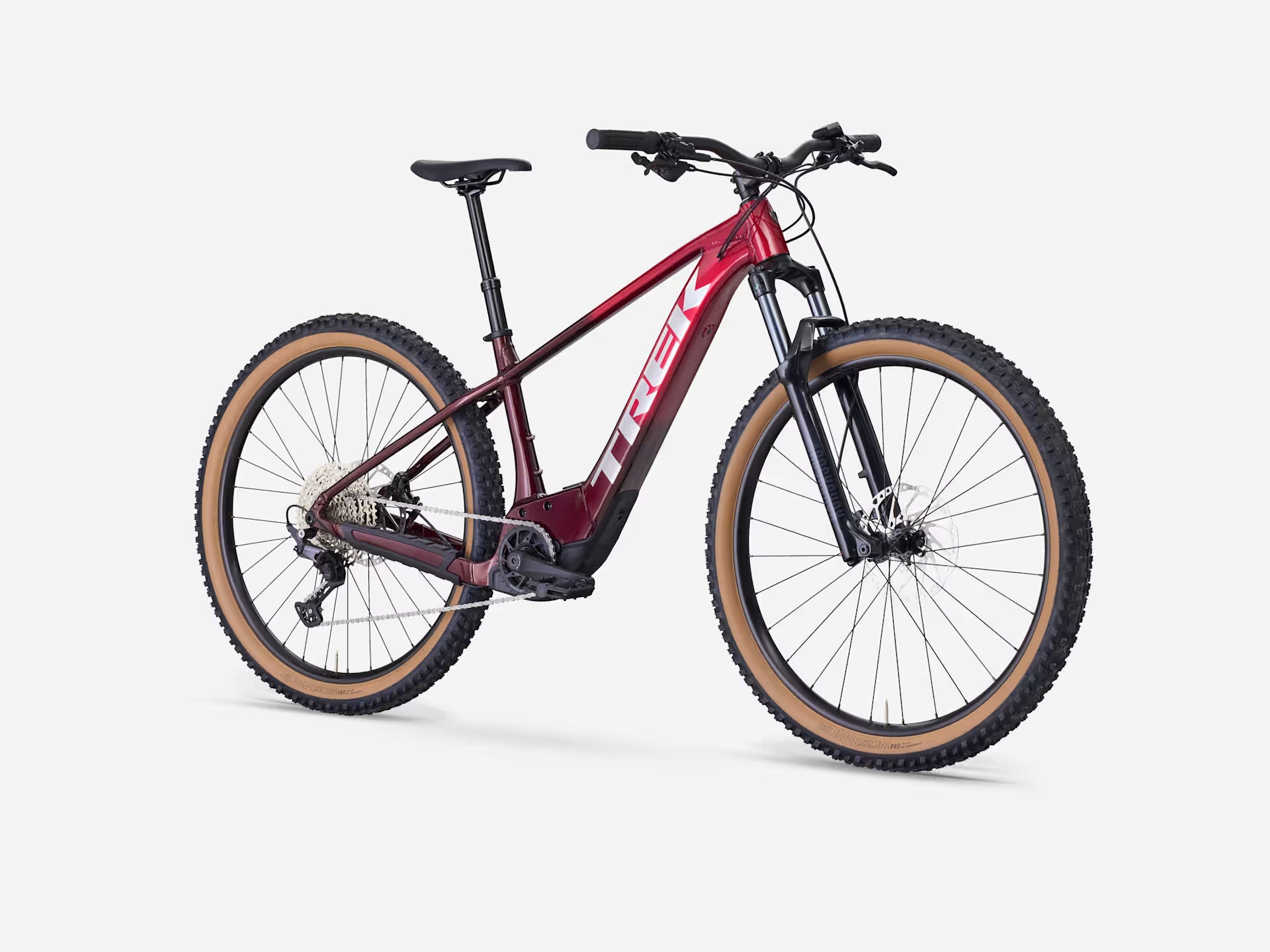

Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding farther, and doesn't break the bank, and a 120mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tires and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.

*Please note - spec applies to all sizes unless listed separately

Frameset

*FrameSize:XSAlpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axleSize:S , M , L , XLAlpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle*ForkSize:XSRockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 100mm travelSize:SRockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 120mm travelSize:M , L , XLRockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel

Wheels

Hub frontShimano TC500 alloy, centerlock, 110x15mm thru axleHub rearShimano TC500 alloy, centerlock, 148x12mm thru axleSkewer rearBontrager Switch thru axle, removable lever*RimSize:XS , S , M , L , XLBontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valveSize:XS , S , M , L , XLBontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve*TireSize:XS , SBontrager Gunnison Pro XR, Tubeless Ready, Inner Strength sidewalls, aramid bead, 60 tpi, 27.5x2.60"Size:M , L , XLBontrager Gunnison Pro XR, Tubeless Ready, Inner Strength sidewalls, aramid bead, 60 tpi, 29x2.60"Tire partBontrager TLR sealant, 180 ml/6 ozRim stripBontrager TLRMax tire sizeFrame: 29x2.60" (XS: 27.6x2.60"), Fork: See manufacturer

E-system

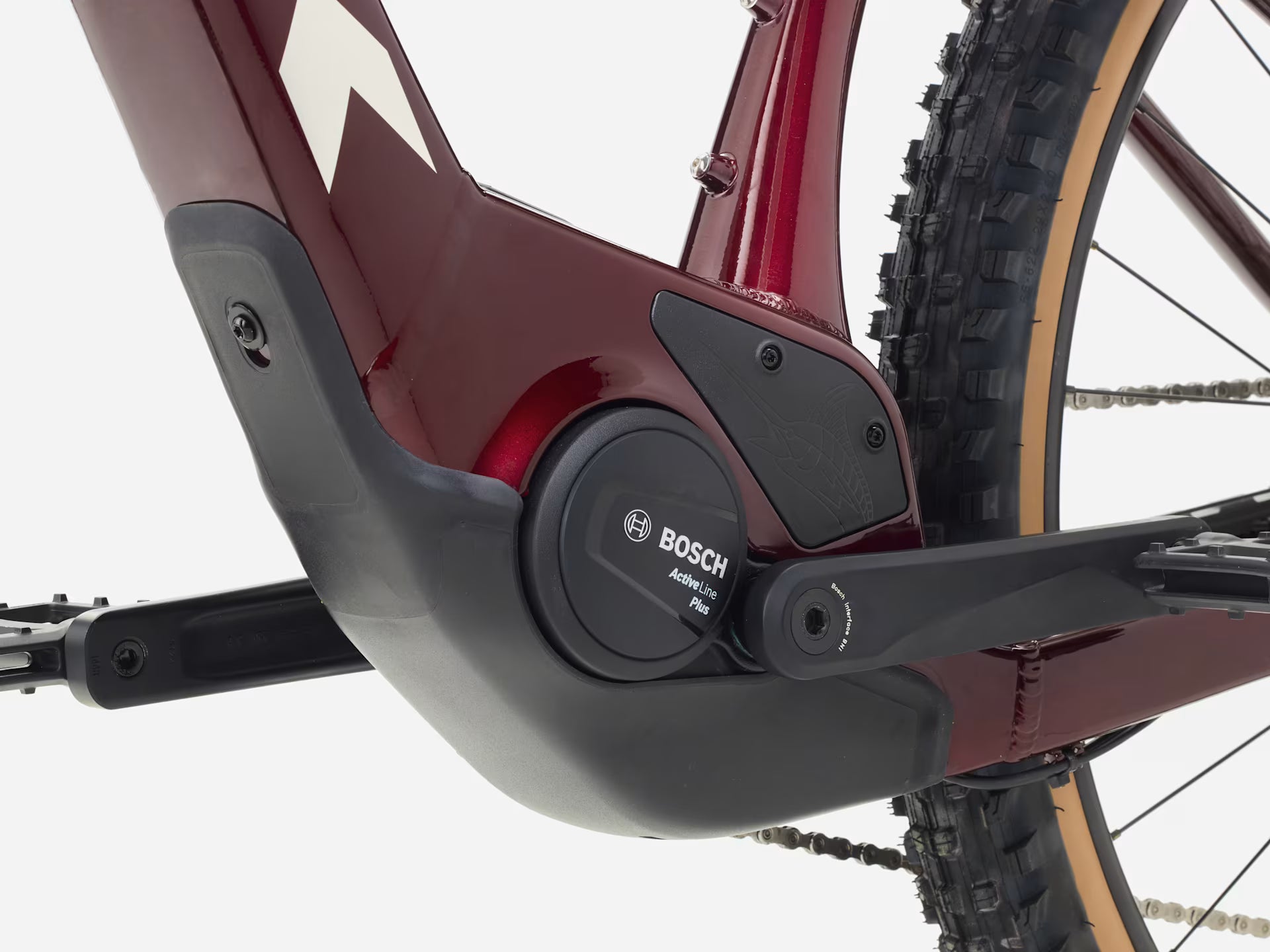

BatteryBosch CompactTube 400WhChargerBosch standard 2A, 110V, smart systemComputerBosch Purion 200MotorBosch Active Line Plus, 50 NmE-bike ClassificationClass 1

Drivetrain

ShifterShimano Deore M6100, 12 speedRear derailleurShimano Deore M6100, long cageCrankFSA CK-220, 165mm lengthChain ringFSA, 32T, steelCassetteShimano Deore M6100, 10-51, 12 speedChainShimano Deore M6100, 12 speedPedalVP-536 nylon platformMax chainring size1x: 36T, min 32T

Components

SaddleBontrager Verse P3, chromoly rails*SeatpostSize:XS , STranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm lengthSize:M , LTranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm lengthSize:XLTranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length*HandlebarSize:XS , SBontrager alloy, 31.8mm, 15mm rise, 720mm widthSize:M , L , XLBontrager Comp, alloy, 31.8mm, 40mm rise, 780mm widthGripsTrek Line Comp, nylon lock-on*StemSize:XS , SBontrager Comp, 31.8mm, 7 degree, 35mm lengthSize:M , LBontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm lengthSize:XLBontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm lengthHeadsetSemi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottomBrakeShimano 4-piston hydraulic disc, MT4100 lever, MT420 caliperBrake rotorShimano RT64, CentreLock, 203 mmRotor sizeMax brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight

WeightM - 21.89 kg / 48.26 lbs (with TLR sealant, no tubes)Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
