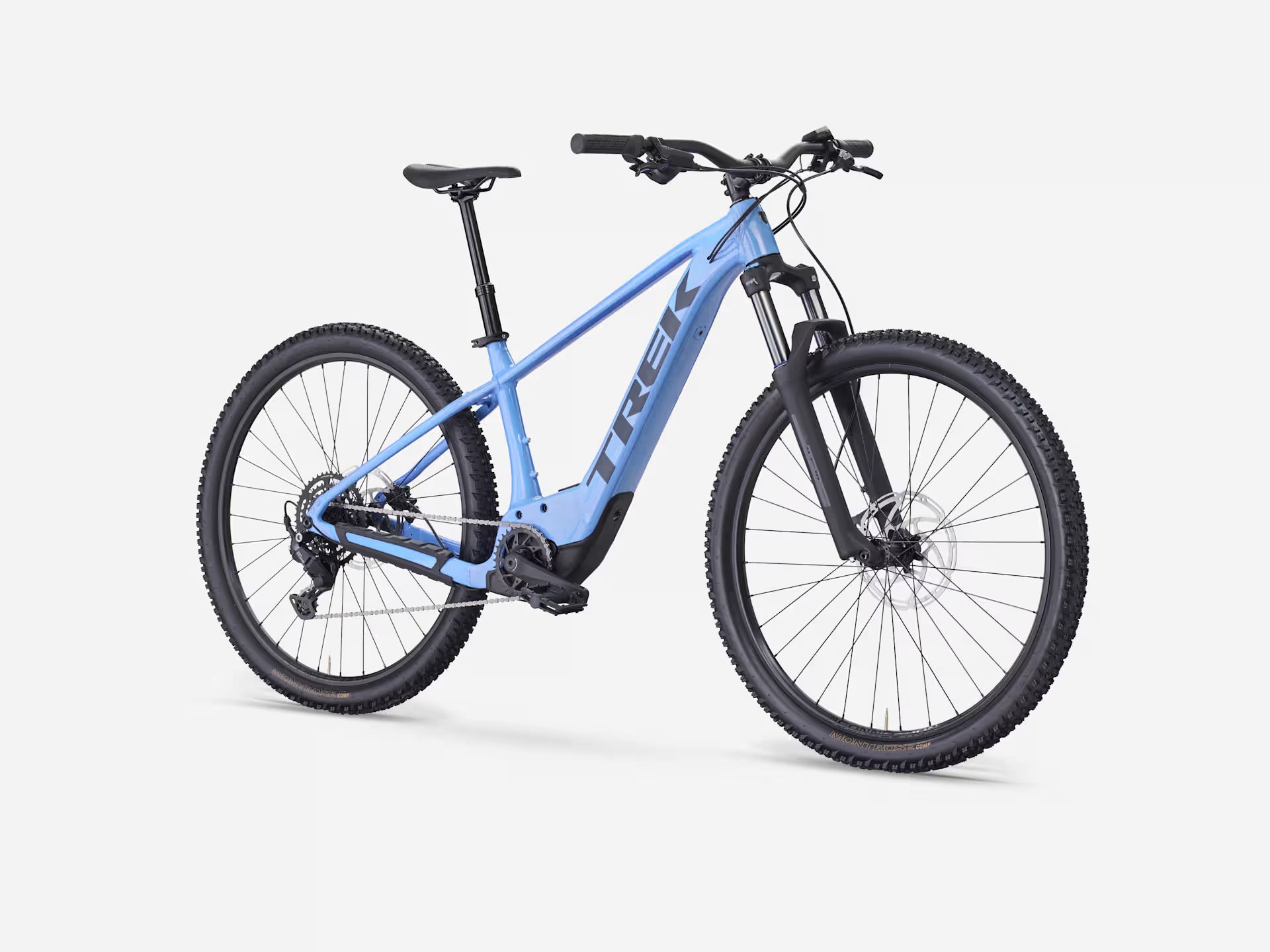

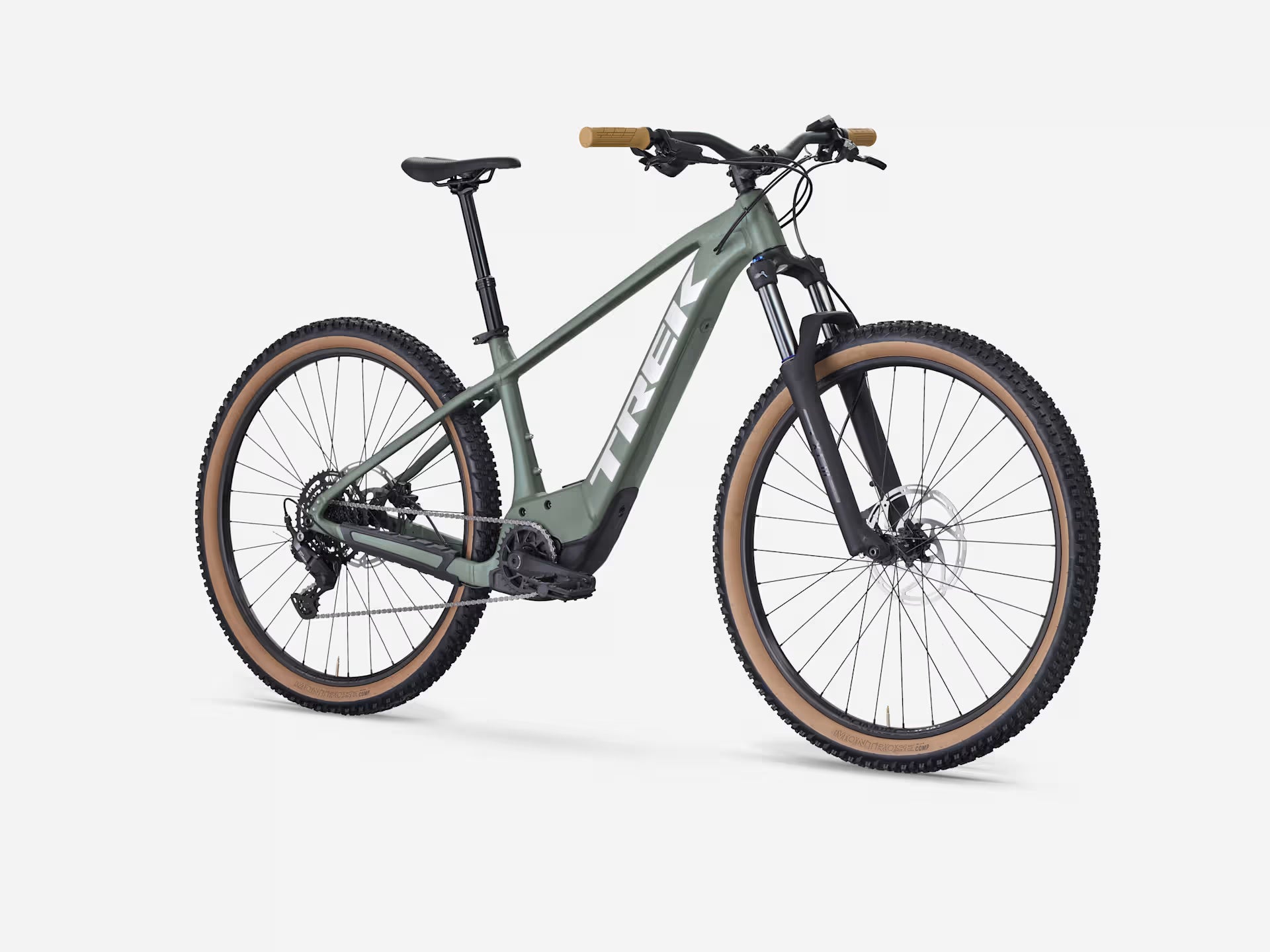

Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.

*Please note - spec applies to all sizes unless listed separately

Frameset

*FrameSize:XSAlpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axleSize:S , M , L , XLAlpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle*ForkSize:XSSR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travelSize:S , M , L , XLSR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel

Wheels

Hub frontShimano TC500 alloy, centerlock, 110x15mm thru axleHub rearShimano TC500 alloy, centerlock, 148x12mm thru axleSkewer rearBontrager Switch thru axle, removable leverRimBontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve*TireSize:XS , SBontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"Size:XS , SBontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''Size:M , L , XLBontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''Size:M , L , XLBontrager Montrose comp, wire bead, 30 tpi, 29x2.40"Max tire sizeFrame: 29x2.60" (XS: 27.6x2.60"), Fork: See manufacturer

E-system

BatteryBosch CompactTube 400WhChargerBosch standard 2A, 110V, smart systemComputerBosch Purion 200MotorBosch Active Line Plus, 50 NmE-bike ClassificationClass 1

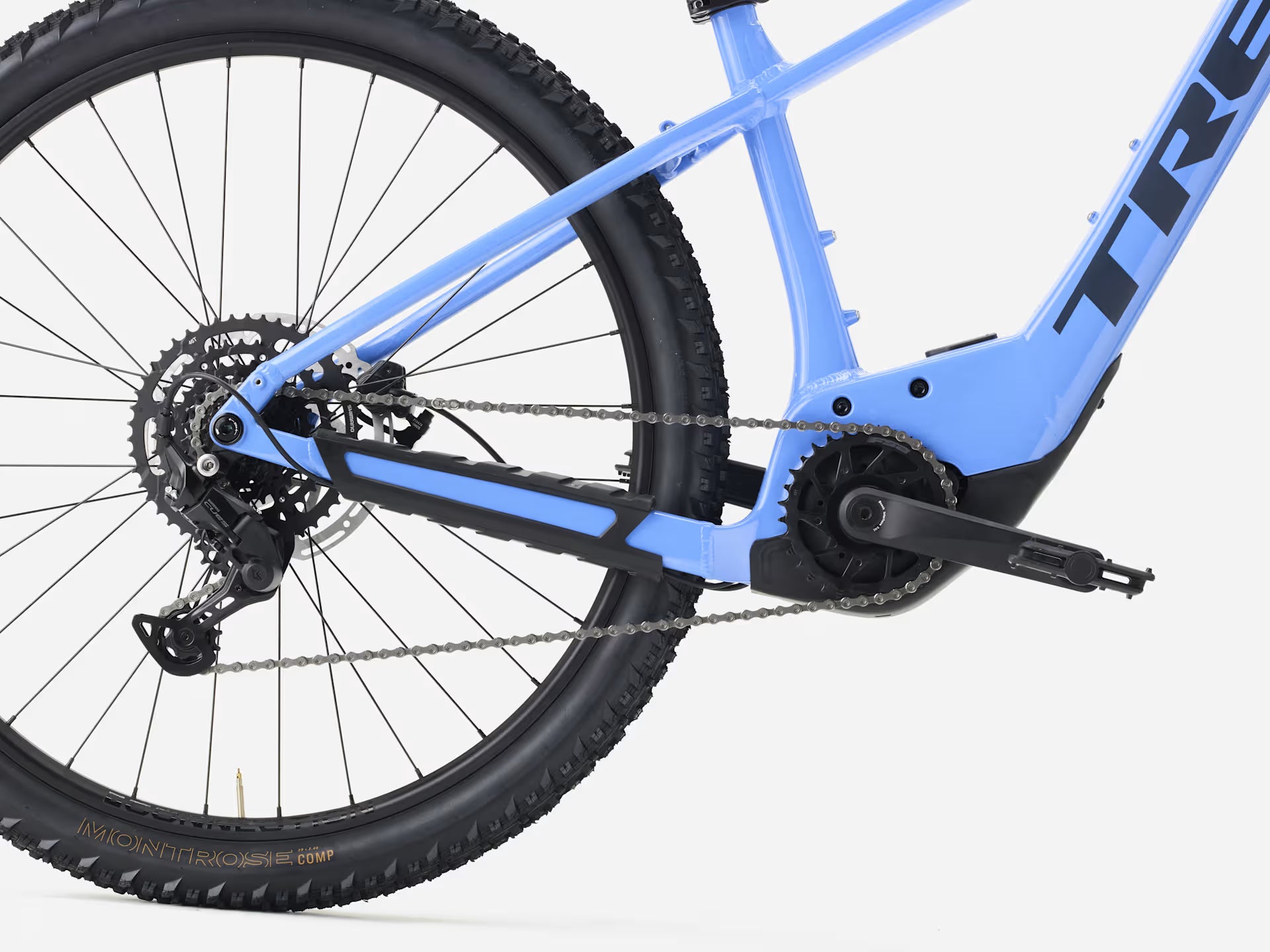

Drivetrain

ShifterShimano U4000, 9 speedRear derailleurShimano CUES U4000CrankFSA CK-220, 165mm lengthChain ringFSA, 32T, steelCassetteShimano LINKGLIDE LG300, 11-46, 9 speedChainShimano LG500PedalVP-536 nylon platformMax chainring size1x: 36T, min 32T

Components

SaddleBontrager Verse P3, steel rails*SeatpostSize:XS , STranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm lengthSize:M , LTranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm lengthSize:XLTranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length*HandlebarSize:XS , SBontrager alloy, 31.8mm, 15mm rise, 720mm widthSize:M , L , XLBontrager Comp, alloy, 31.8mm, 40mm rise, 780mm widthGripsTrek Line Comp, nylon lock-on*StemSize:XS , SBontrager Comp, 31.8mm, 7 degree, 35mm lengthSize:M , LBontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm lengthSize:XLBontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm lengthHeadsetSemi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottomBrake rotorTektro, centerlock, 203mmBrake SetTektro HD-M275 hydraulic discRotor sizeMax brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight

WeightM - 22.90 kg / 50.49 lbs (with tubes)Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
