Bosch Performance Line CX
Bosch's most powerful eMTB motor, tuned for natural, responsive assist on technical climbs.
Trek
View store information

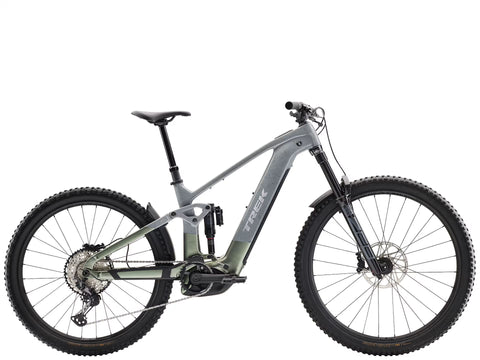

Rail+ 9.7 Gen 5
A carbon, full-power enduro e-MTB with RockShox suspension and a big 800 Wh battery.
Sale price
$7,999.00
Regular price
$10,999.00
Sold out
27% Off
Unit price
/
Shipping calculated at checkout.
Test ride in Red DeerTry it at our Gasoline Alley shop
Financing availableAsk us about monthly payments
Trek warrantyLimited lifetime frame warranty for the original owner
Local service & supportOur service team is right here in Red Deer
Pickup available at WeLive — Red Deer (Gasoline Alley)
Usually ready in 24 hours
Color: slate grey , Size: Large
Pickup available,
WeLive — Red Deer (Gasoline Alley)
Pickup available, usually ready in 24 hours
179 Leva Avenue
103B
Red Deer County AB T4E 1B9
Canada
Rail+ 9.7 is a carbon enduro e-MTB built for your biggest adventures. Its rugged OCLV Mountain Carbon frame delivers 160mm front and rear travel from a RockShox Zeb Select fork and Super Deluxe Select+ RT shock, making rowdy lines and root lattices a walk in the park. You get a Shimano XT/SLX drivetrain for 12-speed shifting you can count on, SRAM DB 8 4-piston brakes, a Bontrager Line dropper post, and Bontrager Line TLR tubeless-ready wheels for rolling into anything.
Motor
Bosch CX
Performance Line CX · smart system
Battery
800 Wh
Removable PowerTube
Speed
Class 1
Pedal assist to 32 km/h
Travel
160 / 160 mm
RockShox ZEB + Super Deluxe
Drivetrain
Shimano SLX / XT
12-speed
Weight
23.73 kg
Size M
Trek warrantyLimited lifetime frame warranty
Local serviceOur Red Deer service team
Test rides in Red DeerGasoline Alley
Financing availableAsk in store
Bosch smart system
Full power for the biggest climbs
The Bosch Performance Line CX motor and an 800 Wh battery give you the power and range to ride more trail in a day.
800 Wh PowerTube battery
Big capacity for long days. The Removable Integrated Battery (RIB 2.0) slides out for charging off the bike.

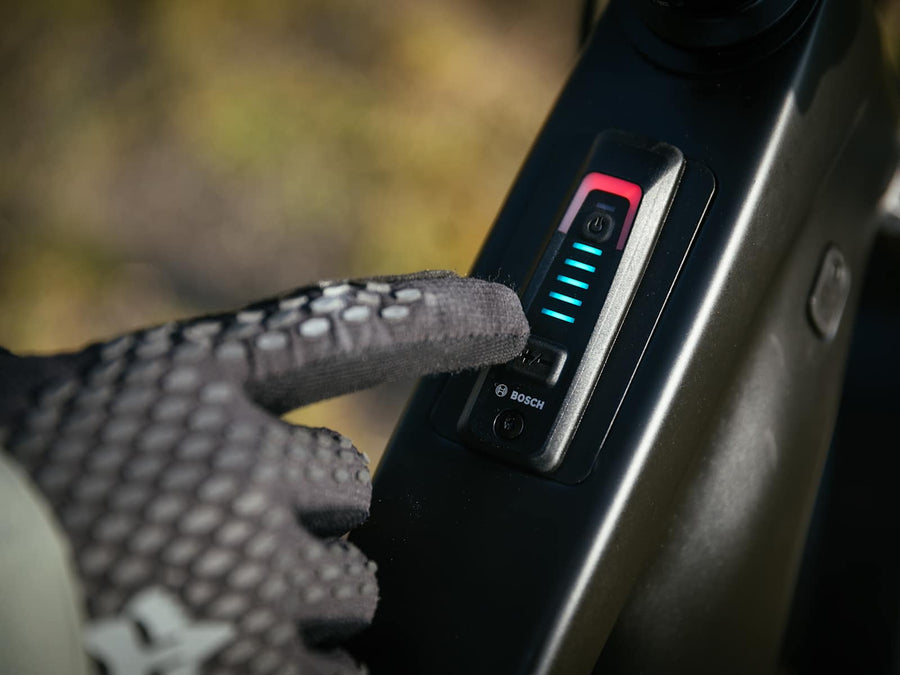

Kiox 400C + System Controller
A compact colour display and bar-mounted controller keep ride info and assist modes at your thumb.
Bosch smart system
Connect to the Bosch Flow app for ride stats, updates and custom assist settings.
Enduro-ready
160 mm of travel, front and rear
Long-travel suspension and mixed wheel sizes let you ride steep, rough trail with confidence.

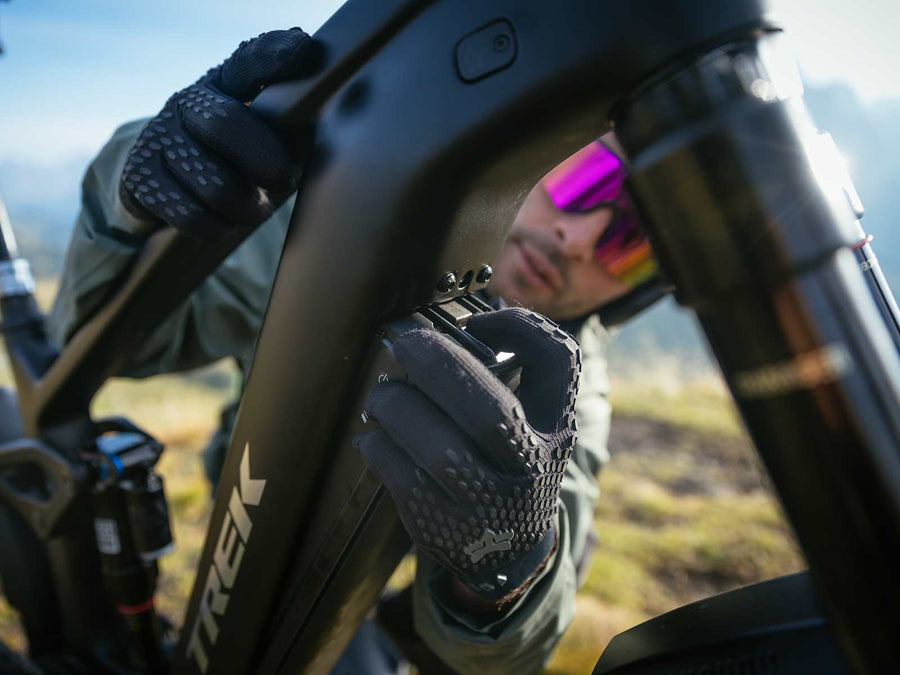

RockShox ZEB Select, 160 mm
Stiff, controlled and ready for big hits.
RockShox Super Deluxe Select RT
Supple on small bumps with support when you push hard.
Mullet wheels (M–XL)
A 29" front rolls over obstacles while a 27.5" rear keeps it playful. Size S rolls 27.5" front and rear.
OCLV Mountain Carbon frame
The same carbon frame as the Rail+ 9.8, at a more approachable build.
Built to last
Details that keep you riding
Protection, clean routing and trail-worthy parts mean less time fixing and more time riding.
Motor Armor
A tough guard protects the motor from rock strikes.
Guided internal routing
Clean, quiet cable routing that's easy for our service team to work on.

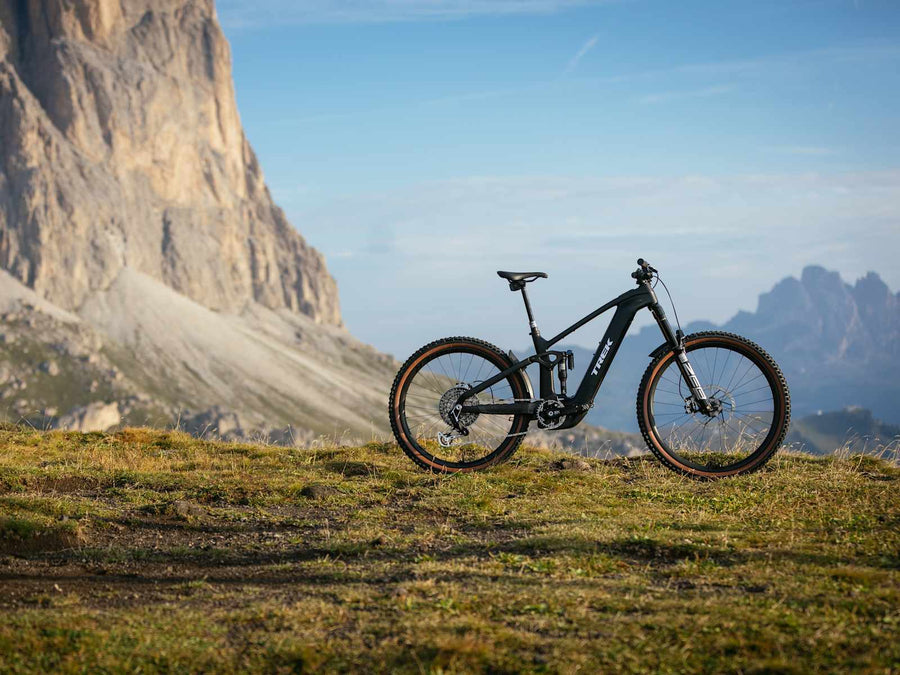

Bontrager Line dropper
Get the saddle out of the way on descents: up to 200 mm of drop depending on size.

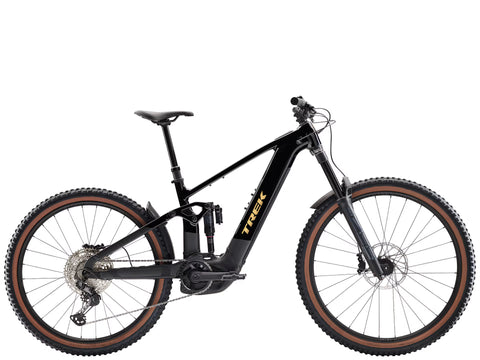

Rail+ 9.7 vs Rail+ 8
Carbon or aluminum?
The Rail+ 9.7 and Rail+ 8 share the Bosch CX motor, 800 Wh battery and 160 mm of travel. The 9.7 moves up to an OCLV carbon frame.
|
You're viewing
 Rail+ 9.7$7,999.00 | ||
|---|---|---|
| Frame | OCLV Mountain Carbon | Alpha Platinum Aluminum |
| Fork | RockShox ZEB Select, 160 mm | RockShox ZEB Select, 160 mm |
| Shock | RockShox Super Deluxe Select RT | RockShox Super Deluxe+ |
| Drivetrain | Shimano SLX / XT 12-speed | Shimano SLX / XT 12-speed |
| Brakes | SRAM DB 8 4-piston, 200 mm | SRAM DB 8 4-piston |
| Handlebar | Bontrager Line alloy | Alloy |
| Weight | 23.73 kg (size M) | Ask us |
| Motor & battery | Bosch CX · 800 Wh | Bosch CX · 800 Wh |
Size & fit
Let's get you fit
Enter your height to get a size recommendation, or come in and we'll fit you in person.
Find your size
Enter your height and we'll recommend a frame size.
| Size | Rider height | Inseam |
|---|---|---|
| Small | 5'1" – 5'5" (155–165 cm) | 29–31" (74–78 cm) |
| Medium | 5'5" – 5'10" (165–177 cm) | 31–33" (79–83 cm) |
| Large | 5'10" – 6'2" (177–188 cm) | 33–35" (84–89 cm) |
| X Large | 6'2" – 6'5" (188–195 cm) | 35–36" (89–91 cm) |
Sizing is a guide. Reach, arm length and riding style matter too, so a quick test ride is the best way to confirm.
Between sizes or unsure? Book a fitting or test ride and we'll help you choose.
Geometry
| Frame size | S | M | L | XL |
|---|---|---|---|---|
| Frame size | 15.5" | 17.5" | 19.5" | 21.5" |
| A – Seat tube | 380 mm | 410 mm | 435 mm | 470 mm |
| Effective seat tube angle | 77.9° | 77.7° | 77.5° | 77.4° |
| C – Head tube length | 100 mm | 100 mm | 120 mm | 145 mm |
| D – Head angle | 65.0° | 65.0° | 65.0° | 64.9° |
| E – Effective top tube | 562 mm | 591 mm | 638 mm | 669 mm |
| G – Bottom bracket drop | 12 mm | 18 mm | 17 mm | 17 mm |
| H – Chainstay length | 446 mm | 446 mm | 446 mm | 446 mm |
| I – Fork offset | 43 mm | 43 mm | 43 mm | 43 mm |
| J – Trail | 119 mm | 127 mm | 127 mm | 127 mm |
| K – Wheelbase | 1201 mm | 1229 mm | 1277 mm | 1313 mm |
| L – Standover | 763 mm | 775 mm | 775 mm | 798 mm |
| M – Reach | 435 mm | 455 mm | 495 mm | 520 mm |
| N – Stack | 594 mm | 627 mm | 645 mm | 668 mm |
| Wheel size | 27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Specifications
Full specs
General
- Weight
- 23.73 kg (52.32 lb), size M
- Max total weight
- 136 kg (300 lb), bike + rider + cargo
- Fender
- Trek custom fender
Frameset
- Frame
- OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travel
- Fork
- RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 160mm travel
- Shock
- RockShox Super Deluxe Select RT, 205mm x 65mm
Wheels
- Wheel front
- Size S: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5'' / Sizes M, L, XL: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
- Wheel rear
- Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 27.5''
- Tire
- Sizes S, M, L, XL: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" / Sizes M, L, XL: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
- Max tire size
- Frame: 27.5x2.60", Fork: See manufacturer
E-bike system
- Battery
- Bosch PowerTube 800Wh, smart system
- Controller
- Bosch System Controller Kiox400C, smart system
- Motor
- Bosch Performance Line CX
- E-bike Classification
- Class 1
- Max assist speed
- 32 km/h
Drivetrain
- Shifter
- Shimano SLX M7100, 12 speed
- Rear derailleur
- Shimano XT M8100, long cage
- Crank arm
- E*thirteen E*spec Plus, 160mm length
- Chain ring
- E*thirteen, 34T, steel
- Cassette
- Shimano SLX M7100, 10-51T, 12 speed
Components
- Saddle
- Bontrager Verse P3, chromoly rails
- Seatpost
- Size S: Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length / Sizes M, L, XL: Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length / Sizes L, XL: Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 510mm length
- Handlebar
- Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
- Stem
- Bontrager Elite, 35mm, 0 degree, 45mm length
- Brake
- SRAM DB 8 4-piston hydraulic disc
- Brake rotor
- SRAM CenterLine, 6-bolt, round edge, 200mm
Specs from Trek and subject to change. Weights are for a size M bike.
Gear up
Compatible accessories
Protect yourself and keep your ride dialled.
Test rides in Red Deer
Ride it before you buy it
Come see the Rail+ 9.7 at our Gasoline Alley shop. We'll help you pick the right size, set it up for you and get you out for a test ride.
