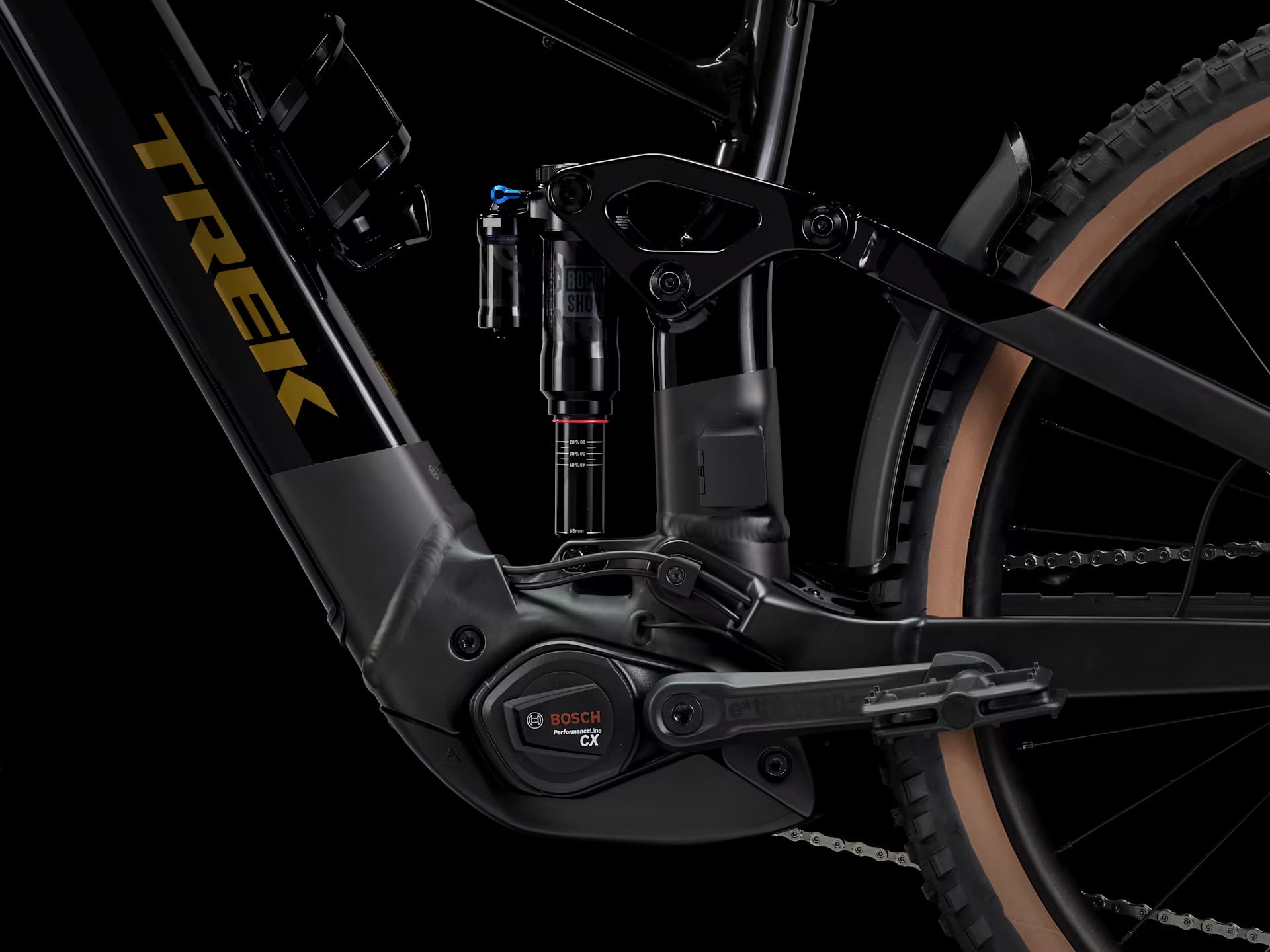

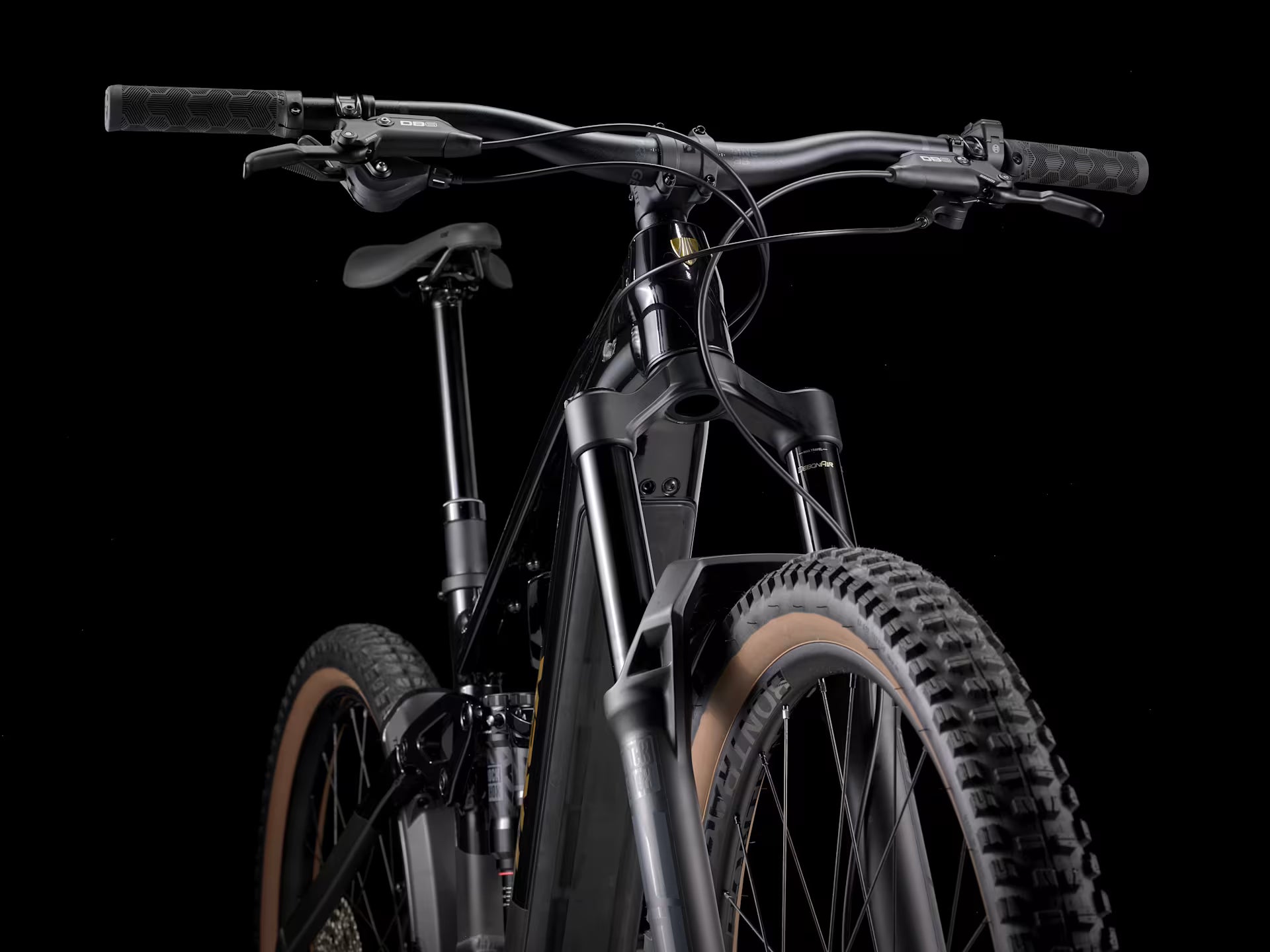

Rail+ 8 is an aluminum enduro e-bike with big power and tons of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminum frame paired with a RockShox Super Deluxe+ shock and ZEB Select fork (160mm front/rear) for making quick work of chunky backcountry rock gardens. You get the smooth-shifting performance of a Shimano XT/SLX drivetrain, stop-on-a-dime control from SRAM DB 8 4-piston disc brakes, a Bontrager Line dropper post, and tubeless-ready Bontrager Line TLR 30 wheels.

Frameset

FrameAlpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travelForkRockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 160mm travelShockRockShox Super Deluxe Select RT, 205mm x 65mm

Wheels

*Wheel frontSize:SBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''Size:M, L, XLBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''Wheel rearBontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 27.5''Skewer rearBontrager Switch thru axle, removable lever*TireSize:S, M, L, XLBontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"Size:M, L, XLBontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"Tire partBontrager TLR sealant, 180 ml/6 ozMax tire sizeFrame: 27.5x2.60", Fork: See manufacturer

E-system

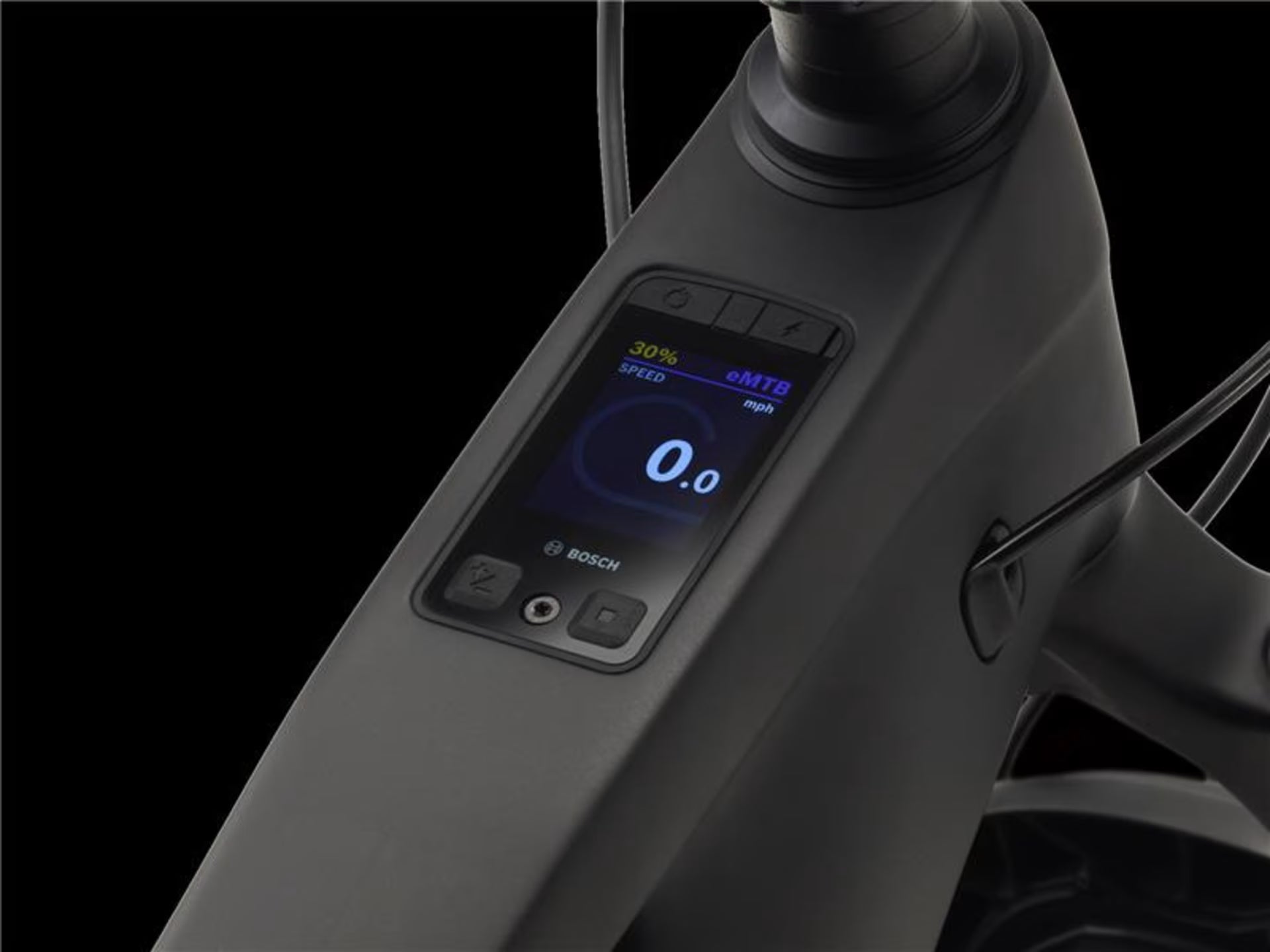

BatteryBosch PowerTube 800Wh, smart systemChargerBosch standard 4A, 110V, smart systemControllerBosch System Controller Kiox400C, smart systemMotorBosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)E-bike ClassificationClass 1

Drivetrain

ShifterShimano SLX M7100, 12 speedRear derailleurShimano XT M8100, long cageCrank armE*thirteen E*spec Plus, 160mm lengthCassetteShimano Deore M6100, 10-51, 12 speedChainShimano SLX M7100, 12 speedPedalVP-536 nylon platformMax chainring size1x: 36T

Components

SaddleBontrager Verse P3, steel rails*SeatpostSize:SBontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm lengthSize:M, L, XLBontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm lengthSize:L, XLBontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm lengthHandlebarBontrager Line, alloy, 35mm, 27.5mm rise, 780mm widthGripsBontrager XR Trail Comp, nylon lock-onStemBontrager Elite, 35mm, 0 degree, 45mm lengthHeadsetIntegrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatibleBrakeSRAM DB 8 4-piston hydraulic discBrake rotorSRAM CenterLine, 6-bolt, round edge, 200mmRotor sizeMax brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer

Accessories

FenderTrek custom fender

Weight

WeightM - 25.08 kg / 55.3 lbs (with TLR sealant, no tubes)Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
