Bosch Active Line Plus
50 Nm of smooth, quiet assist that feels natural on trail and path.
Trek
View store information

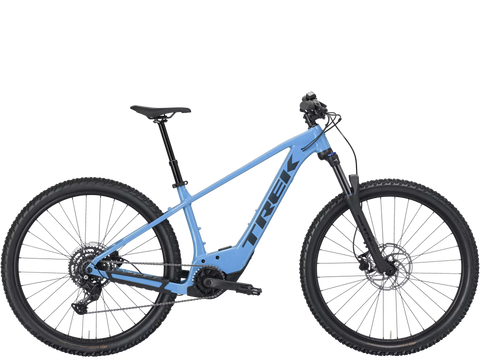

Marlin+ 6 Electric Mountain Bike
An easy-riding electric hardtail for trail, gravel and everyday adventures.
Sale price
$3,299.00
Regular price
$3,599.00
Sold out
8% Off
Unit price
/
Shipping calculated at checkout.
Test ride in Red DeerTry it at our Gasoline Alley shop
Financing availableAsk us about monthly payments
Trek warrantyLimited lifetime frame warranty for the original owner
Local service & supportOur service team is right here in Red Deer
Pickup available at WeLive — Red Deer (Gasoline Alley)
Usually ready in 24 hours
Color: Fjord Blue , Size: M
Pickup available,
WeLive — Red Deer (Gasoline Alley)
Pickup available, usually ready in 24 hours
179 Leva Avenue
103B
Red Deer County AB T4E 1B9
Canada
Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.
Motor
Bosch Active Line Plus
50 Nm
Battery
400 Wh
Integrated CompactTube
Speed
Class 1
Pedal assist to 32 km/h
Fork
120 mm air
XS: 100 mm
Drivetrain
Shimano CUES 9-speed
Weight
22.90 kg
Size M
Trek warrantyLimited lifetime frame warranty
Local serviceOur Red Deer service team
Test rides in Red DeerGasoline Alley
Financing availableAsk in store
Bosch power
Your first e-MTB, done right
The Bosch Active Line Plus motor gives smooth, quiet support so you can ride further and climb more, while the bike stays easy to handle.
400 Wh CompactTube battery
Integrated into the downtube for a clean look and balanced handling.
Bosch Purion 200
A compact bar-mounted display for speed, assist and battery at a glance.
Trail ready
Built for singletrack and everything in between
An Alpha Gold Aluminum hardtail frame with trail-ready parts and mounts for racks, fenders and a kickstand.
SR Suntour XCM 34 air fork
120 mm of travel (100 mm on XS) with lockout for smooth pavement.
Shimano CUES 9-speed
Durable LINKGLIDE shifting with a wide 11–46 range.
Hydraulic disc brakes
Tektro hydraulic brakes with big 203 mm rotors for confident stopping.
Dropper seatpost
Lower the saddle for descents at the push of a lever.
Size-specific wheels
Sizes XS and S roll 27.5" wheels, M–XL roll 29", so every rider gets the right fit.

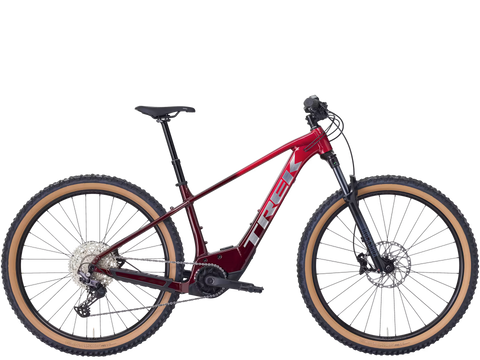

Marlin+ 6 vs Marlin+ 8
Which Marlin+ is right for you?
Both use the Bosch Active Line Plus motor, a 400 Wh battery and a dropper post. The Marlin+ 8 adds a RockShox fork, 12-speed Deore, 4-piston brakes and tubeless-ready tires.
|
You're viewing
 Marlin+ 6$3,299.00 | ||
|---|---|---|
| Fork | SR Suntour XCM 34 air, 120 mm | RockShox Recon Silver RL, 120 mm |
| Drivetrain | Shimano CUES 9-speed | Shimano Deore 12-speed |
| Brakes | Tektro 2-piston hydraulic | Shimano 4-piston hydraulic |
| Tires | Bontrager Montrose Comp 2.4" | Bontrager Gunnison Pro XR 2.6", tubeless ready |
| Motor & battery | Bosch Active Line Plus · 400 Wh | Bosch Active Line Plus · 400 Wh |
| Weight | 22.90 kg (size M) | 21.89 kg (size M) |
Size & fit
Let's get you fit
Enter your height to get a size recommendation, or come in and we'll fit you in person.
Find your size
Enter your height and we'll recommend a frame size.
| Size | Rider height | Inseam |
|---|---|---|
| XS | 4'9" – 5'1" (145–155 cm) | 27–29" (69–73 cm) |
| S | 5'1" – 5'5" (155–165 cm) | 29–31" (74–78 cm) |
| M | 5'5" – 5'10" (165–177 cm) | 31–33" (79–83 cm) |
| L | 5'10" – 6'2" (177–188 cm) | 33–35" (84–89 cm) |
| XL | 6'2" – 6'5" (188–195 cm) | 35–36" (89–91 cm) |
Sizing is a guide. Reach, arm length and riding style matter too, so a quick test ride is the best way to confirm.
Between sizes or unsure? Book a fitting or test ride and we'll help you choose.
Geometry
| Frame size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| A – Seat tube | 340 mm | 370 mm | 420 mm | 450 mm | 500 mm |
| Effective seat tube angle | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
| C – Head tube length | 90 mm | 100 mm | 105 mm | 115 mm | 135 mm |
| D – Head angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| E – Effective top tube | 551 mm | 584 mm | 620 mm | 652 mm | 682 mm |
| G – Bottom bracket drop | 45 mm | 45 mm | 60 mm | 60 mm | 60 mm |
| H – Chainstay length | 470 mm | 470 mm | 485 mm | 485 mm | 485 mm |
| I – Fork offset | 46 mm | 46 mm | 42 mm | 42 mm | 42 mm |
| J – Trail | 110 mm | 110 mm | 114 mm | 114 mm | 114 mm |
| K – Wheelbase | 1129 mm | 1166 mm | 1218 mm | 1251 mm | 1284 mm |
| L – Standover | 678 mm | 710 mm | 760 mm | 771 mm | 775 mm |
| M – Reach | 390 mm | 415 mm | 440 mm | 470 mm | 495 mm |
| N – Stack | 563 mm | 590 mm | 626 mm | 635 mm | 653 mm |
| Wheel size | 27.5" | 27.5" | 29" | 29" | 29" |
Specifications
Full specs
General
- Weight
- 22.90 kg (50.49 lb), size M
- Max total weight
- 136 kg (300 lb), bike + rider + cargo
Frameset
- Frame
- Size XS: Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle / Sizes S, M, L, XL: Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
- Fork
- Size XS: SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel / Sizes S, M, L, XL: SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel
Wheels
- Rim
- Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
- Tire
- Sizes XS, S: Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40" / Sizes M, L, XL: Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
- Max tire size
- Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer
E-bike system
- Battery
- Bosch CompactTube 400Wh
- Computer
- Bosch Purion 200
- Motor
- Bosch Active Line Plus, 50 Nm
- E-bike Classification
- Class 1
- Max assist speed
- 32 km/h
Drivetrain
- Shifter
- Shimano U4000, 9 speed
- Rear derailleur
- Shimano CUES U4000
- Crank
- FSA CK-220, 165mm length
- Chain ring
- FSA, 32T, steel
- Cassette
- Shimano LINKGLIDE LG300, 11-46, 9 speed
Components
- Saddle
- Bontrager Verse P3, steel rails
- Seatpost
- Sizes XS, S: TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length / Sizes M, L: TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length / Size XL: TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
- Handlebar
- Sizes XS, S: Bontrager alloy, 31.8mm, 15mm rise, 720mm width / Sizes M, L, XL: Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
- Stem
- Sizes XS, S: Bontrager Comp, 31.8mm, 7 degree, 35mm length / Sizes M, L: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length / Size XL: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
- Brake
- Tektro HD-M275 hydraulic disc
- Brake rotor
- Tektro, centerlock, 203mm
Specs from Trek and subject to change. Weights are for a size M bike.
Gear up
Compatible accessories
Protect yourself and keep your ride dialled.
Test rides in Red Deer
Ride it before you buy it
Come see the Marlin+ 6 at our Gasoline Alley shop. We'll help you pick the right size, set it up for you and get you out for a test ride.
