Name: Domane+ ALR 6 AXS
Brand: Trek
SKU: 5342618
Price: 6299.99 CAD
Availability: OutOfStock

Trek

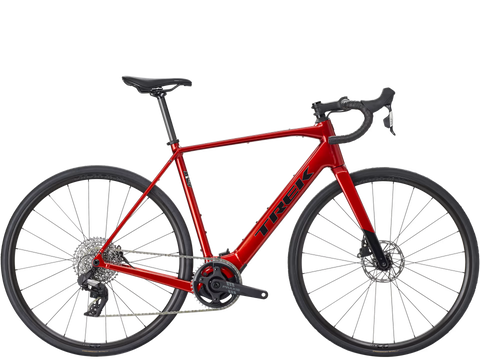

Domane+ ALR 6 AXS

A lightweight e-road bike that rides like a regular road bike, with a quiet boost for hills and headwinds.

$5,599.00 $6,299.99 11% Off Shipping calculated at checkout.

Size

Product variants

Not sure of your size? Use our fit tool

Test ride in Red DeerTry it at our Gasoline Alley shop

Financing availableAsk us about monthly payments

Trek warrantyLimited lifetime frame warranty for the original owner

Local service & supportOur service team is right here in Red Deer

Pickup available at WeLive — Red Deer (Gasoline Alley)

Usually ready in 24 hours

View store information

Motor

TQ HPR60

60 Nm · near-silent

Battery

360 Wh

Integrated

Speed

Class 1

Pedal assist to 32 km/h

Drivetrain

SRAM Apex AXS

Wireless 12-speed

Tire clearance

Up to 40 mm

35 mm with fenders

Weight

14.24 kg

Size ML

Trek warrantyLimited lifetime frame warranty

Local serviceOur Red Deer service team

Test rides in Red DeerGasoline Alley

Financing availableAsk in store

Natural assist

Ride further with the group

The TQ HPR60 system is light, quiet and hidden in the frame, so the Domane+ feels like a road bike first.

TQ HPR60 motor

60 Nm of quiet, natural-feeling assist that's hidden in the frame.

360 Wh integrated battery

Enough for long rides, with a clean look that doesn't shout e-bike.

Top-tube LED display

Bluetooth and ANT+ connectivity for your bike computer and apps.

Endurance road

Comfortable, capable and ready for anything

A 300 Series Alpha Aluminum frame with a carbon fork, endurance geometry and room for wider tires.

SRAM Apex AXS wireless

12-speed wireless shifting with a wide 11–44 range for steep climbs.

Room for 40 mm tires

Run wider tires for comfort and grip on rough roads and gravel.

Hidden fender mounts

Add fenders for wet-weather riding and commuting.

Rack and frame bag mounts

Carry more for longer rides.

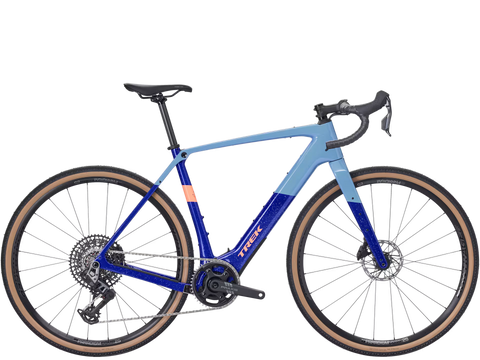

Domane+ ALR 6 vs Checkpoint+ SL 6

Road or gravel?

Both use the TQ HPR60 motor and 360 Wh battery. The Domane+ ALR is built for the road; the Checkpoint+ SL is a carbon gravel bike with wider tires and a mullet drivetrain.

	You're viewingDomane+ ALR 6$5,599.00	Checkpoint+ SL 6$6,999.99View this bike →
Best for	Road, endurance, fitness	Gravel, adventure, mixed terrain
Frame	300 Series Alpha Aluminum	500 Series OCLV Carbon, IsoSpeed
Drivetrain	SRAM Apex AXS, 11–44	SRAM Rival AXS / GX Eagle AXS, 10–52
Stock tires	32 mm road	42 mm gravel
Max tire size	40 mm	50 mm
Weight	14.24 kg (size ML)	13.76 kg (size ML)

Size & fit

Let's get you fit

Enter your height to get a size recommendation, or come in and we'll fit you in person.

Find your size

Enter your height and we'll recommend a frame size.

Feet Inches

Size	Rider height	Inseam
XS	4'8" – 5'2" (143–158 cm)	26–29" (67–74 cm)
S	5'2" – 5'4" (158–162 cm)	29–30" (74–76 cm)
M	5'4" – 5'8" (162–173 cm)	30–32" (76–81 cm)
ML	5'8" – 5'10" (173–179 cm)	32–33" (81–84 cm)
L	5'10" – 6'2" (179–188 cm)	33–35" (84–88 cm)
XL	6'2" – 6'6" (188–199 cm)	35–39" (88–100 cm)

Sizing is a guide. Reach, arm length and riding style matter too, so a quick test ride is the best way to confirm.

Between sizes or unsure? Book a fitting or test ride and we'll help you choose.

Geometry

Frame size	XS	S	M	ML	L	XL
A – Seat tube	444 mm	476 mm	500 mm	533 mm	553 mm	593 mm
C – Head tube length	106 mm	139 mm	159 mm	180 mm	202 mm	236 mm
D – Head angle	71.3°	71.1°	71.5°	71.9°	72.0°	72.1°
E – Effective top tube	522 mm	532 mm	543 mm	555 mm	564 mm	577 mm
G – Bottom bracket drop	80 mm	80 mm	80 mm	78 mm	78 mm	75 mm
H – Chainstay length	430 mm	430 mm	430 mm	430 mm	430 mm	430 mm
I – Fork offset	53 mm	53 mm	53 mm	48 mm	48 mm	48 mm
J – Trail	64 mm	66 mm	63 mm	66 mm	65 mm	64 mm
K – Wheelbase	997 mm	1012 mm	1018 mm	1020 mm	1029 mm	1043 mm
L – Standover	721 mm	753 mm	775 mm	805 mm	826 mm	863 mm
M – Reach	368 mm	371 mm	374 mm	377 mm	380 mm	384 mm
N – Stack	524 mm	555 mm	575 mm	596 mm	618 mm	648 mm
Wheel size	700c	700c	700c	700c	700c	700c

Specifications

Full specs

General

Weight: 14.24 kg (31.4 lb), size ML
Max total weight: 125 kg (275 lb), bike + rider + cargo

Frameset

Frame: 300 Series Alpha Aluminum, TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, UDH, 142x12mm chamfered thru axle
Fork: Domane+ carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle

E-bike system

Battery: TQ 360Wh
Computer: TQ colour LED display with Bluetooth & ANT+ connectivity
Motor: TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
E-bike Classification: Class 1
Max assist speed: 32 km/h

Drivetrain

Shifter: SRAM Apex AXS, 12 speed
Rear derailleur: SRAM Apex XPLR eTap AXS, 44T max cog
Crank: Sizes XS, S: Praxis Alloy, 165mm length / Sizes M, ML: Praxis Alloy, 170mm length / Sizes L, XL: Praxis Alloy, 172.5mm length
Cassette: SRAM XPLR PG-1231, 11-44, 12 speed

Wheels

Skewer front: Bontrager Switch chamfered thru axle
Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Tire: Bontrager Kwaremont Pro GR, tubeless ready, folding bead, dual compound, 120 tpi, 700x32mm
Max tire size: 40mm without fenders, 35mm with fenders

Components

Saddle: Verse Short Comp, steel rails, 145mm width
Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Handlebar: Size XS: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width / Size S: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width / Sizes M, ML: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width / Sizes L, XL: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar tape: Trek EcoTack
Stem: Size XS: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length / Size S: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length / Size M: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length / Sizes ML, L: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length / Size XL: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Brake: SRAM Apex AXS hydraulic disc, flat mount
Brake rotor: SRAM Paceline, rounded, centerlock, 160mm

Specs from Trek and subject to change. Weights are for the size listed.
