YOUR BACKCOUNTRY ADVENTURE, AMPLIFIED.

If your idea of a perfect Saturday is 80 kilometers of gravel, 400 meters of climbing, and a trail that doesn’t show up on Google Maps—the Checkpoint+ SL 6 AXS is your ride. It takes everything we love about the legendary Checkpoint gravel platform and adds a whisper-quiet "virtual tailwind" to help you push past your previous limits.

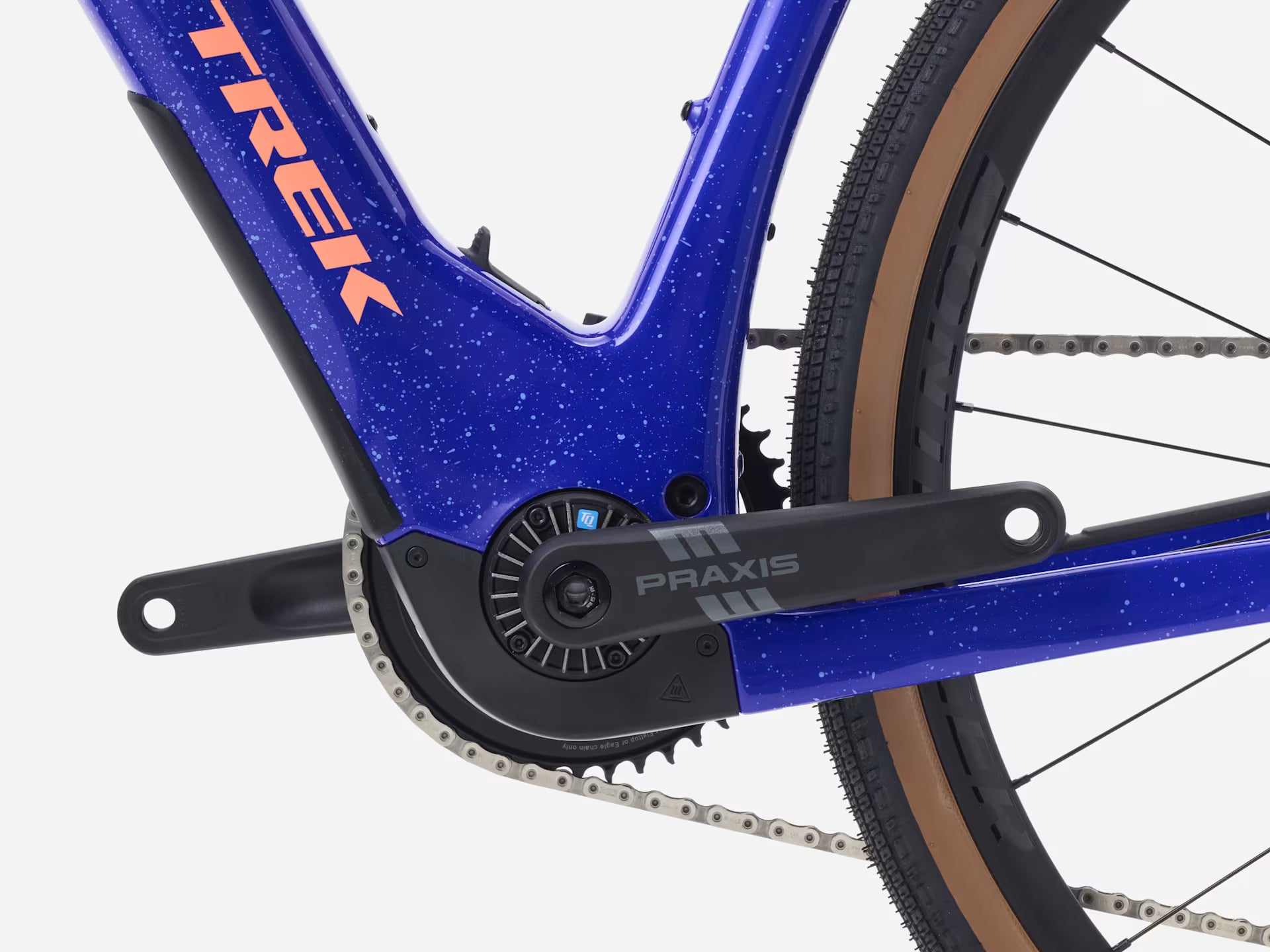

The Invisible Advantage: TQ HPR60 Motor

Most e-bikes look and sound like, well, e-bikes. The Checkpoint+ is different. The TQ harmonic pinring motor is tucked so neatly into the bottom bracket that most people won't even know it's there. It delivers 50Nm of torque that feels entirely natural—it doesn't surge or lurch; it just makes you feel like the strongest version of yourself on every climb.

Electronic Precision: SRAM GX AXS Transmission

When you’re deep in the Alberta backcountry, you need gear that just works. The 12-speed SRAM GX AXS wireless drivetrain is built for the grit. It provides crisp, clean shifts even when the motor is under load or the cassette is covered in Red Deer River valley mud. No cables to stretch, no housing to gunk up—just perfect shifting, every time.

The WeLive Breakdown:

• The Frame: 500 Series OCLV Carbon. It’s light, dampens road vibration, and features internal cable routing for a sleek, bag-ready setup.
• The Range: The internal 360Wh battery is optimized for long hauls, but if you're planning a massive day, it’s compatible with the TQ Range Extender for those "just one more ridge" moments.
• The "Dirty" Tech: Massive tire clearance allows you to run beefy gravel rubber for maximum traction on loose surfaces.
• The Utility: Integrated mounts for fenders, racks, and the Checkpoint-specific frame bag system.

The WeLive Advantage:

A bike this advanced deserves an "Alberta-Ready" setup. When you pick up your Checkpoint+ from WeLive in Gasoline Alley, we make sure the technology matches the terrain:
✅ Digital Tuning: We’ll help you pair your SRAM AXS app and customize your TQ motor assist levels so you get the exact range vs. power balance you need.
✅ Backcountry Prep: We ensure your tubeless setup is rock-solid and your firmware is up to date before you hit the gravel.
✅ Ongoing Support: From battery health checks to drivetrain tuning, our certified techs are here to keep your "virtual tailwind" blowing strong.

*Please note - spec applies to all sizes unless listed separately

Frameset

Frame500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axleForkCheckpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle

Weight

WeightML - 13.76 kg / 30.34 lbs (with TLR sealant, no tubes)Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system

BatteryTQ 360WhChargerTQ 4A chargerComputerTQ LED display with Bluetooth & ANT+ connectivityMotorTQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak powerE-bike ClassificationClass 1

Drivetrain

*ShifterSize:XS, S, M, ML, L, XLSRAM Rival AXS E1, 13 speedSize:XS, S, M, ML, L, XLSRAM Rival AXS E1Rear derailleurSRAM GX Eagle AXS, T-Type*CrankSize:XS, SPraxis Alloy, 165mm lengthSize:M, MLPraxis Alloy, 170mm lengthSize:L, XLPraxis Alloy, 172.5mm lengthCassetteSRAM Eagle XS-1275, T-Type, 10-52, 12 speedChainSRAM GX Eagle, T-Type, 12 speedMax chainring size1x: 44T

Wheels

Wheel frontBontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axleWheel rearBontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axleSkewer frontBontrager Switch chamfered thru axleSkewer rearBontrager Switch chamfered thru axle, removable leverTireBontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mmTire partBontrager TLR sealant, 180 ml/6 ozRim stripBontrager TLRMax tire size50mm without fenders, 42mm with fenders (as measured, see manual for details)

Components

SaddleVerse Short Comp, steel rails, 145mm widthSeatpostBontrager carbon, 27.2mm, 8mm offset, 330mm length*HandlebarSize:XS, SBontrager Elite Gravel, alloy, 40cm widthSize:M, MLBontrager Elite Gravel, alloy, 42cm widthSize:LBontrager Elite Gravel, alloy, 44cm widthSize:XLBontrager Elite Gravel, alloy, 46cm widthHandlebar tapeBontrager Supertack Perf tape*StemSize:XSBontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm lengthSize:S, MBontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm lengthSize:ML, LBontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm lengthSize:XLBontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm lengthBrake rotorSRAM Paceline, rounded, centerlock, 160mmRotor sizeMax brake rotor sizes: 180mm front & rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
