Name: Amflow TL Carbon
Brand: Amflow
Price: 5399.0 CAD
Availability: OutOfStock

Amflow

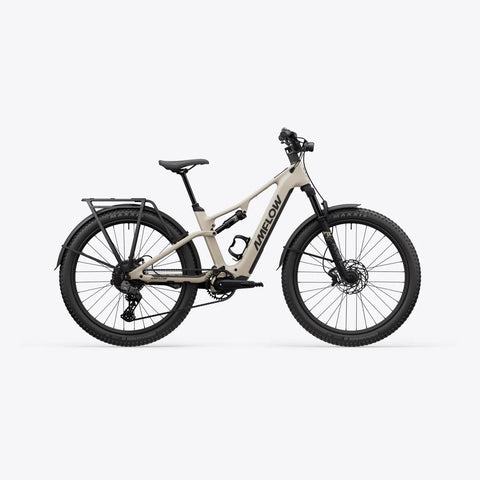

Amflow TL Carbon

Fully loaded for adventure: a full-carbon, full-suspension 'SUV' e-bike for trails, commuting and loaded touring.

$5,399.00 Shipping calculated at checkout.

Frame Size

Product variants

Not sure of your size? Use our fit tool

Test ride in Red DeerTry it at our Gasoline Alley shop

Financing availableAsk us about monthly payments

Amflow warranty5-year carbon frame, 2-year drive system and battery

Local service & supportOur service team is right here in Red Deer

Amflow TL Carbon 800Wh — All-Terrain Electric Touring Bike

Fully Loaded for Adventure. Built for Every Scenario.

Meet the Amflow TL Carbon, an exceptional "SUV e-bike" engineered to bridge the gap between agile trail performance, smooth urban commuting, and stable, long-distance loaded touring. Combining high-end full-suspension capability with everyday practicality, the TL Carbon is built for riders who want to go further, carry more, and explore diverse landscapes without limits.

Key Highlights & Features

Lightweight Full-Carbon Frame: Crafted around a durable, lightweight full-carbon frame (approx. 6.4 lbs / 2.9 kg), the complete bike maintains an exceptionally nimble overall weight starting around 49.8 lbs.
High-Performance Avinox M2 Drive Unit: Powered by the intelligent Avinox system, the motor delivers a massive nominal torque of 110N·m and up to 125N·m of peak torque. Experience millisecond-response acceleration, quiet operation, and effortless climbing power on steep, rugged terrain.
Massive 800Wh Removable Battery: The high-capacity Avinox RS800 removable battery provides an extensive range of up to 106 miles (approx. 172 km). For ultimate multi-day touring, the system supports battery expansion configurations up to 1280Wh total capacity with an optional secondary battery.
FOX Full-Suspension Comfort: Equipped with a 120mm FOX AWL Sport fork (RAIL 2.0 damper) and a FOX FLOAT Rhythm rear shock (105mm rear travel), the bike absorbs city potholes, smooths out gravel tracks, and handles rough trail roots with maximum traction and control.
Ready-to-Roll Touring Equipment: Unlike traditional eMTBs that require aftermarket add-ons, the TL Carbon comes fully outfitted out of the box with an MIK HD-compatible rear rack, front and rear mudguards, integrated Avinox front/rear lighting, a robust kickstand, and a bottle cage.
Heavy-Duty Cargo Capacity: Designed to support a total weight capacity of up to 440 lbs (200 kg) including rider and gear, it features modular mounting designs compatible with panniers, bags, and bike trailers (via a trailer thru-axle).

Smart Connectivity & Control

Avinox DPC100 Display: A sharp 2-inch OLED control display paired with dual wireless handlebar controllers gives you intuitive command over assist modes, lighting configurations, and stats.
Smart Offline Navigation & App Integration: Connect via the Avinox Ride app to sync GPX/FIT/TCX routes directly to your display, customize motor assist settings, utilize anti-theft bike protection, and track your rides.
Smart Heart Rate Control: Pair a Bluetooth heart rate monitor to automatically modulate motor assistance based on your target fitness zones.

Two riders loading up Amflow TL e-bikes for a trip

Coming soon to Red Deer

Be first to ride it

The Amflow TL Carbon is on its way to our Gasoline Alley shop. Contact us and we'll let you know as soon as it lands and set you up with a test ride.

Book a test ride

Motor

125 N·m

Avinox M2 · 1100W peak

Battery

800 Wh

Removable · up to 172 km

Speed

Class 1

Pedal assist to 32 km/h

Suspension

120 / 105 mm

FOX front and rear

Capacity

200 kg total

Rack, fenders and kickstand included

Weight

22.6 kg

S/M, without accessories

5-year frame warrantyCarbon frame, original owner

TÜV SÜD certifiedBike and Avinox drive system

Test rides in Red DeerGasoline Alley

Financing availableAsk in store

SUV e-bike

Full suspension for every kind of ride

A 2.9 kg full-carbon frame with FOX suspension that smooths city streets, steadies a loaded bike and stays composed on roots and rocks.

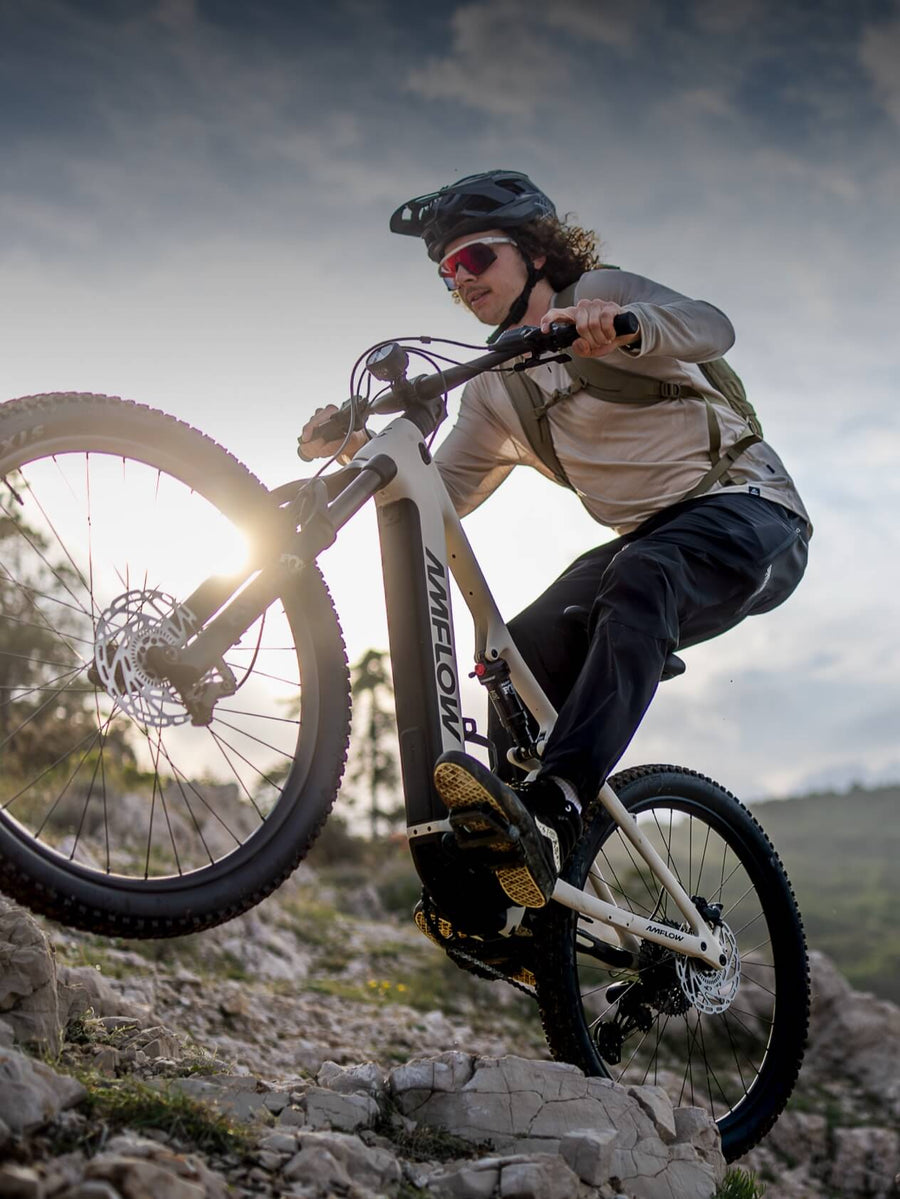

FOX full suspension

120 mm FOX AWL fork and 105 mm FOX Float rear, tuned for the TL.

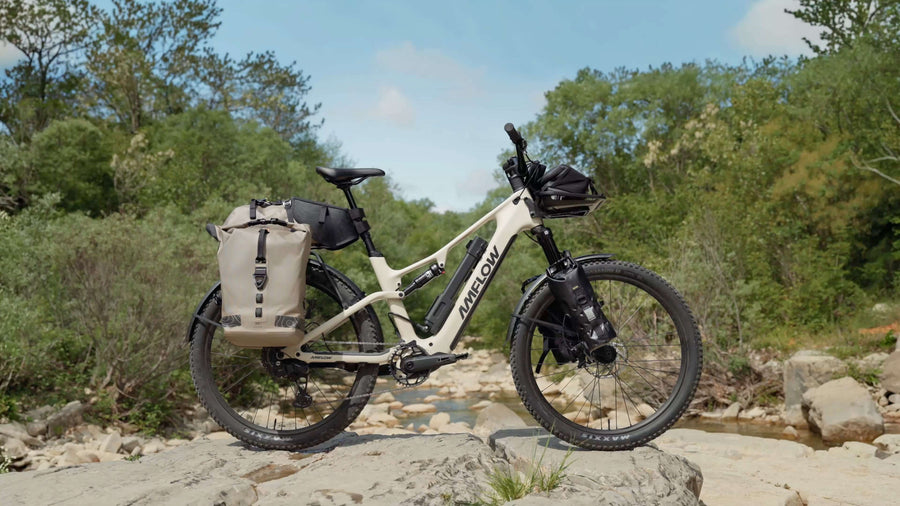

Built to carry 200 kg

Bike, rider (up to 125 kg), 20 kg on the front rack and 27 kg on the MIK HD rear rack.

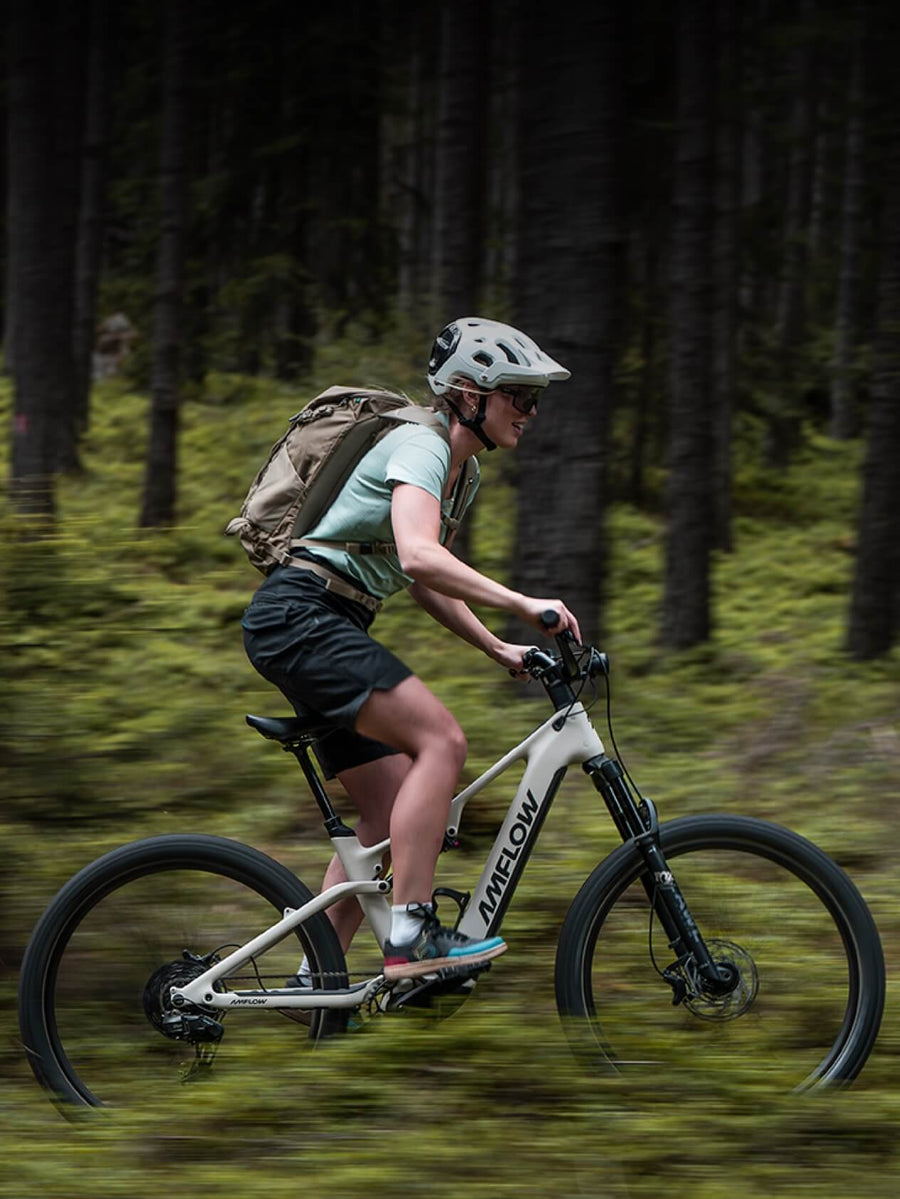

27.5" or 29"

Swap to 29" wheels front and rear to match your terrain.

Drive and range

Range for new horizons

The Avinox M2 delivers 125 N·m, and the removable 800 Wh battery gives up to 172 km.

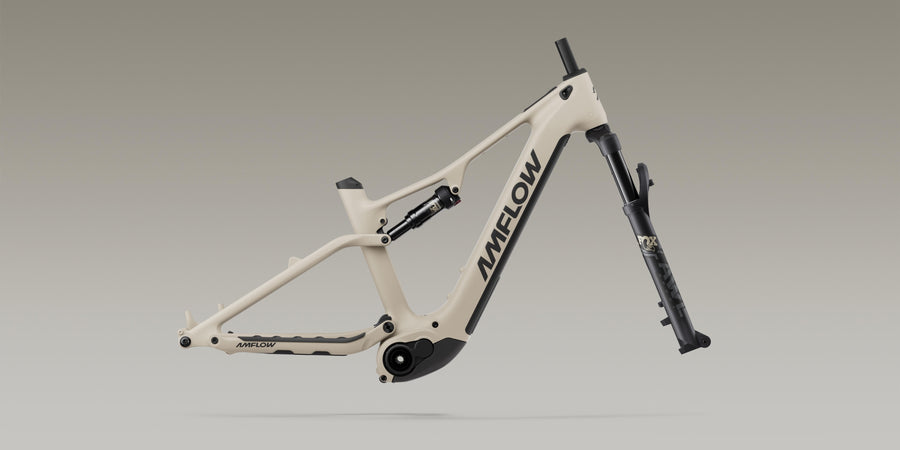

Avinox M2, 125 N·m

Up to 1100W peak with a traction control system that helps prevent rear-wheel slip.

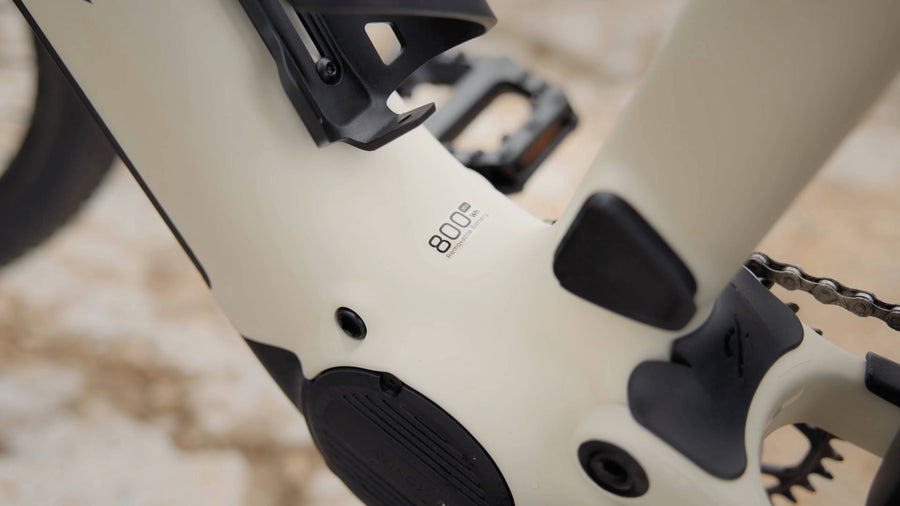

Removable 800 Wh battery

Swap with one hand. Add the 480 Wh secondary battery (sold separately) for up to 1,280 Wh.

Avinox SmoothShift

Electronic shifting that changes gears even when you're not pedalling.

Ready to roll

Everything you need, included

Rear rack, fenders, lights, kickstand and pedals come standard, plus smart features in the Avinox Ride app.

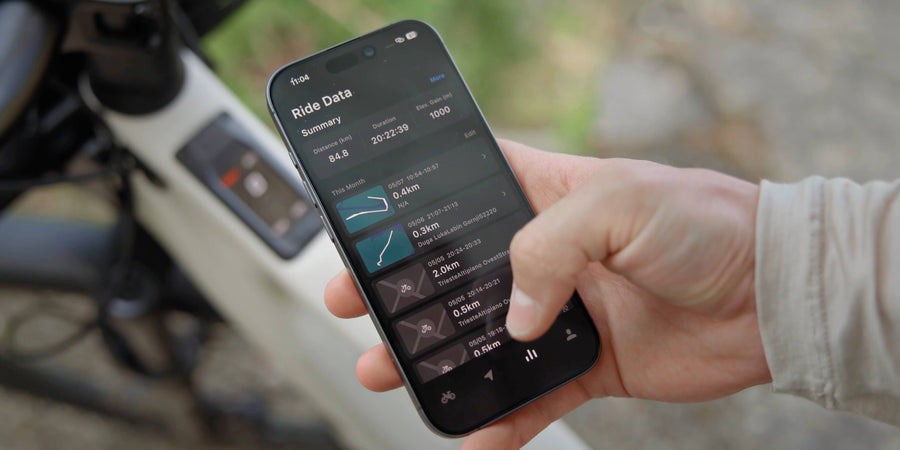

Avinox Ride app + Apple Find My

Offline navigation, heart-rate assist and location tracking with Apple Find My.

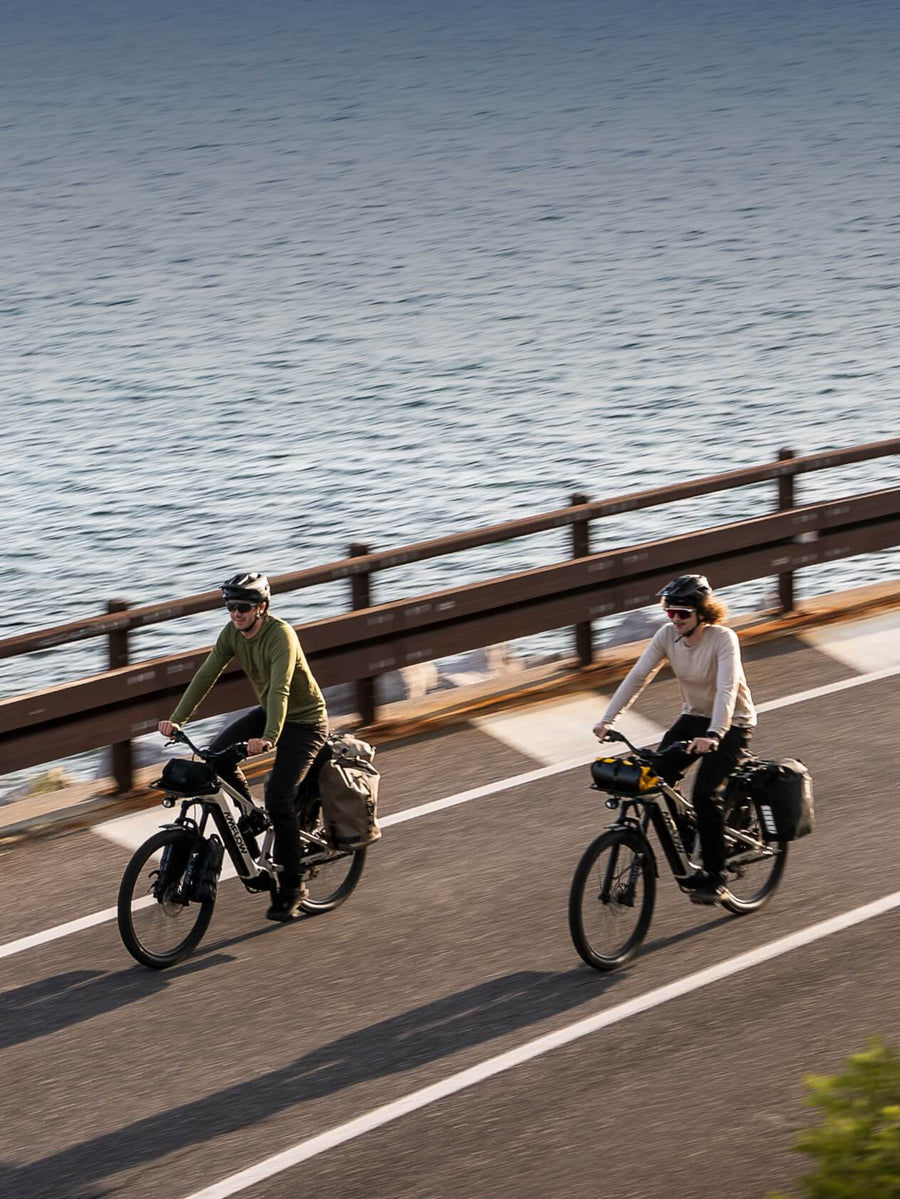

Commute, tour or trail

From daily commutes and family rides to long, loaded tours.

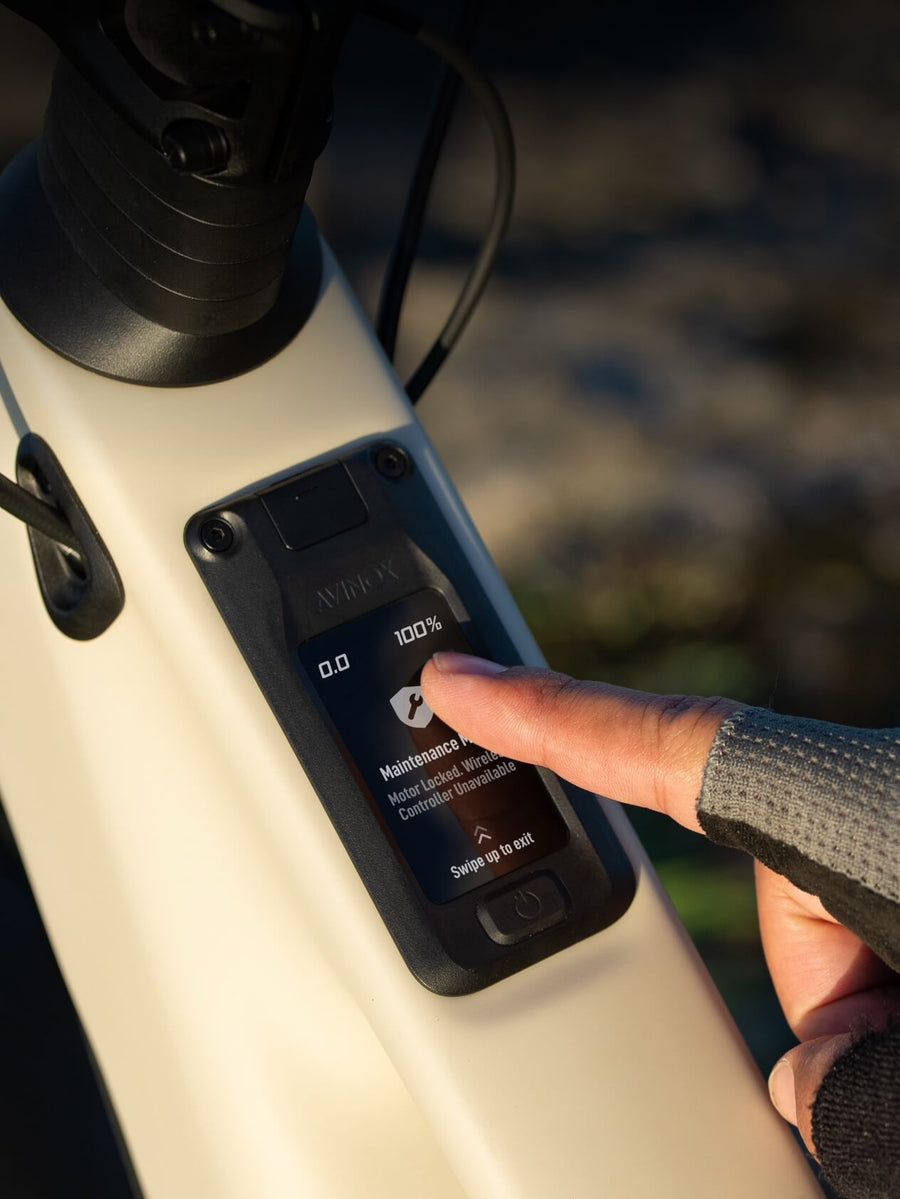

2" OLED control display

Clear ride data and quick control of lights and assist.

TL Carbon vs PR Carbon

Adventure or enduro?

Both use the Avinox M2 and a removable 800 Wh battery. The TL is an all-rounder with racks, fenders and 120/105 mm of travel; the PR is a 160 mm enduro e-MTB.

	You're viewingTL Carbon$5,399.00	PR Carbon$6,999.00View this bike →
Best for	Commuting, touring, light trail	Enduro and big mountain
Drive unit	Avinox M2, 125 N·m	Avinox M2, 125 N·m
Battery	800 Wh removable	800 Wh removable
Travel	120 / 105 mm	160 mm fork
Rack, fenders, kickstand	Included	Not included
Range (Amflow)	Up to 172 km	Up to 158 km

Size & fit

Find your size

Enter your height for a size recommendation, or come in and we'll fit you in person.

Find your size

Enter your height and we'll recommend a frame size.

Feet Inches

Size	Rider height
Small / Medium	5'1" – 5'9" (155–175 cm)
Large / XL	5'9" – 6'3" (175–190 cm)

Sizing from Amflow. Each frame ships with a short and a long stem: S/M covers sizes S and M, L/XL covers L and XL. We'll set it up for your height.

Between sizes or unsure? Book a fitting or test ride and we'll help you choose.

Geometry

Frame size	Small / Medium	Large / XL
Reach	375 mm	413 mm
Stack	628 mm	654 mm
Standover	751 mm	755 mm
Front centre	674 mm	722 mm
Fork length	545 mm	545 mm
Wheelbase	1144 mm	1192 mm
Chainstay	470 mm	470 mm
BB height	328 mm	328 mm
Effective top tube	603 mm	651 mm
Head tube angle	66.9°	66.9°
Head tube length	120 mm	148 mm
Effective seat tube angle	70°	70°
Seat tube length	413 mm	448 mm

Specifications

Full specs

General

Weight: 22.6 kg (S/M, without fenders, rack, lights, pedals); 25.5 kg fully equipped
Colour: Silica Beige
Max total weight: 200 kg (bike, rider up to 125 kg, front rack 20 kg, rear rack 27 kg)

E-bike system

Drive unit: Avinox M2, 110 N·m nominal / 125 N·m peak, up to 1100W peak
Battery: Avinox RS800 800 Wh removable (optional 480 Wh secondary battery, up to 1,280 Wh)
Range: Up to 172 km (Amflow test, Eco mode)
Charger: Avinox 4A charger, 168W
Display: Avinox DPC100 2" OLED control display
Controllers: Avinox wireless controllers, left and right
Assist speed: Pedal assist to 32 km/h (Class 1)

Frame & suspension

Frame: Amflow TL full carbon, full suspension, 27.5" or 29" front and rear
Fork: FOX AWL Sport, 120 mm, RAIL 2.0 damper
Rear shock: FOX Float Rhythm, 190 x 45 mm (105 mm travel)

Drivetrain

Rear derailleur: TRP E.A.S.I. electronic, 10-speed (Avinox SmoothShift)
Cassette: 11-43T, 10-speed
Chain: Avinox eGlide T
Chainring: Avinox 38T direct mount
Crank: Avinox SL (155 mm S/M, 160 mm L/XL)

Brakes

Brakes: Tektro TKD173, 4-piston (Amflow custom), 180 mm rotors

Wheels & tires

Wheels: Amflow HTA-25 alloy, 27.5"
Tires: Maxxis Crossmark II 27.5 x 2.35"

Components

Handlebar: Amflow Touring, 93 mm rise (720 mm S/M, 740 mm L/XL)
Stem: Amflow split stem, short and long included
Saddle: Amflow Touring Saddle
Dropper: Amflow TA, 150 mm (S/M), 170 mm (L/XL)
Racks: Amflow rear rack (MIK HD), front rack compatible
Fenders: Front and rear
Lights: Avinox front light, Sate-lite M8 rear light
Extras: Kickstand, Amflow Elite pedals, bottle cage, two battery keys, torque wrench

Specs from Amflow and subject to change. Weights and range are Amflow figures. The Avinox drive has a rated power of 250W; peak figures are Amflow's. Ask us to confirm the build on bikes arriving in store.
