PR Carbon

$6,999.00
  • Medium
  • Large
  • X-Large
  • XX-Large
Size chart
Size chart
Geometry
M L XL XXL
A Reach 455mm 478mm 503mm 528mm
B Stack Height 622.1mm 632.2mm 645.9mm 659mm
C Standover Height 780mm 785mm 790mm 795mm
D Front Center 793.1mm 820.9mm 852mm 883.9mm
E Fork Length 570mm 570mm 570mm 570mm
F Wheelbase 1231.3mm 1259.1mm 1290.2mm 1322.1mm
G Chainstay Length 438/451mm 438/451mm 438/451mm 438/451mm
H Bottom Bracket Drop 10.5/23.7mm 10.5/23.7mm 10.5/23.7mm 10.5/23.7mm
I Bottom Bracket Height 345.5mm 345.5mm 345.5mm 345.5mm
J Effective Top Tube Length 586.9mm 619.7mm 642.8mm 672.2mm
K Head Tube Angle 64.2° 64.2° 64.2° 64.2°
L Head Tube Length 109mm 120mm 135mm 150mm
M Actual Seat Tube Angle 72° 72° 72° 72°
N Effective Seat Tube Angle 78° 78° 78° 77.7°
O Seat Tube Height 415mm 427mm 447mm 466mm
Pickup available at Gasoline Alley Storefront

Usually ready in 24 hours
View store information

PR Carbon

Size: Medium

Pickup available, Gasoline Alley Storefront

Pickup available, usually ready in 24 hours

179 Leva Avenue
103B
Red Deer County AB T4E 1B9
Canada

+14033429558

Pre-Order Information & Deposit

Secure your spot in the first Canadian shipment. Due to extremely high global demand for the DJI Avinox system, initial allotments are limited. Placing a full payment on the bike ensures your place in line for the first batch of arrivals.

*We won't charge your card, just pre-authorize it*

  • Estimated Arrival: Late June/ early July 2026

  • Next Steps: Select your size and color below to pay your deposit. Our team (Derek or Vlad) will contact you directly to confirm your build specifications and provide regular shipping updates.

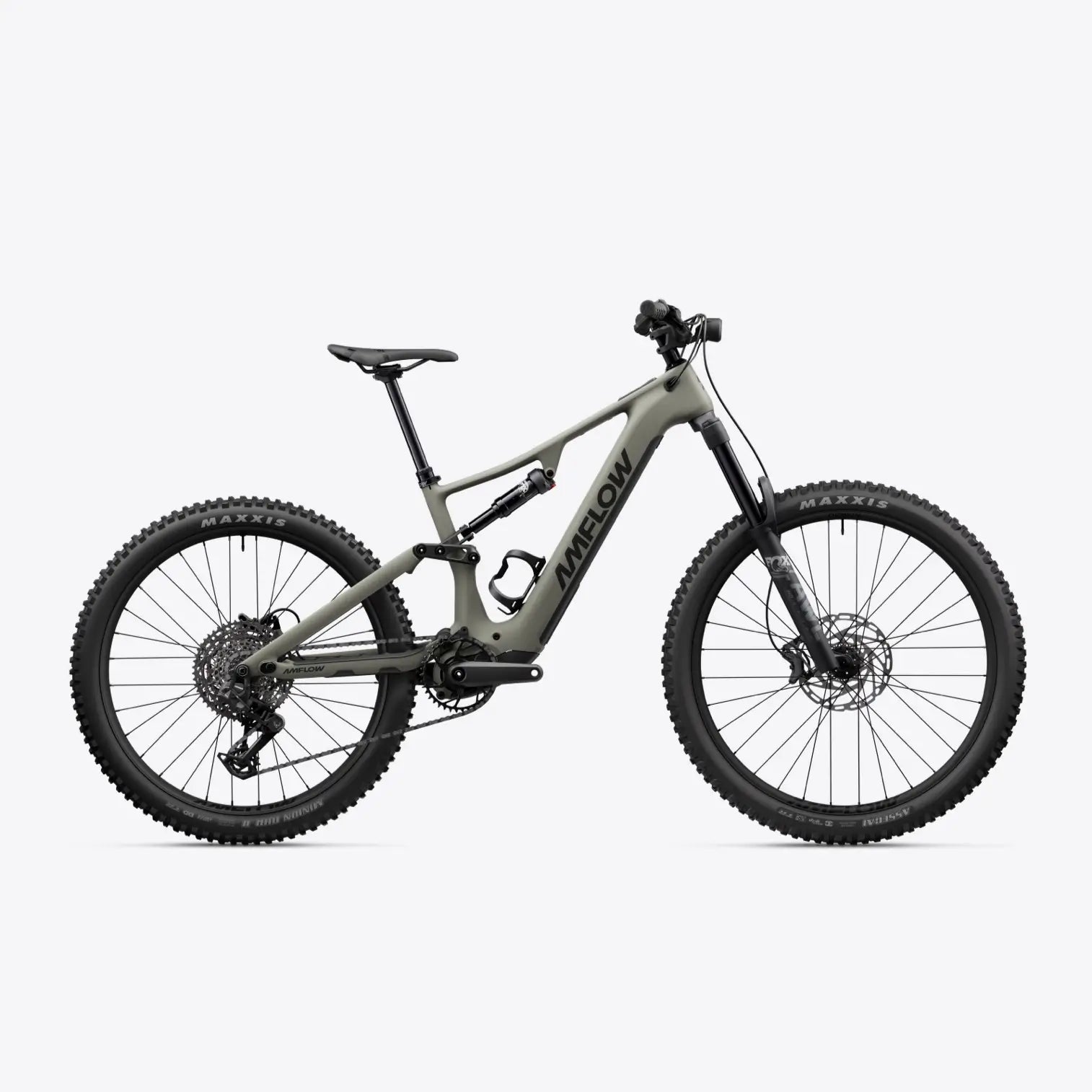

Amflow PR Carbon: The High-Value Game Changer

The Amflow PR Carbon is set to disrupt the market by offering the revolutionary DJI Avinox technology at a highly competitive $6,999 MSRP. This model provides the same ultra-capable chassis and 800Wh battery as the Pro version, making high-torque, full-power eMTB performance accessible to a wider range of riders.

It is the perfect choice for those who want the industry's most advanced motor system without the top-tier price tag.

AMFLOW PR Carbon

Description

Amflow PR Carbon: The High-Value Game Changer

The Amflow PR Carbon is set to disrupt the market by offering the revolutionary DJI Avinox technology at a highly competitive $6,999 MSRP. This model provides the same ultra-capable chassis and 800Wh battery as the Pro version, making high-torque, full-power eMTB performance accessible to a wider range of riders.

It is the perfect choice for those who want the industry's most advanced motor system without the top-tier price tag.

Specs

Core Performance Highlights

  • DJI Avinox M2 Drive Unit: Delivers a nominal 110Nm of torque with a 125Nm peak Boost, providing more than enough power to dominate technical climbs.
  • Massive 800Wh Removable Battery: The same high-capacity battery found on the Pro model, offering incredible range for all-day adventures.
  • Versatile Geometry: Includes the same 40 adjustable geometry configurations as the Pro, allowing you to fine-tune the headset angle, bottom bracket height, and chainstay length for your specific riding style.
  • Integrated Avinox Screen: Features the 2-inch OLED touchscreen integrated into the top tube for seamless data tracking and system control.

The Build: Balanced Performance

  • Suspension: FOX AWL HD Sport (160mm) and FOX Float Rhythm rear shock, custom-tuned for the weight and power of a full-power eMTB.
  • Drivetrain: SRAM S1000 Eagle Transmission (T-Type); wireless, robust shifting that is engineered specifically to handle high-torque motor systems.
  • Braking: Tektro TKD173 4-piston hydraulic brakes with 203mm rotors for dependable, powerful stopping.
  • Wheelset: Amflow XMA-30 Alloy Mullet wheels (29" Front / 27.5" Rear) for a playful yet stable ride.
  • Tires: Maxxis Assegai (Front) and Maxxis DHR II (Rear) – the industry standard for grip and durability.
