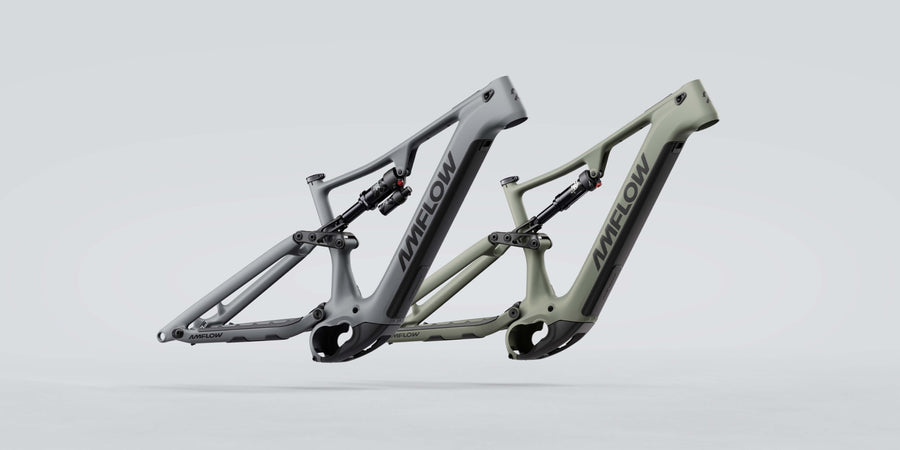

2.9 kg carbon frame
Light, strong and stiff, so rough terrain feels more composed.
Amflow
View store information

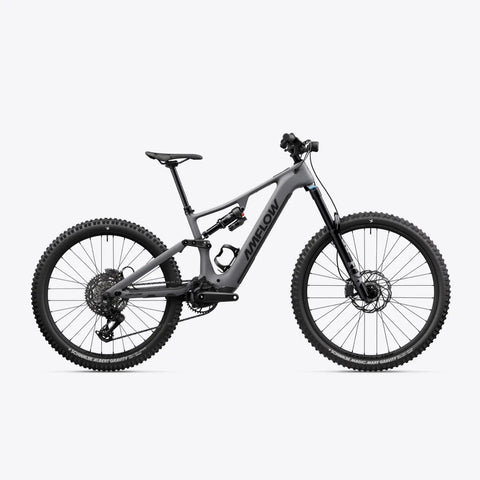

Amflow PR Carbon Pro
Master the peak: full-carbon enduro e-MTB with a removable 800 Wh battery and the 150 N·m Avinox M2S.
Test ride in Red DeerTry it at our Gasoline Alley shop
Financing availableAsk us about monthly payments
Amflow warranty5-year carbon frame, 2-year drive system and battery
Local service & supportOur service team is right here in Red Deer
Pickup available at WeLive — Red Deer (Gasoline Alley)
Usually ready in 24 hours
Size: Medium
Pickup available,
WeLive — Red Deer (Gasoline Alley)
Pickup available, usually ready in 24 hours
179 Leva Avenue
103B
Red Deer County AB T4E 1B9
Canada
Amflow PR Carbon Pro: Technical Specifications
The Amflow PR Carbon Pro is the high-performance pinnacle of the PR series, featuring a lightened chassis and the flagship Avinox M2S motor. Engineered for riders who demand extreme torque and premium componentry, it balances a 150Nm boost with a frame optimized for agility.
Coming soon to Red Deer
Be first to ride it
The Amflow PR Carbon Pro is on its way to our Gasoline Alley shop. Contact us and we'll let you know as soon as it lands and set you up with a test ride.
Motor
150 N·m
Avinox M2S · 1500W peak
Battery
800 Wh
Removable · up to 158 km
Speed
Class 1
Pedal assist to 32 km/h
Suspension
160 mm FOX
FOX 36 Performance
Frame
Carbon
About 2.9 kg · 40 geometry settings
Weight
23.1 kg
Size M, tubeless
5-year frame warrantyCarbon frame, original owner
TÜV SÜD certifiedBike and Avinox drive system
Test rides in Red DeerGasoline Alley
Financing availableAsk in store
Geometry design
Flexible adjustment, effortless control
Up to 40 geometry combinations from the adjustable head angle, bottom bracket height and chainstay length.
40 geometry settings
Slacken it for fast descents or steepen it for climbing and tight trails.
29/27.5 mullet wheels
A 29" front rolls over obstacles; a 27.5" rear keeps it playful. Schwalbe Radial tires.
Battery and drive
Removable battery, long-lasting range
Slide the 800 Wh battery out to charge it indoors or swap in a spare for big days.

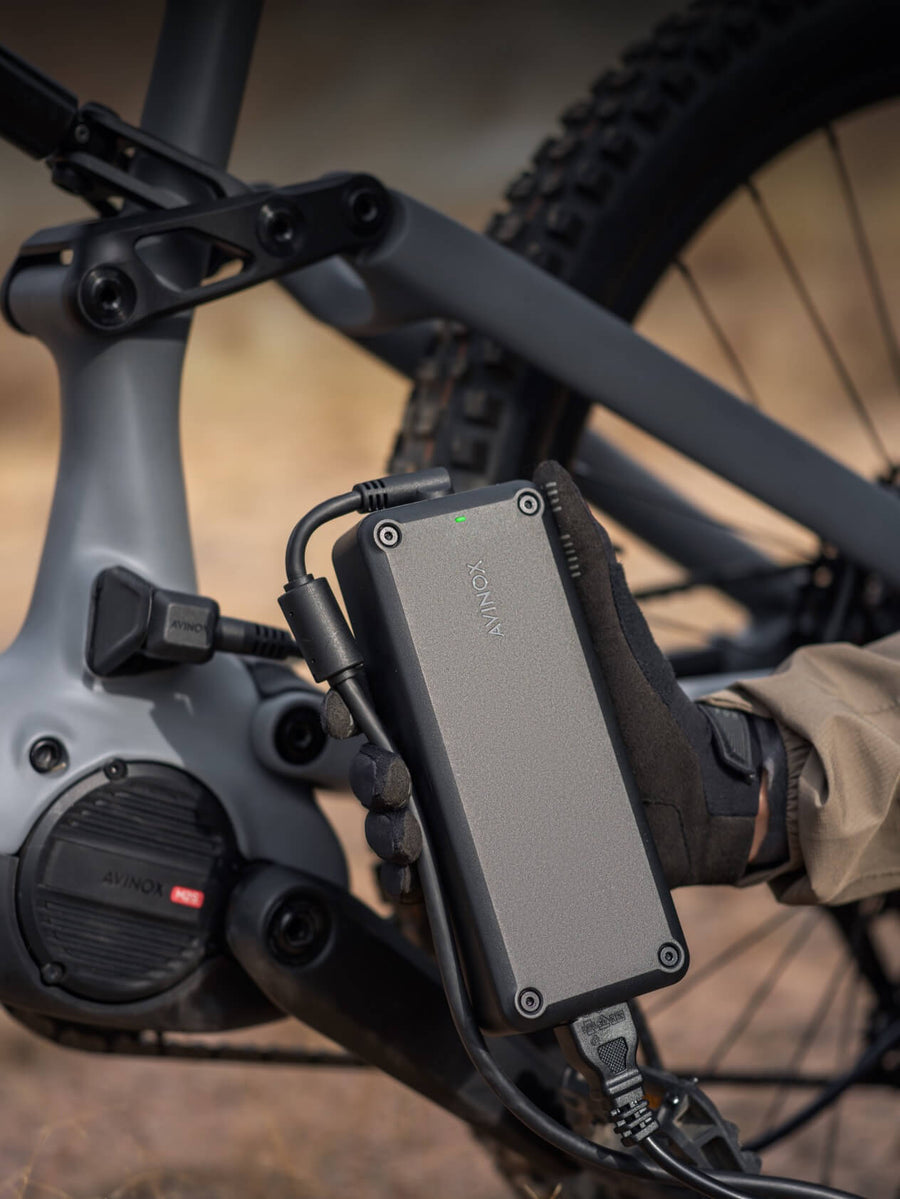

Removable 800 Wh battery
A slide-rail design with Battery Lock makes it quick to swap and secure on the bike.

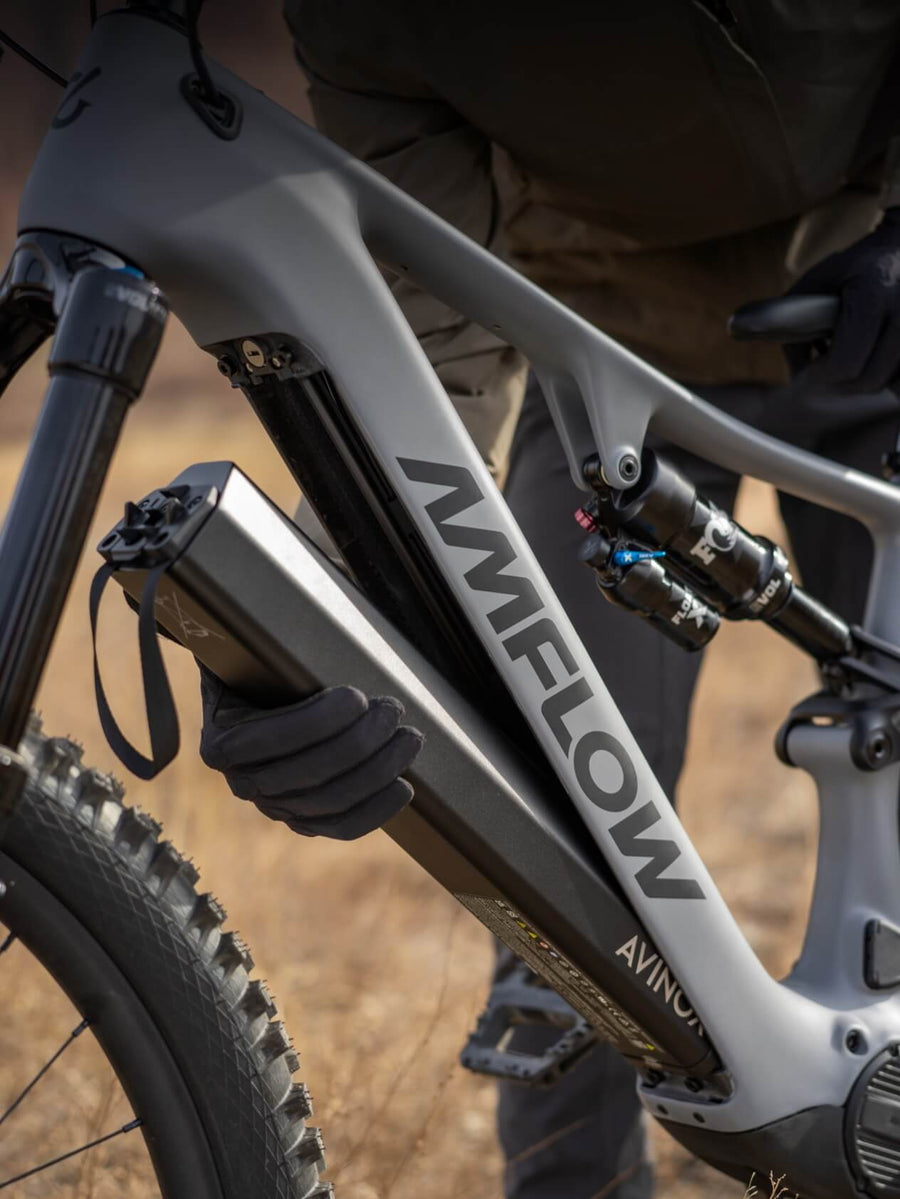

Quick swap, easy recharge
Charge the battery off the bike, or carry a spare to double your ride.

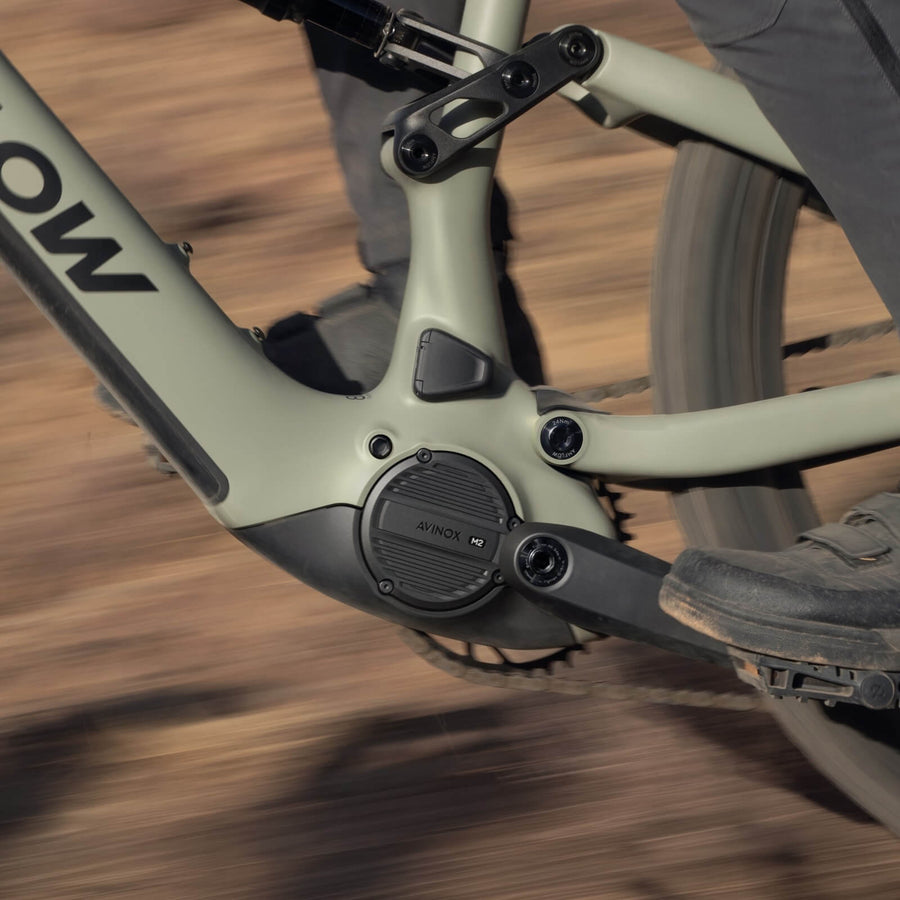

Avinox M2S, 150 N·m
Up to 1500W peak in Boost, with noise as low as 45 dBA.
Magura Gustav Pro brakes
Four-piston calipers and 203 mm rotors front and rear.
Avinox smart system
Smarter on every ride
A 2" OLED touchscreen built into the top tube, wireless controllers and the Avinox Ride app.

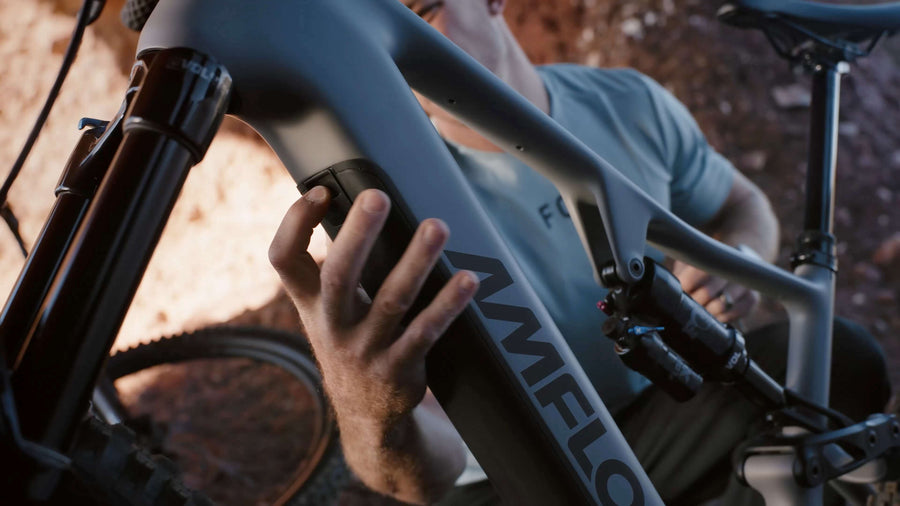

2" OLED touchscreen
Ride data, range and assist modes at a glance, built right into the frame.

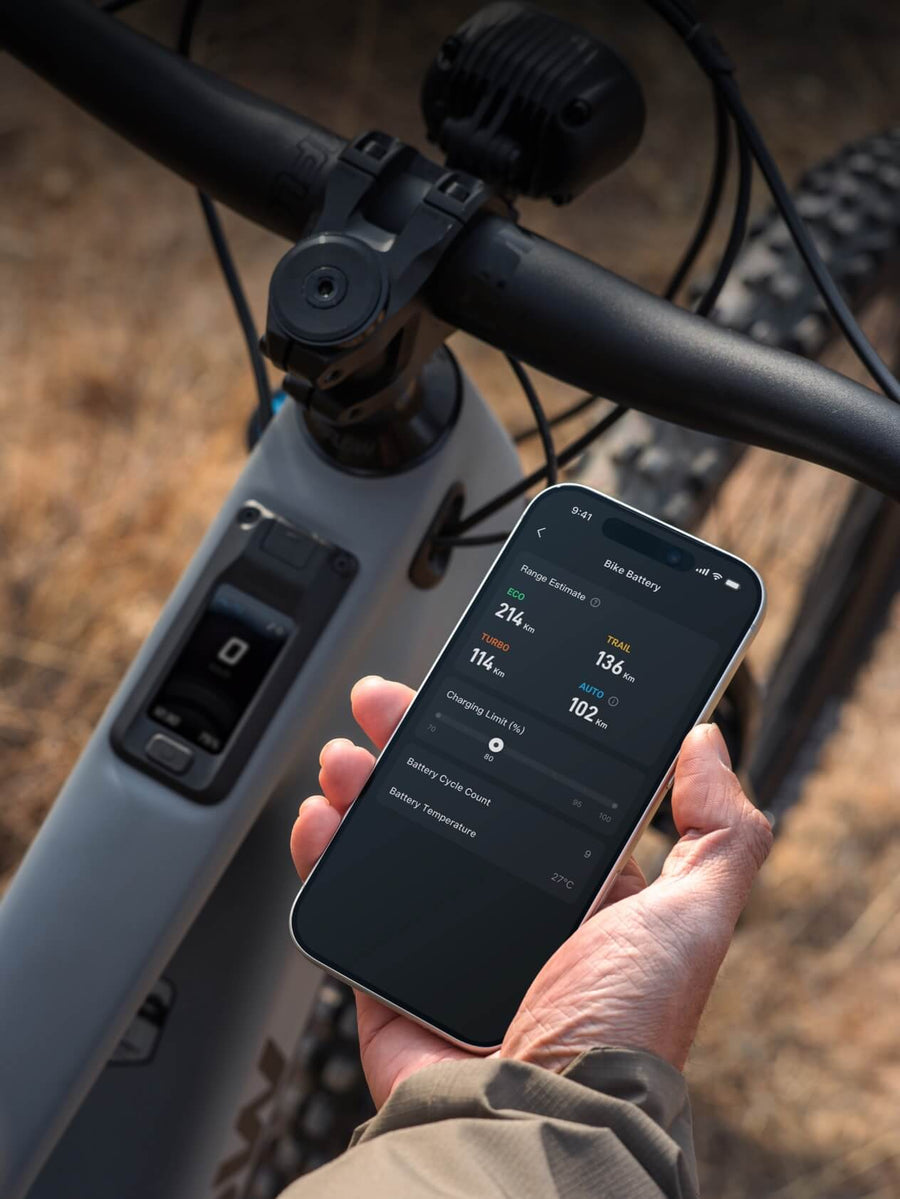

Avinox Ride app
Offline navigation from GPX files, heart-rate controlled assist, custom modes and Strava sync.

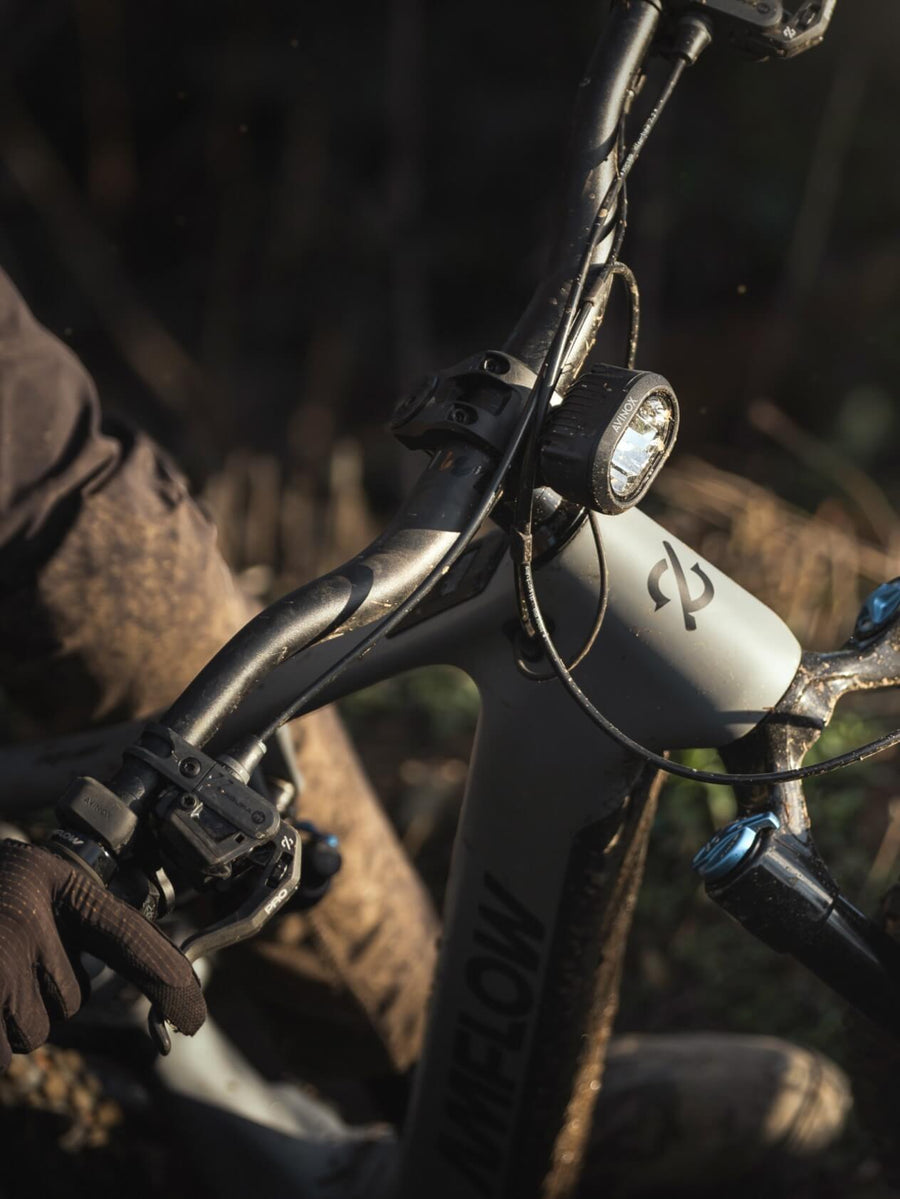

Smart front light
Control the Avinox light from the wireless controllers.

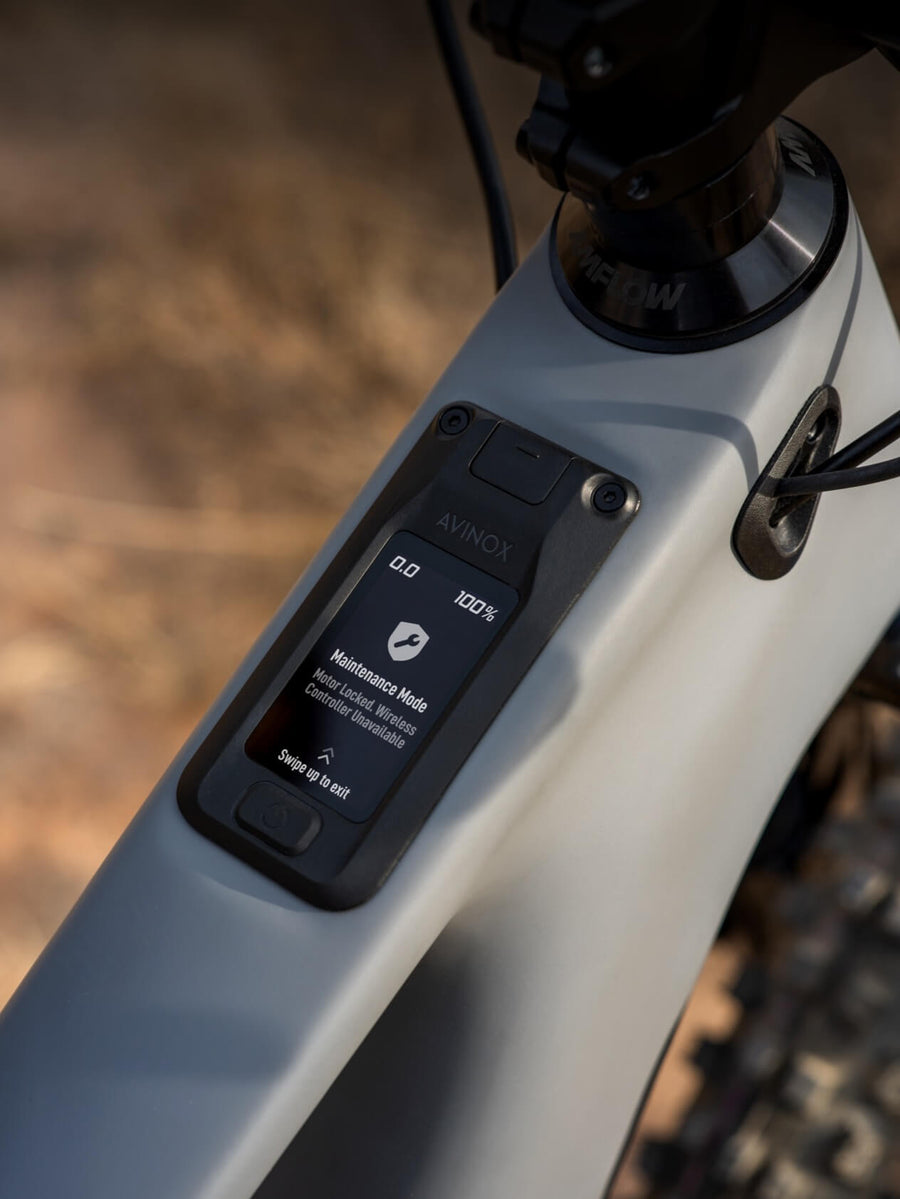

Apple Find My + maintenance mode
Track the bike's location and battery in Apple Find My, and service it safely in maintenance mode.
PR Carbon Pro vs PR Carbon
M2S or M2?
Same PR carbon frame and removable 800 Wh battery. The Pro steps up to the 150 N·m M2S, FOX 36 and Float X suspension, Magura brakes and a fast charger.
|
You're viewing
 PR Carbon Pro$9,399.00 | ||
|---|---|---|
| Drive unit | Avinox M2S, 150 N·m | Avinox M2, 125 N·m |
| Battery | 800 Wh removable | 800 Wh removable |
| Fork | FOX 36 Performance | FOX AWL HD Sport |
| Shock | FOX Float X Performance | FOX Float Rhythm |
| Brakes | Magura Gustav Pro | Tektro TKD173 |
| Charger | 508W fast charger | 168W charger |
| Tires | Schwalbe Radial | Maxxis Assegai / DHR II |
| Weight | 23.1 kg (M) | 22.6 kg (M) |
Size & fit
Find your size
Enter your height for a size recommendation, or come in and we'll fit you in person.
Find your size
Enter your height and we'll recommend a frame size.
| Size | Rider height |
|---|---|
| Medium | 5'3" – 5'9" (160–176 cm) |
| Large | 5'6" – 6'0" (168–183 cm) |
| X-Large | 5'8" – 6'2" (173–189 cm) |
| XX-Large | 6'0" – 6'6" (183–199 cm) |
Sizing from Amflow. Sizes overlap, so if you're between sizes come in or contact us and we'll help you choose.
Between sizes or unsure? Book a fitting or test ride and we'll help you choose.
Geometry
| Frame size | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|
| Reach | 452 mm | 475 mm | 500 mm | 527 mm |
| Stack | 626 mm | 637 mm | 649 mm | 662 mm |
| Standover | 783 mm | 789 mm | 792 mm | 799 mm |
| Front centre | 788 mm | 816 mm | 847 mm | 880 mm |
| Fork length | 576 mm | 576 mm | 576 mm | 576 mm |
| Wheelbase | 1228 mm | 1256 mm | 1287 mm | 1320 mm |
| Chainstay (adjustable) | 440–452 mm | 440–452 mm | 440–452 mm | 440–452 mm |
| BB height | 350 mm | 350 mm | 350 mm | 350 mm |
| Effective top tube | 597 mm | 624 mm | 653 mm | 685 mm |
| Head tube angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Head tube length | 111 mm | 124 mm | 137 mm | 151 mm |
| Effective seat tube angle | 77° | 76.9° | 76.7° | 76.6° |
| Seat tube length | 405 mm | 425 mm | 445 mm | 464 mm |
Specifications
Full specs
General
- Weight
- 23.1 kg (size M, tubeless)
- Colours
- Moss Green, Basalt Grey
- Geometry
- 40 adjustable configurations (head angle, BB height, chainstay)
E-bike system
- Drive unit
- Avinox M2S, 130 N·m nominal / 150 N·m peak, up to 1500W peak (Boost)
- Battery
- Avinox 800 Wh removable
- Range
- Up to 158 km (Amflow test, Eco mode)
- Charger
- Avinox Fast Charger, 12A / 508W
- Display
- Avinox 2" OLED touchscreen control display
- Controllers
- Avinox wireless controllers, left and right
- Assist speed
- Pedal assist to 32 km/h (Class 1)
Frame & suspension
- Frame
- Amflow PR Carbon Pro frame, 27.5" or 29" rear compatible
- Fork
- FOX 36 Performance, 160 mm, GRIP damper
- Rear shock
- FOX Float X Performance, 210 x 55 mm
Drivetrain
- Rear derailleur
- SRAM S1000 Eagle Transmission
- Shifter
- SRAM AXS Pod
- Cassette
- SRAM XS-1270, 10-52T
- Chain
- SRAM Eagle 70 Transmission
- Chainring
- SRAM Eagle Transmission 38T
- Crank
- Avinox SL (155 mm M/L, 160 mm XL/XXL)
Brakes
- Brakes
- Magura Gustav Pro, 4-piston, 203 mm rotors
Wheels & tires
- Wheels
- Amflow XMA-30 alloy, mullet (29" front / 27.5" rear)
- Front tire
- Schwalbe Magic Mary Radial 29 x 2.5"
- Rear tire
- Schwalbe Albert Radial 27.5 x 2.5"
Components
- Handlebar
- Amflow Enduro Alloy, 800 mm, 40 mm rise
- Stem
- Amflow split stem, 35 mm
- Saddle
- Amflow Mountain Saddle
- Dropper
- 190 mm (M), 210 mm (L/XL), 230 mm (XXL), travel-adjustable
- Lights
- Avinox front light, rear light
- Extras

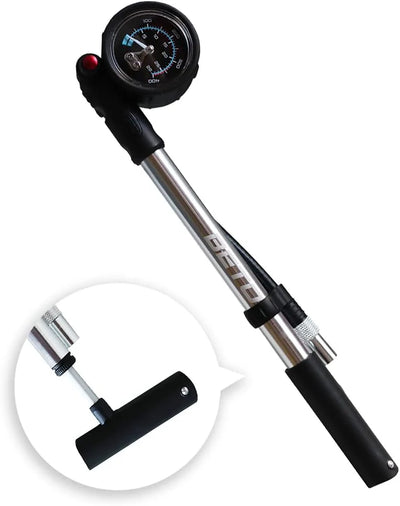

- Two battery keys, shock pump, torque wrench, frame protection film
Specs from Amflow and subject to change. Weights and range are Amflow figures. The Avinox drive has a rated power of 250W; peak figures are Amflow's. Ask us to confirm the build on bikes arriving in store.
