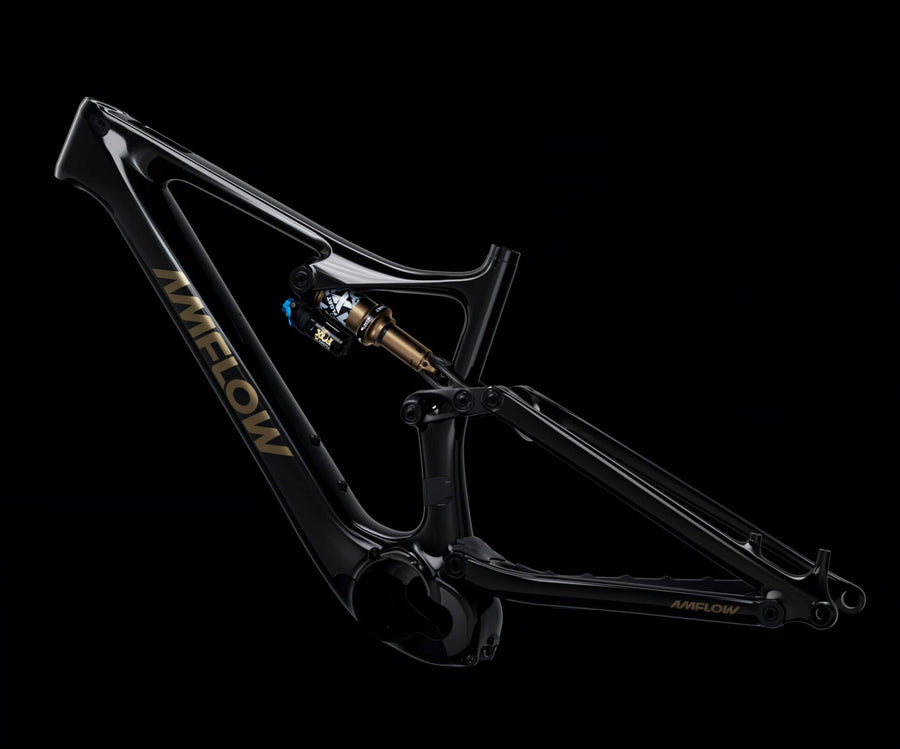

2.27 kg carbon frame
Ultra-light and stiff for a bike that feels closer to an analog trail bike.
Amflow
View store information

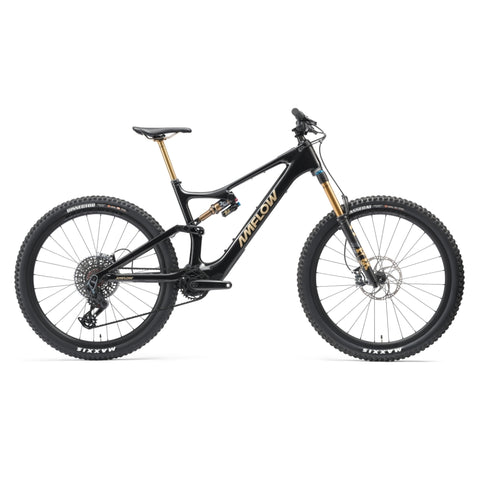

Amflow PL Carbon Pro
Power to the peak: an ultra-light 2.27 kg carbon frame with the Avinox M1, 800 Wh battery and FOX Factory suspension.
Sale price
$11,999.00
Regular price
$14,999.00
Sold out
20% Off
Unit price
/
Shipping calculated at checkout.
Test ride in Red DeerTry it at our Gasoline Alley shop
Financing availableAsk us about monthly payments
Amflow warranty5-year carbon frame, 2-year drive system and battery
Local service & supportOur service team is right here in Red Deer
Pickup available at WeLive — Red Deer (Gasoline Alley)
Usually ready in 24 hours
Size: XL
Pickup available,
WeLive — Red Deer (Gasoline Alley)
Pickup available, usually ready in 24 hours
179 Leva Avenue
103B
Red Deer County AB T4E 1B9
Canada
Amflow PL Carbon Pro: Power to the Peak
Imagine climbing Alberta's steepest river valley trails like they're flat pavement. The Amflow PL Carbon Pro is a full-carbon e-MTB with an ultra-light 2.27 kg frame, a 20.2 kg complete bike (size M) and the DJI Avinox M1 drive system.
The Avinox drive delivers up to 1000W of peak power through a quiet, compact motor. The 2-inch OLED touchscreen and smartphone connectivity keep you in the loop without cluttering your cockpit.
- Weight: 20.2 kg (size M). Handles like a traditional MTB, climbs like a rocket.
- Motor: DJI Avinox M1, 105 N·m (120 N·m in Boost), 1000W peak
- Battery: 800 Wh, up to 157 km of range (Amflow test), 0–75% in about 1.5 hours with the GaN fast charger
- Suspension: FOX 36 Factory with GRIP X2 (160 mm) and FOX Float X Factory (150 mm)
- Drivetrain: SRAM X0 Eagle Transmission
- Brakes: Magura MT7 Pro, 203 mm rotors
- Wheels: Amflow HMC-30 carbon, 29" (27.5" rear compatible via flip chip)
Coming soon to our Gasoline Alley shop. Contact us for local pricing, professional setup and a test ride as soon as it lands.
Coming soon to Red Deer
Be first to ride it
The Amflow PL Carbon Pro is on its way to our Gasoline Alley shop. Contact us and we'll let you know as soon as it lands and set you up with a test ride.
Motor
105 N·m
Avinox M1 · 1000W peak
Battery
800 Wh
Up to 157 km (Amflow test)
Speed
Class 1
Pedal assist to 32 km/h
Suspension
160 / 150 mm
FOX 36 & Float X Factory
Frame
2.27 kg carbon
Size M frame
Weight
20.2 kg
Size M, tubeless
5-year frame warrantyCarbon frame, original owner
TÜV SÜD certifiedBike and Avinox drive system
Test rides in Red DeerGasoline Alley
Financing availableAsk in store
Ultra-light carbon
Breathtaking speed and agility
The PL's 2.27 kg carbon frame keeps the full-power bike light, with 160 mm up front and 150 mm out back.

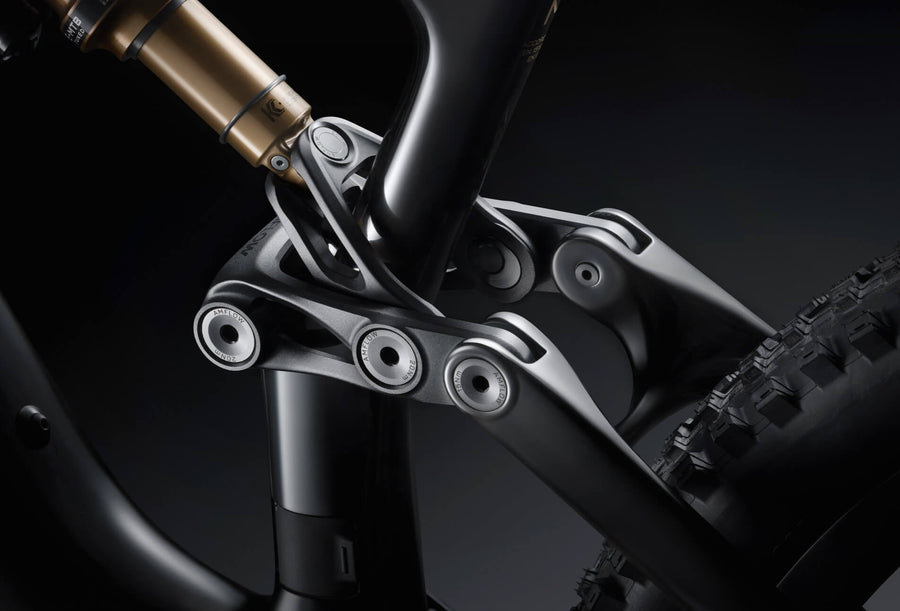

FOX Factory suspension
FOX 36 Factory with GRIP X2 up front and a Float X Factory shock with 150 mm of travel.
HMC-30 carbon wheels
29" carbon wheels with Maxxis Assegai and Dissector tires. 27.5" rear compatible via flip chip.
Avinox M1 drive
Powerful drive, smooth assistance
105 N·m continuous and 120 N·m in Boost, with five assist modes including Auto.

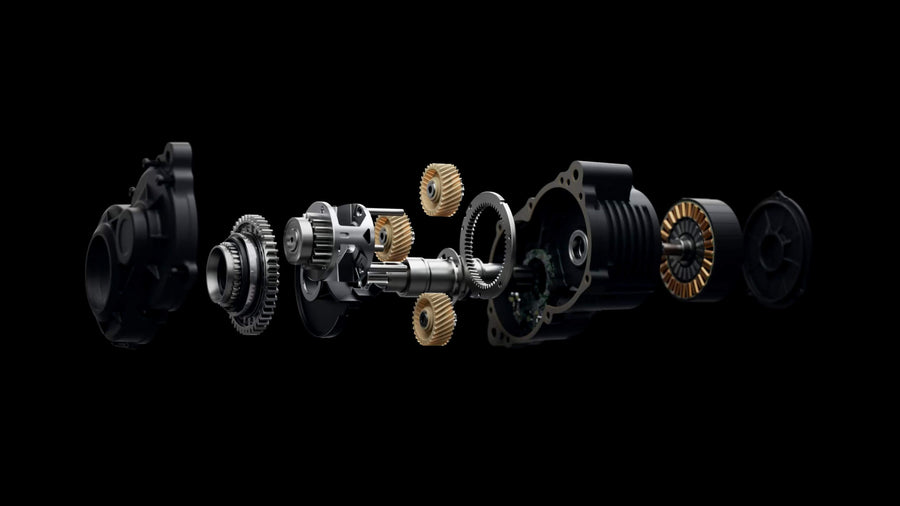

Avinox M1, 1000W peak
A compound planetary gearset gives huge power from a 2.52 kg drive unit.

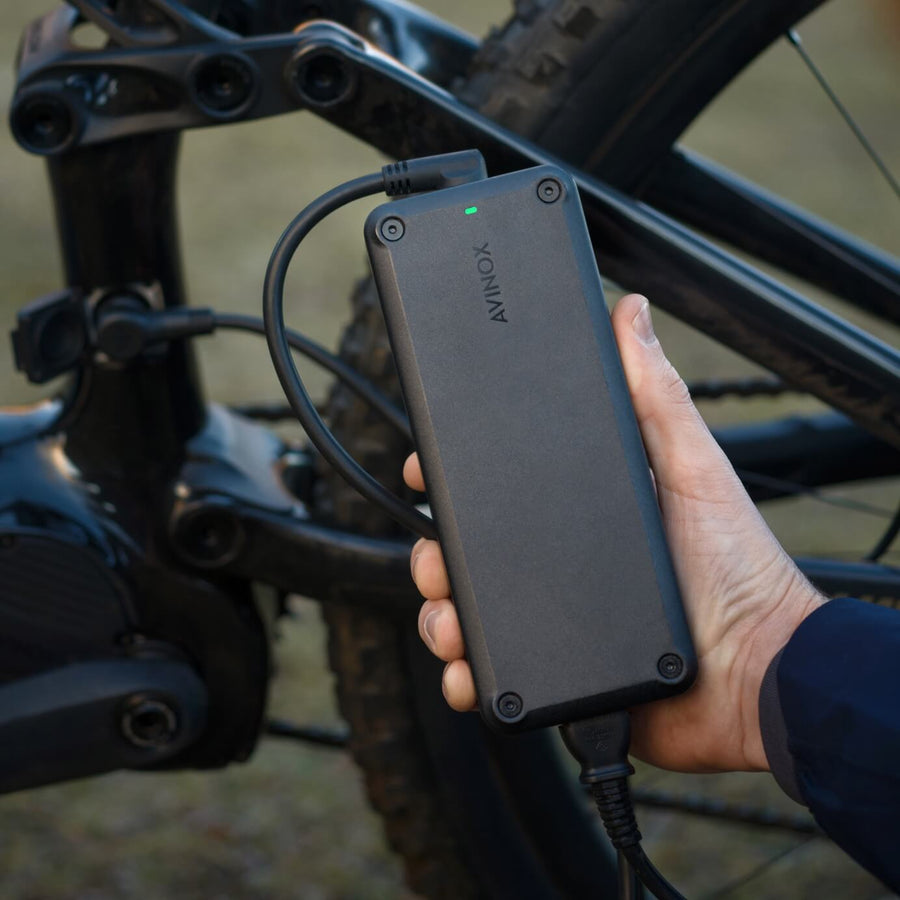

800 Wh + GaN fast charger
Up to 157 km of range, and 0–75% in about 1.5 hours with the palm-sized fast charger.

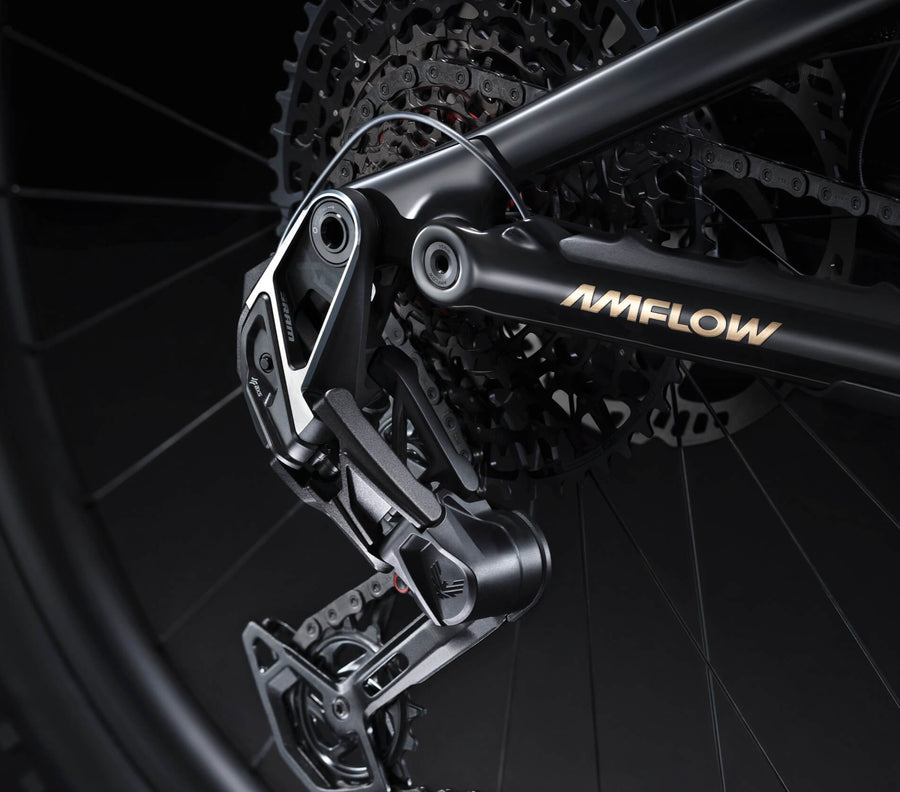

SRAM X0 Eagle Transmission
Wireless, hanger-less shifting built for e-MTB torque.
Magura MT7 Pro brakes
Four-piston stopping power with 203 mm Storm HC rotors.
Avinox smart system
Smarter on every ride
A 2" OLED touchscreen built into the top tube, wireless controllers and the Avinox Ride app.

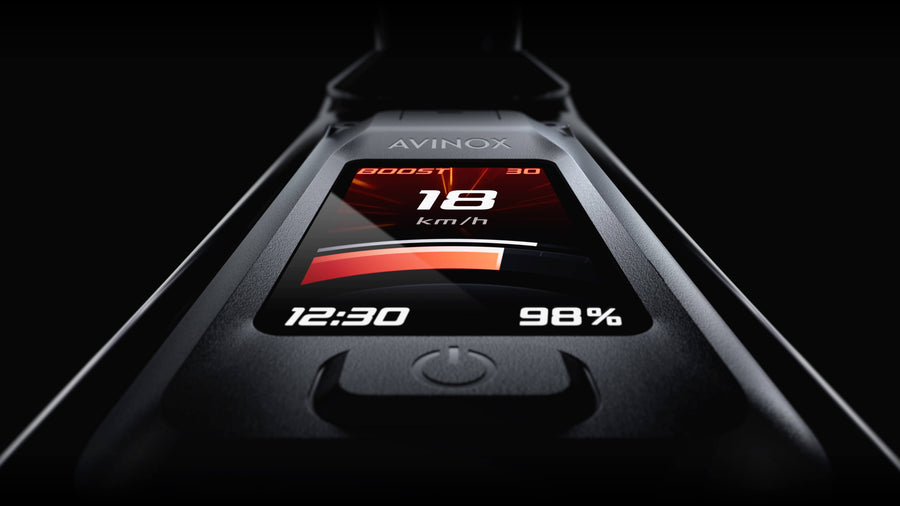

2" OLED touchscreen
Ride data, range and assist modes at a glance, built right into the frame.

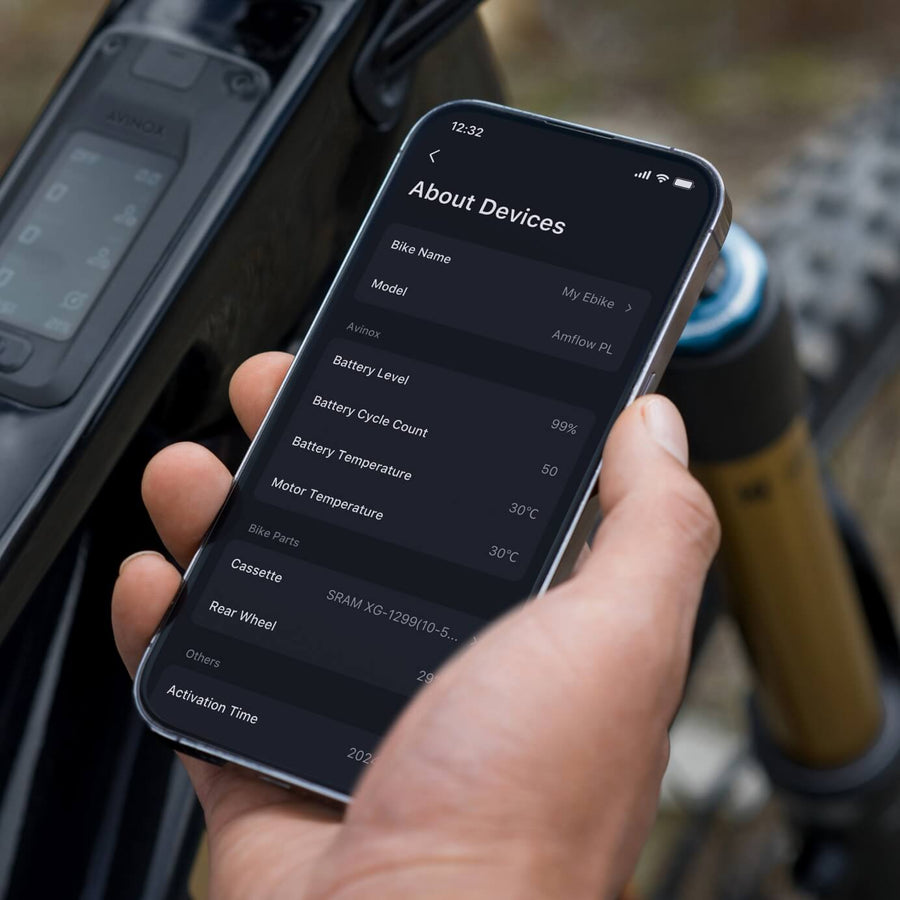

Avinox Ride app
Offline navigation from GPX files, heart-rate controlled assist, custom modes and Strava sync.

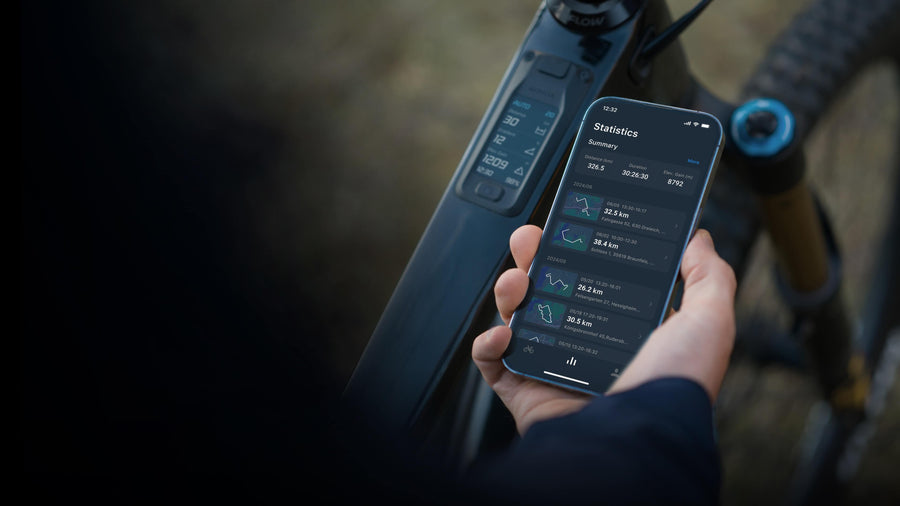

Anti-theft protection
Motion alarms, push alerts, remote locating and a Phone Key that unlocks the bike as you approach.
PL Carbon Pro vs PX Carbon Pro
Proven or brand new?
The PL is Amflow's ultra-light original with the M1 drive and an 800 Wh battery. The new PX steps up to the 150 N·m M2S, adjustable geometry and a lighter 700 Wh setup.
|
You're viewing
 PL Carbon Pro$11,999.00 | ||
|---|---|---|
| Drive unit | Avinox M1, 105 N·m (120 Boost) | Avinox M2S, 150 N·m |
| Peak power | 1000W | 1500W |
| Battery | 800 Wh | 700 Wh |
| Geometry | Flip chip (29" or mullet) | Adjustable, 40 settings |
| Wheels | 29" carbon | 29/27.5 mullet, carbon |
| Weight | 20.2 kg (M) | 20.6 kg (M) |
Size & fit
Find your size
Enter your height for a size recommendation, or come in and we'll fit you in person.
Find your size
Enter your height and we'll recommend a frame size.
| Size | Rider height |
|---|---|
| M | 5'4" – 5'10" (162–178 cm) |
| L | 5'7" – 6'1" (170–185 cm) |
| XL | 5'9" – 6'3" (175–191 cm) |
Sizing from Amflow (M–XL). Amflow doesn't publish a height range for XXL; ask us and we'll help you choose.
Between sizes or unsure? Book a fitting or test ride and we'll help you choose.
Geometry
| Frame size | M | L | XL | XXL |
|---|---|---|---|---|
| Reach | 452 mm | 475 mm | 500 mm | 525 mm |
| Stack | 618 mm | 628 mm | 641 mm | 655 mm |
| Standover | 780 mm | 785 mm | 790 mm | 795 mm |
| Front centre | 782 mm | 810 mm | 844 mm | 873 mm |
| Fork length | 570 mm | 570 mm | 570 mm | 570 mm |
| Wheelbase | 1227 mm | 1255 mm | 1289 mm | 1318 mm |
| Chainstay | 445 mm | 445 mm | 445 mm | 445 mm |
| BB height | 346 mm | 346 mm | 346 mm | 346 mm |
| Effective top tube | 595 mm | 620 mm | 648 mm | 676 mm |
| Head tube angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Head tube length | 105 mm | 115 mm | 130 mm | 145 mm |
| Effective seat tube angle | 77° | 77° | 77° | 77° |
| Seat tube length | 430 mm | 450 mm | 470 mm | 500 mm |
Specifications
Full specs
General
- Weight
- 20.2 kg (size M, tubeless, no pedals)
- Colours
- Satin Silver, Cosmic Black
- Max load
- 125 kg (rider + gear)
E-bike system
- Drive unit
- Avinox M1, 105 N·m (120 N·m in Boost), up to 1000W peak
- Battery
- Avinox 800 Wh integrated
- Range
- Up to 157 km (Amflow test, Eco mode)
- Charger
- Avinox GaN Fast Charger, 12A / 508W (0–75% in about 1.5 h)
- Display
- Avinox 2" OLED touchscreen control display
- Controllers
- Avinox wireless controllers, left and right
- Assist speed
- Pedal assist to 32 km/h (Class 1)
Frame & suspension
- Frame
- Amflow PL Carbon, 150 mm rear travel, 27.5" or 29" rear compatible
- Fork
- FOX 36 Factory, 160 mm, GRIP X2 damper
- Rear shock
- FOX Float X Factory, trunnion 185 x 55 mm, LSC
Drivetrain
- Rear derailleur
- SRAM X0 Eagle Transmission
- Shifter
- SRAM AXS Pod
- Cassette
- SRAM XS-1295, 10-52T
- Chain
- SRAM X0 Eagle Transmission
- Chainring
- SRAM Eagle Transmission 34T
- Crank
- Avinox SL (155 mm M/L, 160 mm XL/XXL)
Brakes
- Brakes
- Magura MT7 Pro, 4-piston, 203 mm Storm HC rotors
Wheels & tires
- Wheels
- Amflow HMC-30 carbon, 29"
- Front tire
- Maxxis Assegai 29 x 2.5" MaxxTerra EXO
- Rear tire
- Maxxis Dissector 29 x 2.4" MaxxTerra EXO+
Components
- Handlebar
- Amflow Enduro Carbon, 800 mm, 25 mm rise
- Stem
- Amflow Enduro CNC stem, 35 mm
- Saddle
- Ergon SM Pro
- Dropper
- Fox Transfer Factory (125–150 mm M, 155–180 mm L/XL, 185–210 mm XXL)
- Lights
- Front and rear lights
Specs from Amflow and subject to change. Weights and range are Amflow figures. The Avinox drive has a rated power of 250W; peak figures are Amflow's. Ask us to confirm the build on bikes arriving in store.
