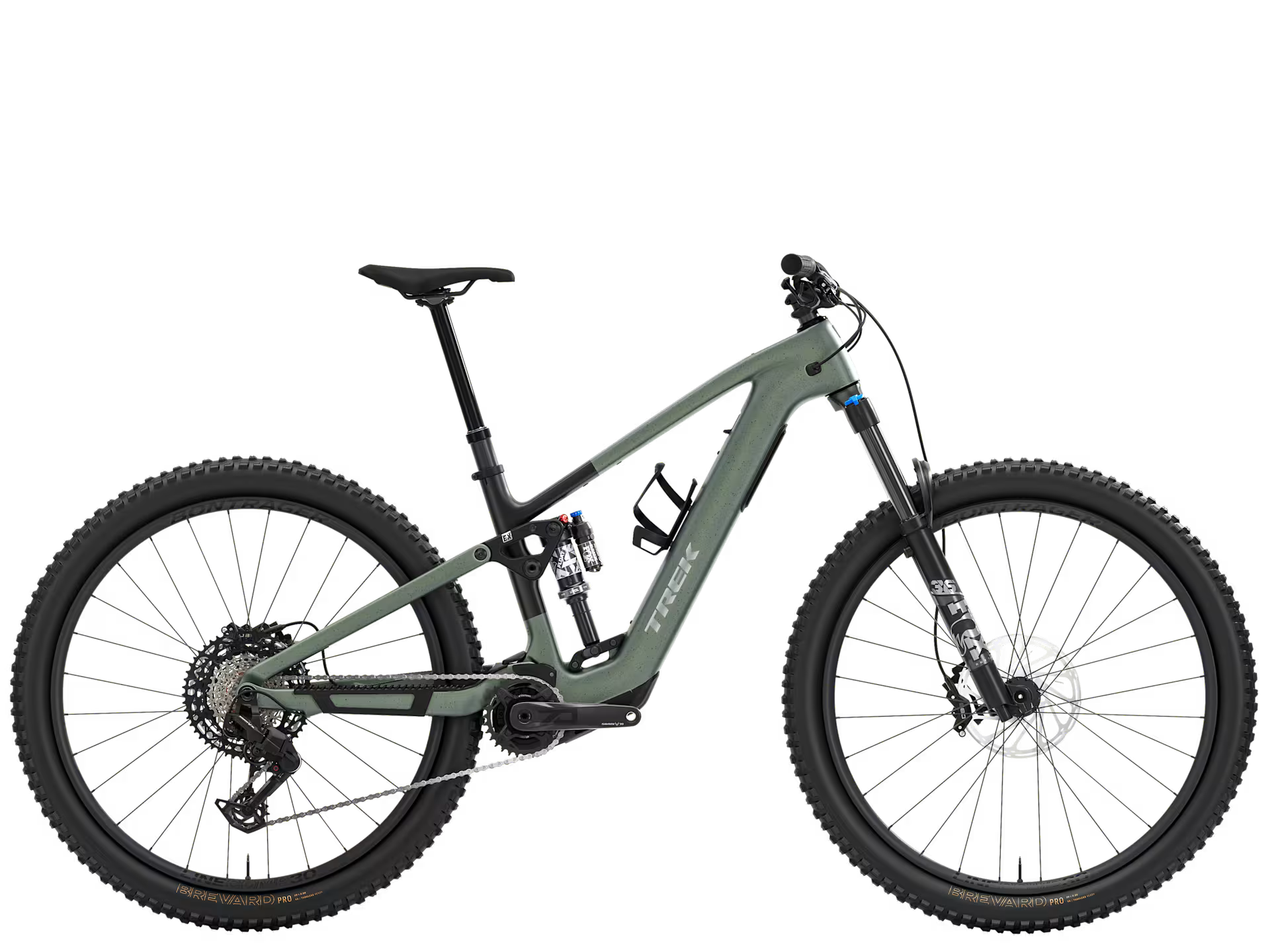

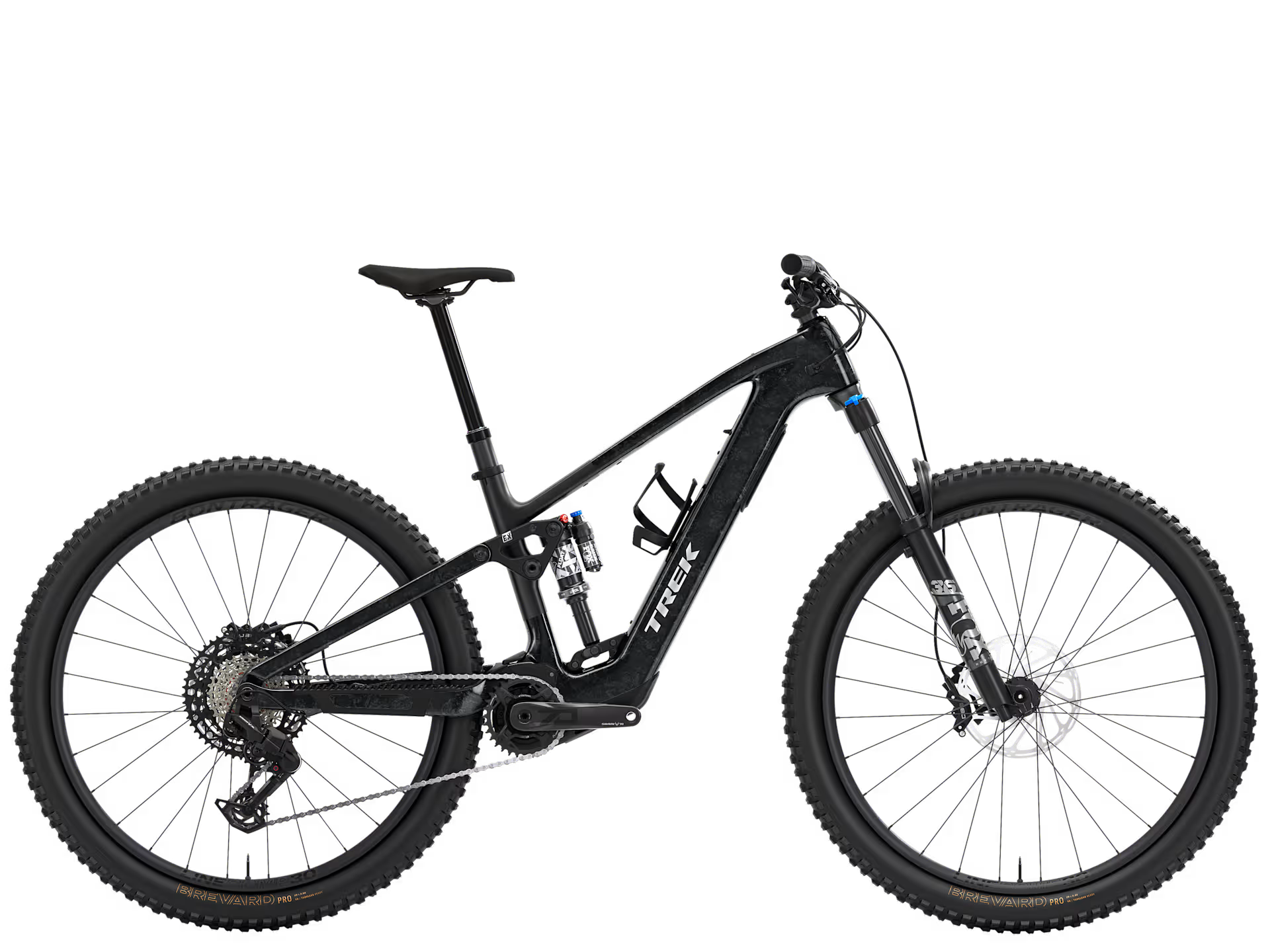

Fuel+ EX 9.7 is a carbon e-MTB that packs in adaptability for any kind of trail and any style of riding. It's equipped with the smooth and quiet boost of TQ's HPR60 motor with a 580Wh battery for bigger rides. You get the perfect balance of price and performance, with components like a Fox Rhythm 36 fork, Fox Performance Float X shock, SRAM Eagle T-Type shifting, and a Bontrager Line dropper post.

*Please note - spec applies to all sizes unless listed separately

Frameset

FrameOCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mmForkFox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travelShockFox Performance Float X, 2-position damper, 205mm x 60mm

Wheels

Hub frontBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axleHub rearBontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axleSkewer rearBontrager Switch thru axle, removable leverRimBontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve*TireSize:SBontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"Size:S, M, L, XL, XXLBontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"Tire partBontrager TLR sealant, 180 ml/6 ozRim stripBontrager TLRMax tire sizeFrame: 29x2.50", Fork: See manufacturer

E-system

BatteryTQ 580WhChargerTQ 4A chargerComputerTQ LED display with Bluetooth & ANT+ connectivityMotorTQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak powerE-bike ClassificationClass 1

Drivetrain

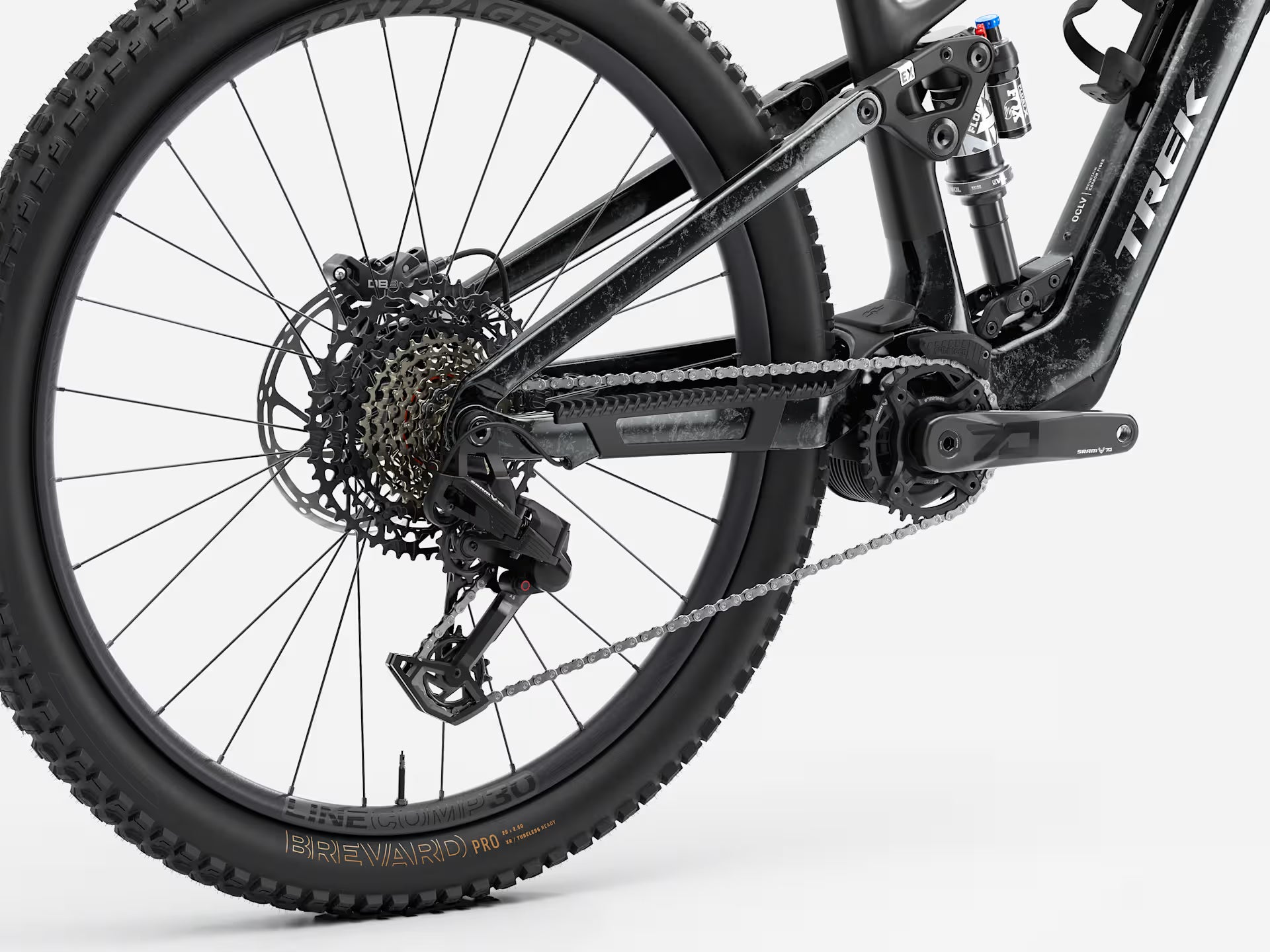

ShifterSRAM Eagle 70, 12 speedRear derailleurSRAM Eagle 70, T-TypeCrankSRAM EAGLE 70, 160mm lengthChain ringSRAM T-Type, 32T, alloyCassetteSRAM Eagle XS-1270, T-Type,10-52, 12 speedChainSRAM Eagle 70, T-Type, 12 speedMax chainring size1x: 34T, min 30T

Components

SaddleBontrager Verse P3, chromoly rails*SeatpostSize:SBontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm lengthSize:MBontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm lengthSize:L, XL, XXLBontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm lengthHandlebarRace Face Turbine, alloy, 35mm, 40mm rise, 780mm widthGripsTrek Line Elite, lock-onStemBontrager Elite, 35mm, 0 degree, 45mm lengthHeadsetFSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crownBrakeSRAM DB 8 4-piston hydraulic discBrake rotorSRAM Centerline 2.0, 6-bolt, 200mmRotor sizeMax brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight

WeightM - 19.73 kg / 43.5 lbs (with TLR sealant, no tubes)Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
