TQ HPR60 motor
60 Nm of smooth, quiet support in a compact package.
Trek
View store information

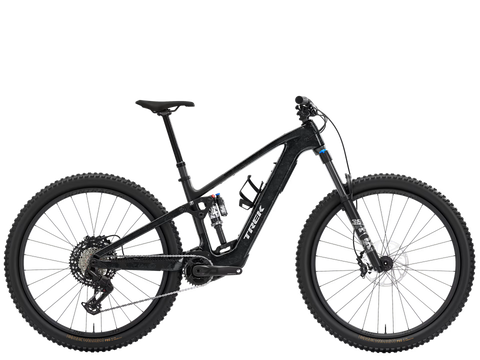

Fuel+ EX 9.7 Gen 2
A lightweight carbon e-MTB with a quiet TQ motor that rides like a regular trail bike, just with a boost.
Sale price
$7,999.00
Regular price
$10,999.00
Sold out
27% Off
Unit price
/
Shipping calculated at checkout.
Test ride in Red DeerTry it at our Gasoline Alley shop
Financing availableAsk us about monthly payments
Trek warrantyLimited lifetime frame warranty for the original owner
Local service & supportOur service team is right here in Red Deer
Pickup available at WeLive — Red Deer (Gasoline Alley)
Usually ready in 24 hours
Color: Carbon Smoke/Lithium Grey Marble , Size: M
Pickup available,
WeLive — Red Deer (Gasoline Alley)
Pickup available, usually ready in 24 hours
179 Leva Avenue
103B
Red Deer County AB T4E 1B9
Canada
Fuel+ EX 9.7 is a carbon e-MTB that packs in adaptability for any kind of trail and any style of riding. It's equipped with the smooth and quiet boost of TQ's HPR60 motor with a 580Wh battery for bigger rides. You get the perfect balance of price and performance, with components like a Fox Rhythm 36 fork, Fox Performance Float X shock, SRAM Eagle T-Type shifting, and a Bontrager Line dropper post.
Motor
TQ HPR60
60 Nm · quiet and compact
Battery
580 Wh
Removable
Speed
Class 1
Pedal assist to 32 km/h
Travel
150 / 145–160 mm
Fox 36 + Float X
Drivetrain
SRAM Eagle 70
T-Type 12-speed
Weight
19.73 kg
Size M
Trek warrantyLimited lifetime frame warranty
Local serviceOur Red Deer service team
Test rides in Red DeerGasoline Alley
Financing availableAsk in store
Natural assist
Feels like your trail bike, only faster
The TQ HPR60 motor is small, light and almost silent, so the bike feels natural on the trail while giving you a real boost on climbs.
580 Wh removable battery
Plenty of range for big trail days, and it comes out for charging.
Integrated TQ display
A clean top-tube display with Bluetooth and ANT+ connectivity.
19.73 kg (size M)
Light enough to feel playful, and easy to lift onto a rack.
Adjustable trail bike
Tune it to the way you ride
An OCLV Mountain Carbon frame with adjustable geometry and travel lets you set the bike up for flowy trail or steeper terrain.
Adaptable travel, 145–160 mm
Interchangeable links and shock mount let you change travel and leverage rate.
Angle-adjust headset
Change the head angle to suit your trails.
Fox Rhythm 36 + Float X
150 mm up front and a 2-position Float X shock out back.
Frame protection
Downtube and shuttle guards protect the carbon frame.
Fuel+ EX 9.7 vs Rail+ 9.7
Light assist or full power?
Both are carbon e-MTBs with around 150–160 mm of travel. The Fuel+ EX is lighter and more natural-feeling; the Rail+ has more motor power and a bigger battery.
|
You're viewing
 Fuel+ EX 9.7$7,999.00 | ||
|---|---|---|
| Motor | TQ HPR60, 60 Nm | Bosch Performance Line CX |
| Battery | 580 Wh | 800 Wh |
| Travel (front / rear) | 150 / 145–160 mm | 160 / 160 mm |
| Fork | Fox Rhythm 36 | RockShox ZEB Select |
| Drivetrain | SRAM Eagle 70 T-Type | Shimano SLX / XT |
| Weight | 19.73 kg (size M) | 23.73 kg (size M) |
Size & fit
Let's get you fit
Enter your height to get a size recommendation, or come in and we'll fit you in person.
Find your size
Enter your height and we'll recommend a frame size.
| Size | Rider height | Inseam |
|---|---|---|
| S | 5'1" – 5'5" (155–165 cm) | 29–31" (74–78 cm) |
| M | 5'5" – 5'10" (165–177 cm) | 31–33" (79–83 cm) |
| L | 5'10" – 6'2" (177–188 cm) | 33–35" (84–89 cm) |
| XL | 6'2" – 6'5" (188–195 cm) | 35–36" (89–91 cm) |
| XXL | 6'5" – 6'8" (195–203 cm) | 36–38" (91–97 cm) |
Sizing is a guide. Reach, arm length and riding style matter too, so a quick test ride is the best way to confirm.
Between sizes or unsure? Book a fitting or test ride and we'll help you choose.
Geometry
| Frame size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Frame size | 15.5" | 17.5" | 19.5" | 21.5" | 23" |
| A – Seat tube | 370 mm | 400 mm | 420 mm | 455 mm | 475 mm |
| Effective seat tube angle | 78.2° | 77.8° | 77.3° | 76.9° | 76.4° |
| C – Head tube length | 110 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| D – Head angle | 64.6° | 64.5° | 64.5° | 64.5° | 64.5° |
| E – Effective top tube | 559 mm | 589 mm | 613 mm | 651 mm | 680 mm |
| G – Bottom bracket drop | 34 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| H – Chainstay length | 441 mm | 444 mm | 444 mm | 447 mm | 452 mm |
| I – Fork offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Trail | 129 mm | 129 mm | 129 mm | 129 mm | 129 mm |
| K – Wheelbase | 1200 mm | 1232 mm | 1258 mm | 1298 mm | 1330 mm |
| L – Standover | 754 mm | 747 mm | 750 mm | 755 mm | 764 mm |
| M – Reach | 431 mm | 460 mm | 485 mm | 510 mm | 530 mm |
| N – Stack | 624 mm | 624 mm | 638 mm | 651 mm | 665 mm |
| Wheel size | 29"/27.5" | 29" | 29" | 29" | 29" |
Specifications
Full specs
General
- Weight
- 19.73 kg (43.5 lb), size M
- Max total weight
- 136 kg (300 lb), bike + rider + cargo
Frameset
- Frame
- OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
- Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel
- Shock
- Fox Performance Float X, 2-position damper, 205mm x 60mm
Wheels
- Rim
- Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
- Tire
- Size S: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" / Sizes S, M, L, XL, XXL: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
E-bike system
- Battery
- TQ 580Wh
- Computer
- TQ LED display with Bluetooth & ANT+ connectivity
- Motor
- TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
- E-bike Classification
- Class 1
- Max assist speed
- 32 km/h
Drivetrain
- Shifter
- SRAM Eagle 70, 12 speed
- Rear derailleur
- SRAM Eagle 70, T-Type
- Crank
- SRAM EAGLE 70, 160mm length
- Chain ring
- SRAM T-Type, 32T, alloy
- Cassette
- SRAM Eagle XS-1270, T-Type,10-52, 12 speed
Components
- Saddle
- Bontrager Verse P3, chromoly rails
- Seatpost
- Size S: Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length / Size M: Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length / Sizes L, XL, XXL: Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 510mm length
- Handlebar
- Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
- Stem
- Bontrager Elite, 35mm, 0 degree, 45mm length
- Brake
- SRAM DB 8 4-piston hydraulic disc
- Brake rotor
- SRAM Centerline 2.0, 6-bolt, 200mm
Specs from Trek and subject to change. Weights are for a size M bike.
Gear up
Compatible accessories
Protect yourself and keep your ride dialled.
Test rides in Red Deer
Ride it before you buy it
Come see the Fuel+ EX 9.7 at our Gasoline Alley shop. We'll help you pick the right size, set it up for you and get you out for a test ride.
