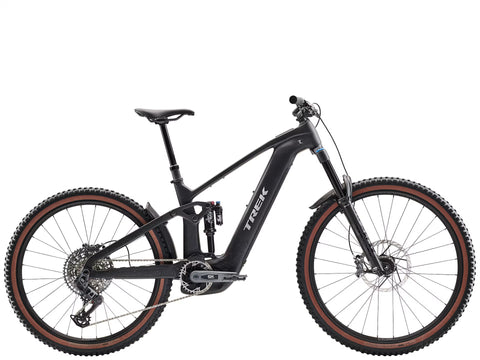

Name: Rail+ 9.8 GX AXS T-Type Gen 5
Brand: Trek
SKU: 5328979
Price: 9999.0 CAD
Availability: OutOfStock

Trek

Rail+ 9.8 GX AXS T-Type Gen 5

Trek's full-power carbon enduro e-MTB, with Fox Performance Elite suspension and wireless SRAM GX AXS shifting.

$9,999.00 $12,999.00 23% Off Shipping calculated at checkout.

Color: Deep Smoke

Size

Product variants

Not sure of your size? Use our fit tool

Test ride in Red DeerTry it at our Gasoline Alley shop

Financing availableAsk us about monthly payments

Trek warrantyLimited lifetime frame warranty for the original owner

Local service & supportOur service team is right here in Red Deer

Pickup available at WeLive — Red Deer (Gasoline Alley)

Usually ready in 24 hours

View store information

Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps. It starts out with a hard-hitting OCLV Mountain Carbon frame that partners with 160mm of front and rear travel from a Fox Performance Elite suspension package to eat up deep roots and chunky rock lines. A 12-speed wireless SRAM GX Eagle transmission keeps shifting smooth, even under serious load, while SRAM Maven Bronze 4-piston brakes provide the stopping power you need. It's finished off with a Bontrager Line dropper post and Bontrager Line Comp 30 tubeless-ready wheels for charging into anything.

Motor

Bosch CX

Performance Line CX · smart system

Battery

800 Wh

Removable PowerTube

Speed

Class 1

Pedal assist to 32 km/h

Travel

160 / 160 mm

Fox 38 + Float X

Drivetrain

GX AXS T-Type

Wireless 12-speed

Weight

24.18 kg

Size M

Trek warrantyLimited lifetime frame warranty

Local serviceOur Red Deer service team

Test rides in Red DeerGasoline Alley

Financing availableAsk in store

Bosch smart system

Full power for the biggest climbs

The Bosch Performance Line CX motor and an 800 Wh battery give you the power and range to ride more trail in a day.

Bosch Performance Line CX

Bosch's most powerful eMTB motor, tuned for natural, responsive assist on technical climbs.

800 Wh PowerTube battery

Big capacity for long days. The Removable Integrated Battery (RIB 2.0) slides out for charging off the bike.

Kiox 400C + System Controller

A compact colour display and bar-mounted controller keep ride info and assist modes at your thumb.

Bosch smart system

Connect to the Bosch Flow app for ride stats, updates and custom assist settings.

Enduro-ready

160 mm of travel, front and rear

Long-travel suspension and mixed wheel sizes let you ride steep, rough trail with confidence.

Fox Float 38 Performance Elite

Stiff, controlled and ready for big hits.

Fox Float X Performance Elite

Supple on small bumps with support when you push hard.

Mullet wheels (M–XL)

A 29" front rolls over obstacles while a 27.5" rear keeps it playful. Size S rolls 27.5" front and rear.

OCLV Mountain Carbon frame

Trek's carbon layup keeps weight down while standing up to hard enduro riding.

Built to last

Details that keep you riding

Protection, clean routing and trail-worthy parts mean less time fixing and more time riding.

Motor Armor

A tough guard protects the motor from rock strikes.

Guided internal routing

Clean, quiet cable routing that's easy for our service team to work on.

Bontrager Line dropper

Get the saddle out of the way on descents: up to 200 mm of drop depending on size.

Rail+ 9.8 vs Rail+ 9.7

Which carbon Rail+ is right for you?

Both share the same carbon frame, Bosch CX motor and 800 Wh battery. The 9.8 steps up to Fox suspension, wireless AXS shifting, Maven brakes and a carbon bar.

	You're viewingRail+ 9.8$9,999.00	Rail+ 9.7$7,999.00View this bike →
Frame	OCLV Mountain Carbon	OCLV Mountain Carbon
Fork	Fox Performance Elite Float 38, 160 mm	RockShox ZEB Select, 160 mm
Shock	Fox Performance Elite Float X	RockShox Super Deluxe Select RT
Drivetrain	SRAM GX Eagle AXS T-Type (wireless)	Shimano SLX / XT 12-speed
Brakes	SRAM Maven Bronze 4-piston, 220/200 mm	SRAM DB 8 4-piston, 200 mm
Handlebar	Bontrager Line Pro carbon	Bontrager Line alloy
Weight	24.18 kg (size M)	23.73 kg (size M)
Motor & battery	Bosch CX · 800 Wh	Bosch CX · 800 Wh

Size & fit

Let's get you fit

Enter your height to get a size recommendation, or come in and we'll fit you in person.

Find your size

Enter your height and we'll recommend a frame size.

Feet Inches

Size	Rider height	Inseam
Small	5'1" – 5'5" (155–165 cm)	29–31" (74–78 cm)
Medium	5'5" – 5'10" (165–177 cm)	31–33" (79–83 cm)
Large	5'10" – 6'2" (177–188 cm)	33–35" (84–89 cm)
XL	6'2" – 6'5" (188–195 cm)	35–36" (89–91 cm)

Sizing is a guide. Reach, arm length and riding style matter too, so a quick test ride is the best way to confirm.

Between sizes or unsure? Book a fitting or test ride and we'll help you choose.

Geometry

Frame size	S	M	L	XL
Frame size	15.5"	17.5"	19.5"	21.5"
A – Seat tube	380 mm	410 mm	435 mm	470 mm
Effective seat tube angle	77.9°	77.7°	77.5°	77.4°
C – Head tube length	100 mm	100 mm	120 mm	145 mm
D – Head angle	65.0°	65.0°	65.0°	64.9°
E – Effective top tube	562 mm	591 mm	638 mm	669 mm
G – Bottom bracket drop	12 mm	18 mm	17 mm	17 mm
H – Chainstay length	446 mm	446 mm	446 mm	446 mm
I – Fork offset	43 mm	43 mm	43 mm	43 mm
J – Trail	119 mm	127 mm	127 mm	127 mm
K – Wheelbase	1201 mm	1229 mm	1277 mm	1313 mm
L – Standover	763 mm	775 mm	775 mm	798 mm
M – Reach	435 mm	455 mm	495 mm	520 mm
N – Stack	594 mm	627 mm	645 mm	668 mm
Wheel size	27.5"	29"/27.5"	29"/27.5"	29"/27.5"

Specifications

Full specs

General

Weight: 24.18 kg (53.31 lb), size M
Max total weight: 136 kg (300 lb), bike + rider + cargo
Fender: Trek custom fender

Frameset

Frame: OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travel
Fork: Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt-X axle, 160mm travel
Shock: Fox Performance Elite Float X, 2-position damper, 205mm x 65mm

Wheels

Wheel front: Size S: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5'' / Sizes M, L, XL: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''
Tire: Sizes S, M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50" / Sizes M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"
Max tire size: Frame: 27.5x2.60", Fork: See manufacturer

E-bike system

Battery: Bosch PowerTube 800Wh, smart system
Controller: Bosch System Controller Kiox400C, smart system
Motor: Bosch Performance Line CX
E-bike Classification: Class 1
Max assist speed: 32 km/h

Drivetrain

Shifter: SRAM AXS POD
Rear derailleur: SRAM GX Eagle AXS, T-Type
Crank: SRAM GX, 160mm length
Chain ring: SRAM T-Type, 34T, steel
Cassette: SRAM Eagle XS-1275, T-Type,10-52, 12 speed

Components

Saddle: Verse Short Comp, steel rails, 145mm width
Seatpost: Size S: Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length / Sizes M, L, XL: Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length / Sizes L, XL: Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 510mm length
Handlebar: Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Stem: Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
Brake: SRAM Maven Bronze 4-piston hydraulic disc
Brake rotor: Sizes S, M, L, XL: SRAM HS2, 6-bolt, 220mm / Sizes S, M, L, XL: SRAM HS2, 6-bolt, 200mm

Specs from Trek and subject to change. Weights are for a size M bike.
