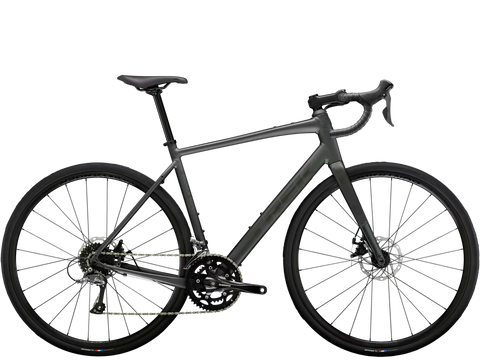

Name: Domane AL 2 Gen 4
Brand: Trek
SKU: 5301346
Price: 1499.99 CAD
Availability: OutOfStock

Trek

Domane AL 2 Gen 4

An easy-riding aluminum road bike for fitness, group rides and your first century.

$1,499.99 Shipping calculated at checkout.

Color: Matte Lithium Grey

Size

Product variants

Not sure of your size? Use our fit tool

Test ride in Red DeerTry it at our Gasoline Alley shop

Financing availableAsk us about monthly payments

Trek warrantyLimited lifetime frame warranty for the original owner

Local service & supportOur service team is right here in Red Deer

Pickup available at WeLive — Red Deer (Gasoline Alley)

Usually ready in 24 hours

View store information

Domane AL 2 is a speedy and versatile performance road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminum frame, clearance for larger tires, an 8-speed Shimano Claris drivetrain, rack, fender, and top tube mounts, and a comfortable all-day riding position — Domane AL 2 is perfect for group rides, fast commutes, and even venturing beyond paved paths to most gravel roads..

Frame

Alpha Aluminum

Carbon fork

Drivetrain

Shimano Claris

2x8-speed

Brakes

Mechanical disc

Tektro

Tires

32 mm

Bontrager R1

Mounts

Fender ready

Weight

10.55 kg

Size 56

Trek warrantyLimited lifetime frame warranty

Local serviceOur Red Deer service team

Test rides in Red DeerGasoline Alley

Financing availableAsk in store

Endurance road

A comfortable first road bike

A 100 Series Alpha Aluminum frame and carbon fork with endurance geometry for a relaxed, confident ride.

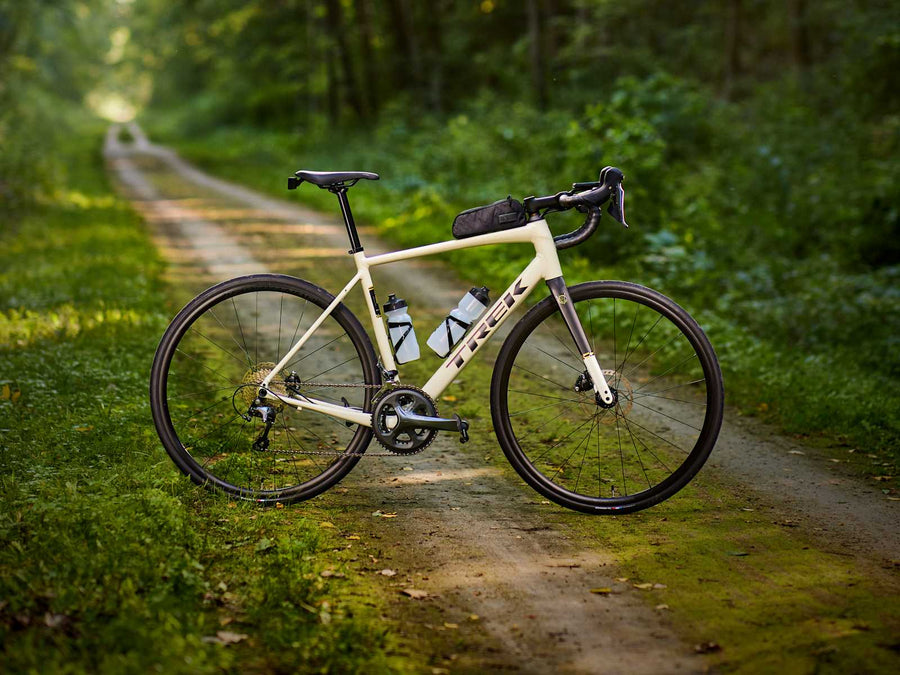

100 Series Alpha Aluminum

Light, durable and made for mile after mile.

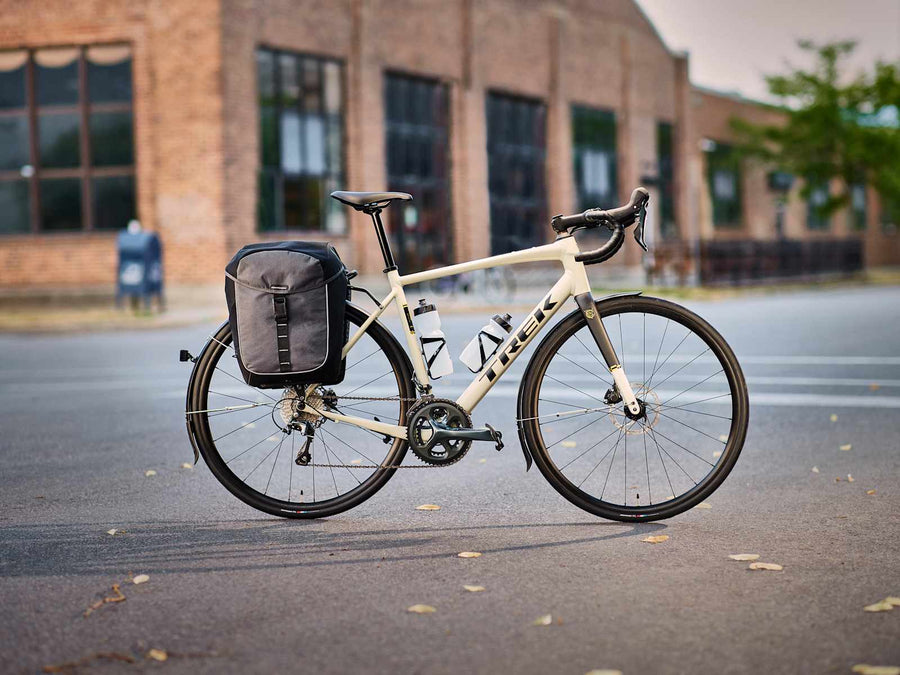

Endurance geometry

A slightly taller front end keeps you comfortable on long rides.

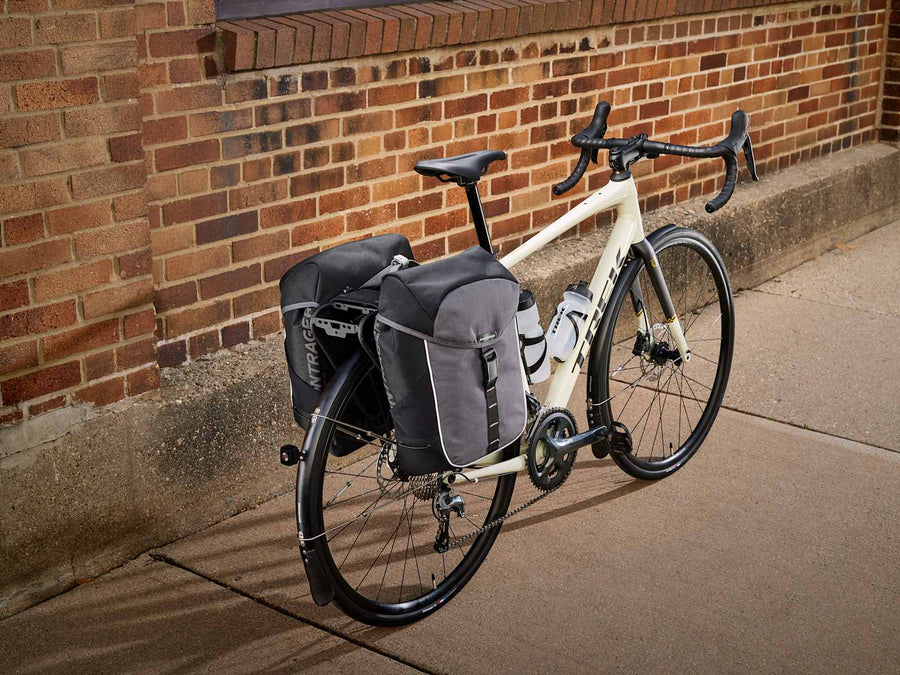

Fender mounts

Ride through the wet or commute year-round.

Reliable parts

Everything you need to start riding

Dependable Shimano shifting and disc brakes for all-weather stopping.

Shimano Claris 2x8

Simple, reliable shifting with an easy 34x32 climbing gear.

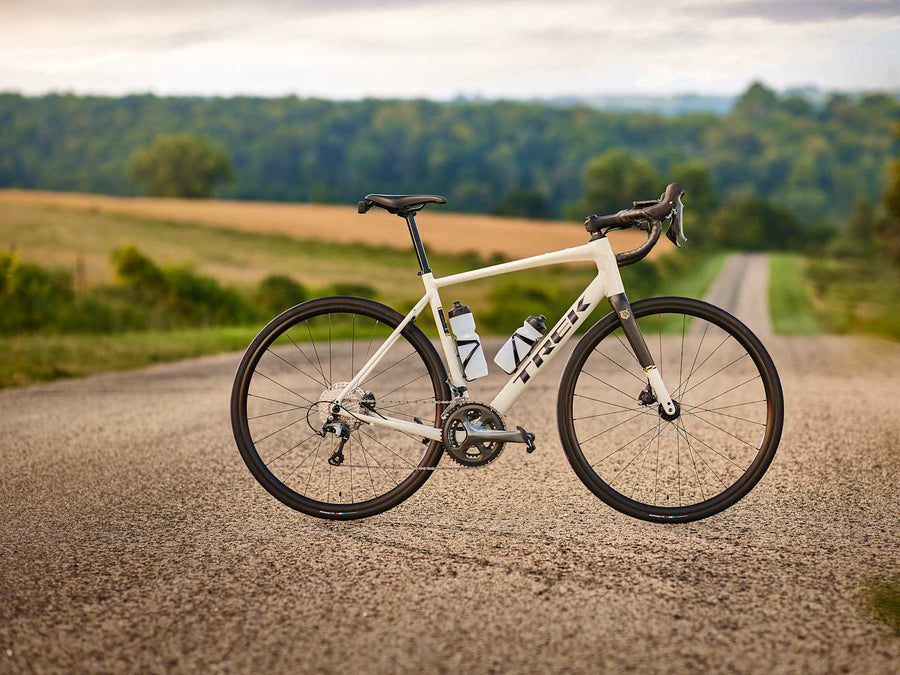

Tektro mechanical disc brakes

Consistent stopping in the wet, and easy to service.

32 mm tires

Wider tires for comfort and grip on rough roads.

Domane AL 2 vs AL 4

Which Domane AL is right for you?

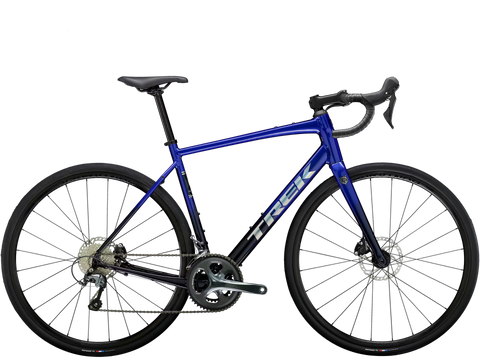

Same comfortable aluminum frame and carbon fork. The AL 4 moves up to 10-speed Shimano Tiagra and hydraulic disc brakes.

	You're viewingDomane AL 2$1,499.99	Domane AL 4$2,229.99View this bike →
Shifting	Shimano Claris 2x8	Shimano Tiagra 2x10
Gearing	11–32	11–32
Brakes	Tektro mechanical disc	Shimano Tiagra hydraulic disc
Frame	100 Series Alpha Aluminum	100 Series Alpha Aluminum
Fork	Carbon	Carbon
Weight	10.55 kg (size 56)	10.35 kg (size 56)

Size & fit

Let's get you fit

Enter your height to get a size recommendation, or come in and we'll fit you in person.

Find your size

Enter your height and we'll recommend a frame size.

Feet Inches

Size	Rider height	Inseam
44	4'11" – 5'0" (150–153 cm)	28–29" (71–73 cm)
49	5'1" – 5'4" (156–163 cm)	29–30" (74–77 cm)
52	5'4" – 5'6" (163–168 cm)	30–31" (76–79 cm)
54	5'6" – 5'9" (168–174 cm)	31–32" (78–82 cm)
56	5'9" – 5'11" (174–180 cm)	32–33" (81–85 cm)
58	5'11" – 6'1" (180–185 cm)	33–34" (84–87 cm)
61	6'1" – 6'3" (185–191 cm)	34–35" (86–90 cm)

Sizing is a guide. Reach, arm length and riding style matter too, so a quick test ride is the best way to confirm.

Between sizes or unsure? Book a fitting or test ride and we'll help you choose.

Geometry

Frame size	44cm	49cm	52cm	54cm	56cm	58cm	61cm
A – Seat tube	390 mm	440 mm	475 mm	500 mm	525 mm	548 mm	576 mm
C – Head tube length	95 mm	123 mm	145 mm	160 mm	175 mm	195 mm	235 mm
D – Head angle	70.3°	70.8°	71.3°	71.3°	71.9°	72.0°	72.1°
E – Effective top tube	507 mm	516 mm	530 mm	542 mm	554 mm	567 mm	586 mm
G – Bottom bracket drop	80 mm	80 mm	80 mm	80 mm	78 mm	78 mm	75 mm
H – Chainstay length	420 mm	425 mm	420 mm	420 mm	420 mm	425 mm	425 mm
I – Fork offset	53 mm	53 mm	53 mm	53 mm	48 mm	48 mm	48 mm
J – Trail	66 mm	66 mm	59 mm	59 mm	61 mm	60 mm	63 mm
K – Wheelbase	983 mm	1001 mm	1003 mm	1010 mm	1018 mm	1022 mm	1038 mm
L – Standover	657 mm	717 mm	735 mm	754 mm	776 mm	796 mm	842 mm
M – Reach	360 mm	368 mm	371 mm	374 mm	377 mm	380 mm	385 mm
N – Stack	510 mm	540 mm	561 mm	575 mm	591 mm	611 mm	646 mm
Wheel size	700c	700c	700c	700c	700c	700c	700c

Specifications

Full specs

General

Weight: 10.55 kg (23.26 lb), size 56
Max total weight: 125 kg (275 lb), bike + rider + cargo

Frameset

Frame: 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork: Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Drivetrain

Shifter: Shimano Claris ST-R2000, 8 speed
Front derailleur: Shimano Claris R2000, 31.8 mm clamp
Rear derailleur: Shimano Claris R2000, medium cage, 34T max cog
Crank: Size 44: Shimano RS200, 50/34 (compact), 165 mm length / Sizes 49, 52, 54: Shimano RS200, 50/34 (compact), 170 mm length / Sizes 56, 58, 61: Shimano RS200, 50/34 (compact), 175 mm length
Cassette: Shimano HG31, 11-32, 8 speed

Wheels

Skewer front: Bontrager Switch chamfered thru axle
Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm

Components

Saddle: Verse Short, steel rails, 145mm width
Seatpost: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm (sizes 44, 49) or 330 mm length
Handlebar: Bontrager Comp, alloy, 31.8 mm, width matched to frame size
Handlebar tape: Bontrager Supertack Perf tape
Stem: Size 44: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length / Size 49: 80mm length / Sizes 52, 54: 90mm length / Sizes 56, 58: 100mm length / Size 61: 110mm length
Brake: Tektro C550 mechanical disc brake, dual piston, flat mount
Brake rotor: Tektro wave, 6-bolt, 160mm

Specs from Trek and subject to change. Weights are for the size listed.
