Trek

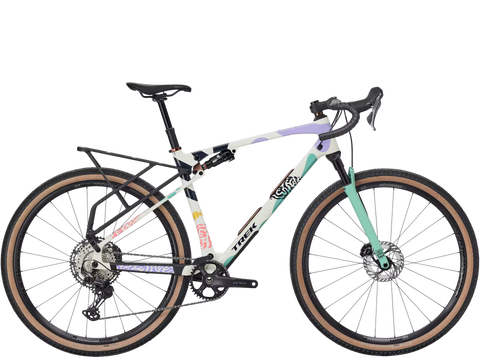

CheckOUT SL 5

A carbon gravel bike with front and rear suspension, a dropper post and room for 55 mm tires.

$7,499.99 Shipping calculated at checkout.

Color: Era White/Blue Sage

Size

Product variants

Not sure of your size? Use our fit tool

Test ride in Red DeerTry it at our Gasoline Alley shop

Financing availableAsk us about monthly payments

Trek warrantyLimited lifetime frame warranty for the original owner

Local service & supportOur service team is right here in Red Deer

Pickup available at WeLive — Red Deer (Gasoline Alley)

Usually ready in 24 hours

View store information

CheckOUT SL 5 is an adventure-ready full suspension gravel bike for getting way, way out there. Its carbon frame delivers 55mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain, and TranzX dropper post.

Frame

OCLV Carbon

500 Series

Travel

60 / 55 mm

RockShox Rudy + SIDluxe

Drivetrain

Shimano GRX

12-speed, 10–51

Tires

55 mm

Betasso RSL GX

Dropper

100 mm

TranzX

Weight

11.97 kg

Size ML

Trek warrantyLimited lifetime frame warranty

Local serviceOur Red Deer service team

Test rides in Red DeerGasoline Alley

Financing availableAsk in store

Suspended gravel

Ride rougher roads with more control

Front and rear suspension and big tires let you ride chunky gravel and light trail with confidence.

RockShox Rudy XL, 60 mm

A gravel-specific fork that smooths out rough roads.

55 mm rear travel

A RockShox SIDluxe shock takes the edge off without feeling like a mountain bike.

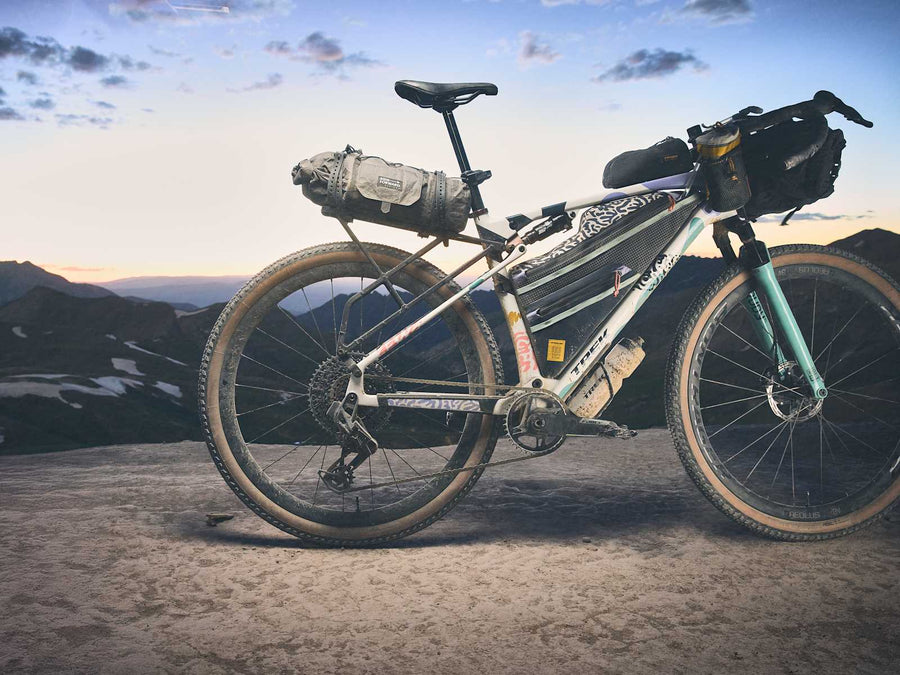

55 mm tires

Bontrager Betasso RSL GX tubeless-ready tires for grip and comfort.

100 mm dropper

Drop the saddle for steep, loose descents.

Adventure ready

Built to carry what you need

An integrated rear rack and frame bag mounts are ready for long days and overnights.

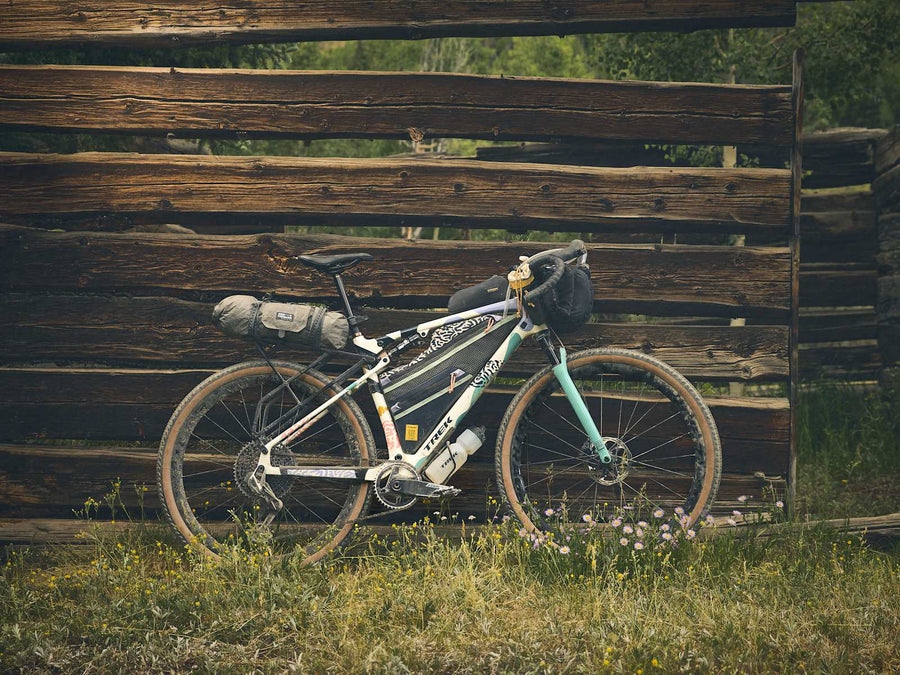

Integrated rear rack

Carry bags and gear without extra hardware.

Frame bag mounts

Add bags for longer rides and bikepacking.

Shimano GRX 12-speed

A huge 10–51 range for steep climbs.

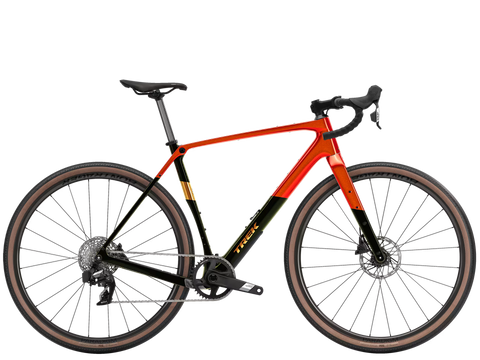

CheckOUT SL 5 vs Checkpoint SL 5

Suspended or rigid gravel?

Both are carbon gravel bikes. The CheckOUT adds front and rear suspension, a dropper and bigger tires; the Checkpoint is lighter and faster on smoother gravel.

	You're viewingCheckOUT SL 5$7,499.99	Checkpoint SL 5 AXS$4,299.99View this bike →
Suspension	60 mm fork / 55 mm rear	Rigid, IsoSpeed
Tires	55 mm	42 mm (50 mm max)
Drivetrain	Shimano GRX 12-speed, 10–51	SRAM Apex AXS 12-speed, 11–44
Dropper post	100 mm	No
Rear rack	Integrated	Mounts
Weight	11.97 kg (size ML)	9.50 kg (size ML)

Size & fit

Let's get you fit

Enter your height to get a size recommendation, or come in and we'll fit you in person.

Find your size

Enter your height and we'll recommend a frame size.

Feet Inches

Size	Rider height	Inseam
S	5'2" – 5'5" (158–164 cm)	29–30" (74–77 cm)
M	5'5" – 5'10" (164–177 cm)	30–33" (77–83 cm)
ML	5'10" – 6'2" (177–188 cm)	33–35" (83–88 cm)
L	6'2" – 6'4" (188–194 cm)	35–36" (88–91 cm)
XL	6'4" – 6'8" (194–203 cm)	36–37" (91–95 cm)

Sizing is a guide. Reach, arm length and riding style matter too, so a quick test ride is the best way to confirm.

Between sizes or unsure? Book a fitting or test ride and we'll help you choose.

Geometry

Frame size	S	M	ML	L	XL
A – Seat tube	440 mm	470 mm	520 mm	540 mm	560 mm
C – Head tube length	94 mm	133 mm	149 mm	170 mm	193 mm
D – Head angle	68.8°	69.0°	69.4°	69.5°	69.4°
E – Effective top tube	564 mm	589 mm	597 mm	613 mm	628 mm
G – Bottom bracket drop	70 mm	70 mm	70 mm	68 mm	68 mm
H – Chainstay length	442 mm	442 mm	442 mm	442 mm	442 mm
I – Fork offset	45 mm	45 mm	45 mm	45 mm	45 mm
J – Trail	92 mm	91 mm	88 mm	88 mm	88 mm
K – Wheelbase	1081 mm	1105 mm	1117 mm	1135 mm	1150 mm
L – Standover	772 mm	804 mm	838 mm	846 mm	852 mm
M – Reach	395 mm	407 mm	417 mm	427 mm	435 mm
N – Stack	580 mm	617 mm	634 mm	652 mm	673 mm
Wheel size	700c	700c	700c	700c	700c

Specifications

Full specs

General

Weight: 11.97 kg (26.39 lb), size ML
Max total weight: 125 kg (275 lb), bike + rider + cargo
Cargo rack: Checkout rear rack
Bracket: Trek Adjustable Multi-Mount

Frameset

Frame: 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12mm chamfered thru axle, 55mm travel
Fork: RockShox Rudy XL Ultimate, Charger Race Day 2, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 60mm travel
Shock: RockShox SIDluxe Ultimate 3P, 170mm x 27.5mm

Drivetrain

Shifter: Shimano GRX RX820, 12 speed
Rear derailleur: Shimano GRX RX822, 51T max cog
Crank: Size S: Shimano GRX RX610, 38T, 165mm length / Sizes M, ML: 170mm length / Sizes L, XL: 172.5mm length
Cassette: Shimano XT M8200, 10-51, 12 speed

Wheels

Wheel front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano Micro Spline freehub, 142x12 thru axle
Tire: Bontrager Betasso RSL GX, Tubeless Ready, aramid bead, 60 tpi, 700x55mm
Max tire size: 56mm/2.20" (as measured, see manual for details)

Components

Saddle: Verse Short Comp, steel rails, 145mm width
Seatpost: TranzX JD-YSI36 dropper, 100mm travel, internal routing, 31.6mm, 328mm length
Handlebar: Bontrager GR Checkout: 42cm (S), 44cm (M), 46cm (ML, L), 48cm (XL)
Handlebar tape: Bontrager Supertack Perf tape
Stem: Sizes S, M: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length / Sizes ML, L: 70mm length / Size XL: 80mm length
Brake rotor: Shimano CL800, centerlock, 160mm

Specs from Trek and subject to change. Weights are for the size listed.
