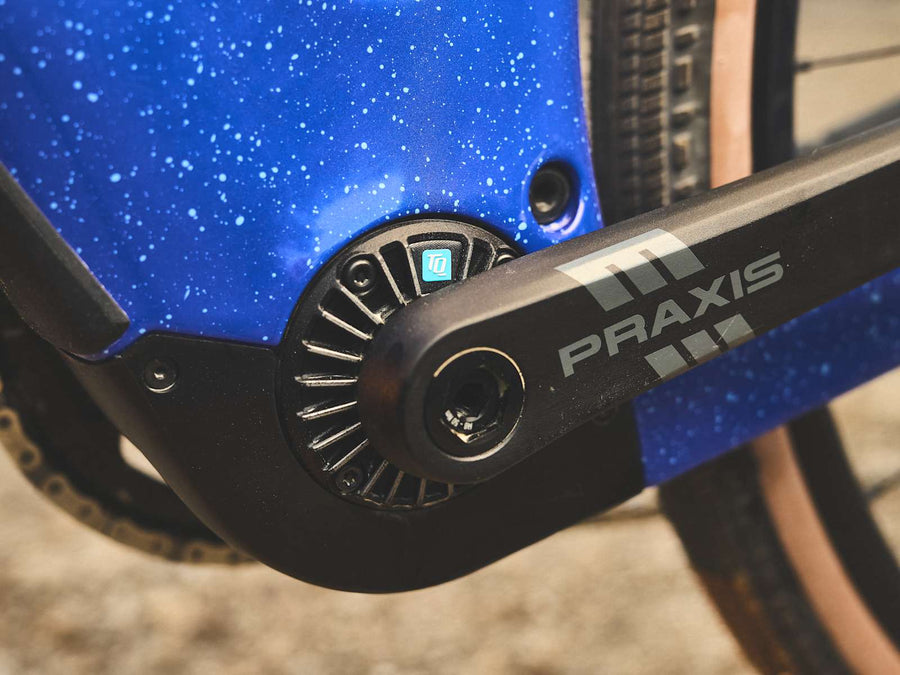

TQ HPR60 motor
60 Nm of quiet, natural-feeling assist that's hidden in the frame.
Trek
View store information
Checkpoint+ SL 6 AXS
A carbon electric gravel bike with a quiet TQ motor, wireless AXS shifting and room for 50 mm tires.
Sale price
$6,999.99
Regular price
$7,999.00
Sold out
12% Off
Unit price
/
Shipping calculated at checkout.
Test ride in Red DeerTry it at our Gasoline Alley shop
Financing availableAsk us about monthly payments
Trek warrantyLimited lifetime frame warranty for the original owner
Local service & supportOur service team is right here in Red Deer
Pickup available at WeLive — Red Deer (Gasoline Alley)
Usually ready in 24 hours
Color: Fjord Blue/Cobalt Blue , Size: ML
Pickup available,
WeLive — Red Deer (Gasoline Alley)
Pickup available, usually ready in 24 hours
179 Leva Avenue
103B
Red Deer County AB T4E 1B9
Canada
Checkpoint+ SL 6 AXS is an electric gravel bike built for the long, long haul. You get a virtual tailwind on every climb thanks to a TQ HPR60 motor with a smooth and quiet boost, while the 360Wh battery keeps you rolling as the miles stack up. Its OCLV Carbon frame comes speced for adventure, with durable alloy wheels and a 12-speed SRAM GX AXS transmission that keeps shifts clean, even under load..
Motor
TQ HPR60
60 Nm · near-silent
Battery
360 Wh
Integrated
Speed
Class 1
Pedal assist to 32 km/h
Frame
OCLV Carbon
With IsoSpeed
Drivetrain
SRAM AXS
Wireless, 10–52 range
Weight
13.76 kg
Size ML
Trek warrantyLimited lifetime frame warranty
Local serviceOur Red Deer service team
Test rides in Red DeerGasoline Alley
Financing availableAsk in store
Natural assist
Explore further, climb easier
The TQ HPR60 system is light, quiet and hidden in the frame, so the Checkpoint+ rides like a gravel bike first.

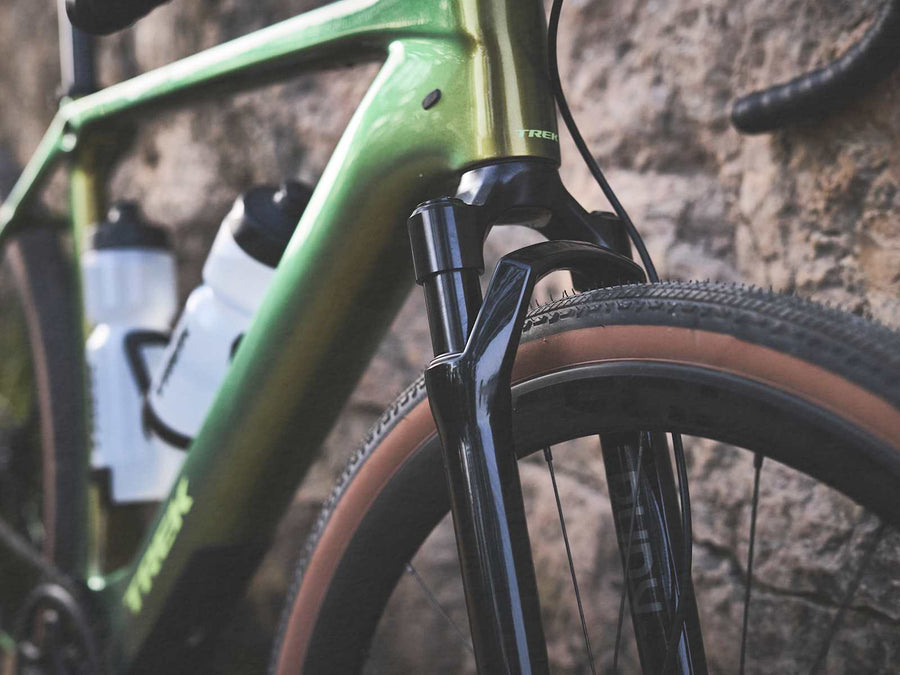

360 Wh integrated battery
Enough for long rides, with a clean look that doesn't shout e-bike.
Top-tube LED display
Bluetooth and ANT+ connectivity for your bike computer and apps.
Gravel ready
Made for back roads and big days
A 500 Series OCLV Carbon frame with IsoSpeed comfort, a wide-range drivetrain and plenty of tire clearance.

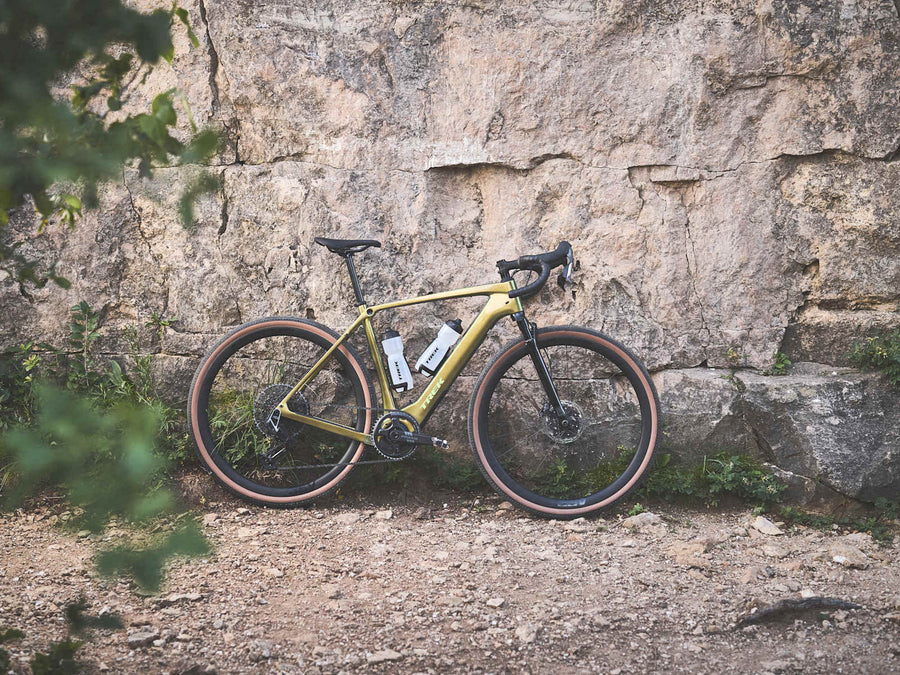

IsoSpeed
Decouples the seat tube to smooth out washboard and rough gravel.

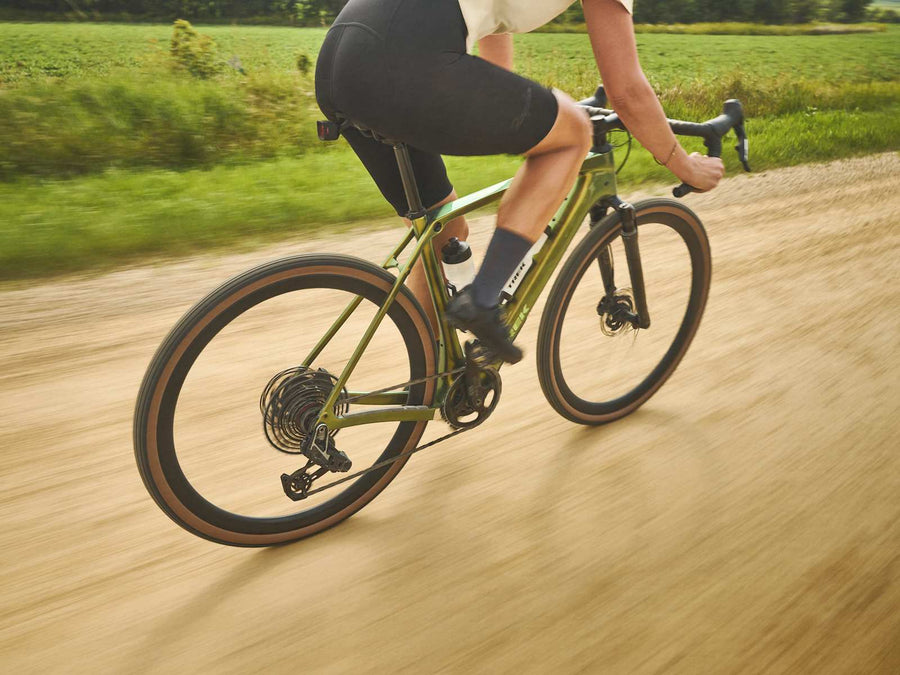

SRAM Rival AXS + GX Eagle AXS
Wireless shifting with a huge 10–52 range for steep, loose climbs.
Room for 50 mm tires
Ships with 42 mm Girona Pro tires; fits 42 mm with fenders.

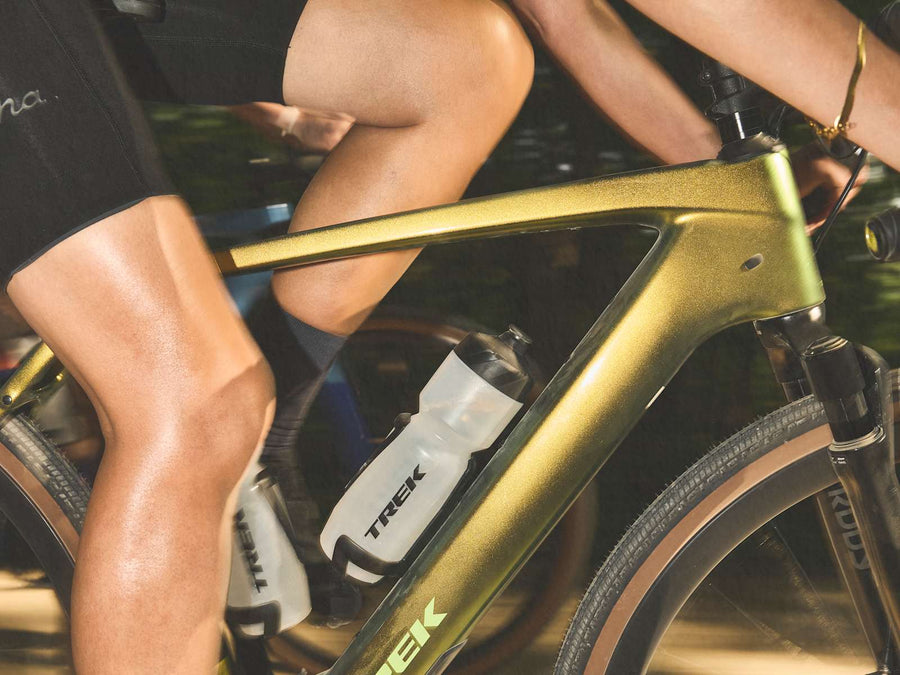

Triple-rack fork mounts
Carry bottles and bags for bikepacking and all-day rides.
Checkpoint+ SL 6 vs Domane+ ALR 6
Gravel or road?
Both use the TQ HPR60 motor and 360 Wh battery. The Checkpoint+ SL is a carbon gravel bike; the Domane+ ALR is an aluminum endurance road bike.
|
You're viewing
 Checkpoint+ SL 6$6,999.99 | ||
|---|---|---|
| Best for | Gravel, adventure, mixed terrain | Road, endurance, fitness |
| Frame | 500 Series OCLV Carbon, IsoSpeed | 300 Series Alpha Aluminum |
| Drivetrain | SRAM Rival AXS / GX Eagle AXS, 10–52 | SRAM Apex AXS, 11–44 |
| Stock tires | 42 mm gravel | 32 mm road |
| Max tire size | 50 mm | 40 mm |
| Weight | 13.76 kg (size ML) | 14.24 kg (size ML) |
Size & fit
Let's get you fit
Enter your height to get a size recommendation, or come in and we'll fit you in person.
Find your size
Enter your height and we'll recommend a frame size.
| Size | Rider height | Inseam |
|---|---|---|
| XS | 4'8" – 5'2" (143–158 cm) | 26–29" (67–74 cm) |
| S | 5'2" – 5'5" (158–164 cm) | 29–30" (74–77 cm) |
| M | 5'5" – 5'10" (164–177 cm) | 30–33" (77–83 cm) |
| ML | 5'10" – 6'2" (177–188 cm) | 33–35" (83–88 cm) |
| L | 6'2" – 6'4" (188–194 cm) | 35–36" (88–91 cm) |
| XL | 6'4" – 6'8" (194–203 cm) | 36–37" (91–95 cm) |
Sizing is a guide. Reach, arm length and riding style matter too, so a quick test ride is the best way to confirm.
Between sizes or unsure? Book a fitting or test ride and we'll help you choose.
Geometry
| Frame size | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| A – Seat tube | 445 mm | 480 mm | 505 mm | 530 mm | 550 mm | 575 mm |
| Effective seat tube angle | 72.7° | 73.0° | 72.8° | 72.8° | 72.8° | 72.8° |
| C – Head tube length | 86 mm | 106 mm | 130 mm | 151 mm | 171 mm | 191 mm |
| D – Head angle | 71.0° | 71.4° | 71.6° | 72.0° | 72.1° | 72.4° |
| E – Effective top tube | 536 mm | 547 mm | 566 mm | 578 mm | 589 mm | 601 mm |
| G – Bottom bracket drop | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| H – Chainstay length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| I – Fork offset | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| J – Trail | 71 mm | 68 mm | 68 mm | 64 mm | 64 mm | 62 mm |
| K – Wheelbase | 1023 mm | 1032 mm | 1044 mm | 1052 mm | 1063 mm | 1072 mm |
| L – Standover | 746 mm | 772 mm | 799 mm | 813 mm | 837 mm | 861 mm |
| M – Reach | 380 mm | 386 mm | 391 mm | 397 mm | 402 mm | 408 mm |
| N – Stack | 535 mm | 556 mm | 579 mm | 601 mm | 620 mm | 640 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
Specifications
Full specs
General
- Weight
- 13.76 kg (30.34 lb), size ML
- Max total weight
- 125 kg (275 lb), bike + rider + cargo
Frameset
- Frame
- 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
- Fork
- Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
E-bike system
- Battery
- TQ 360Wh
- Computer
- TQ LED display with Bluetooth & ANT+ connectivity
- Motor
- TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
- E-bike Classification
- Class 1
- Max assist speed
- 32 km/h
Drivetrain
- Shifter
- SRAM Rival AXS E1
- Rear derailleur
- SRAM GX Eagle AXS, T-Type
- Crank
- Sizes XS, S: Praxis Alloy, 165mm length / Sizes M, ML: Praxis Alloy, 170mm length / Sizes L, XL: Praxis Alloy, 172.5mm length
- Cassette
- SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Wheels
- Wheel front
- Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
- Wheel rear
- Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
- Skewer front
- Bontrager Switch chamfered thru axle
- Tire
- Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
- Max tire size
- 50mm without fenders, 42mm with fenders (as measured, see manual for details)
Components
- Saddle
- Verse Short Comp, steel rails, 145mm width
- Seatpost
- Bontrager carbon, 27.2mm, 8mm offset, 330mm length
- Handlebar
- Sizes XS, S: Bontrager Elite Gravel, alloy, 40cm width / Sizes M, ML: Bontrager Elite Gravel, alloy, 42cm width / Size L: Bontrager Elite Gravel, alloy, 44cm width / Size XL: Bontrager Elite Gravel, alloy, 46cm width
- Handlebar tape
- Bontrager Supertack Perf tape
- Stem
- Size XS: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length / Sizes S, M: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length / Sizes ML, L: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length / Size XL: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
- Brake rotor
- SRAM Paceline, rounded, centerlock, 160mm
Specs from Trek and subject to change. Weights are for the size listed.
Gear up
Compatible accessories
Finish your gravel setup.
Test rides in Red Deer
Ride it before you buy it
Come see the Checkpoint+ SL 6 AXS at our Gasoline Alley shop. We'll help you pick the right size, set it up for you and get you out for a test ride.
