Name: Abound LR Ebike
Brand: Aventon
Price: 2799.0 CAD
Availability: InStock

Aventon

Abound LR Ebike

The long-tail cargo e-bike that carries kids, groceries and gear, with smart security built in.

$2,799.00

Color: Sage

Product variants

Test ride in Red DeerTry it at our Gasoline Alley shop

Financing availableAsk us about monthly payments

2-year Aventon warrantyLifetime frame warranty with registration

Local service & supportOur service team is right here in Red Deer

Pickup available at WeLive — Red Deer (Gasoline Alley)

Usually ready in 24 hours

View store information

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.

Capacity

200 kg total

Rear rack rated to 65 kg

Motor

750 W hub

80 Nm · torque sensor

Range

Up to 97 km

733 Wh keyless battery*

Speed

Pedal & throttle

Assist to 32 km/h

Fit

One size

Riders 4'11" – 6'3"

Smart tech

4G · GPS

Alarm, E-lock, geofencing

2-year warrantyLifetime frame warranty*

UL safety certifiedElectrical system

Test rides in Red DeerGasoline Alley

Financing availableAsk in store

Built to carry

Room for the kids, the groceries and the gear

A long rear rack, passenger footboards and a low step-through frame make the Abound LR an easy car replacement for everyday errands.

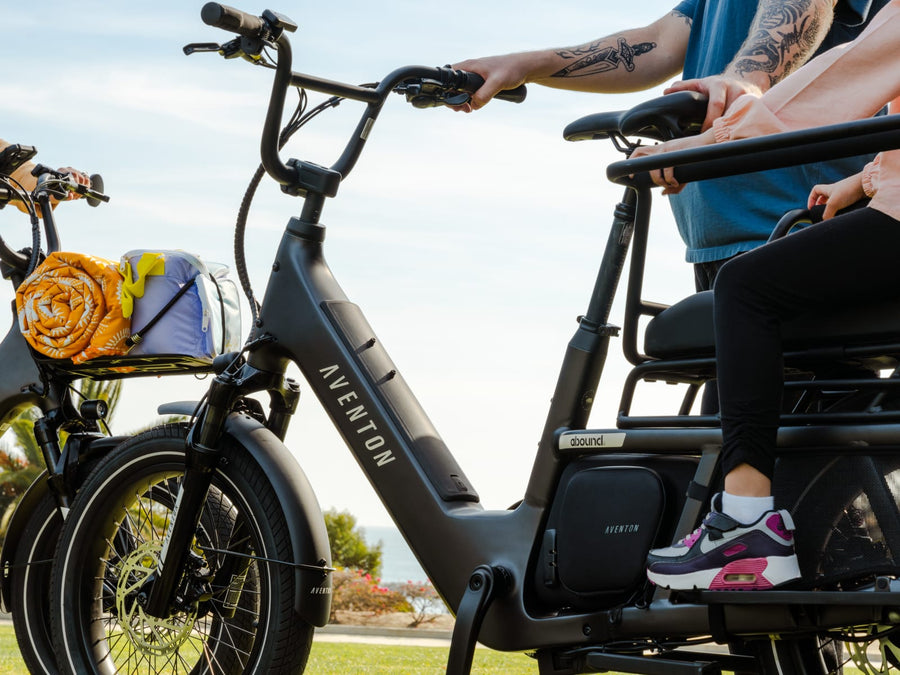

Long rear rack, 65 kg capacity

Carry a passenger, child seats or a full grocery run. 200 kg total weight limit.

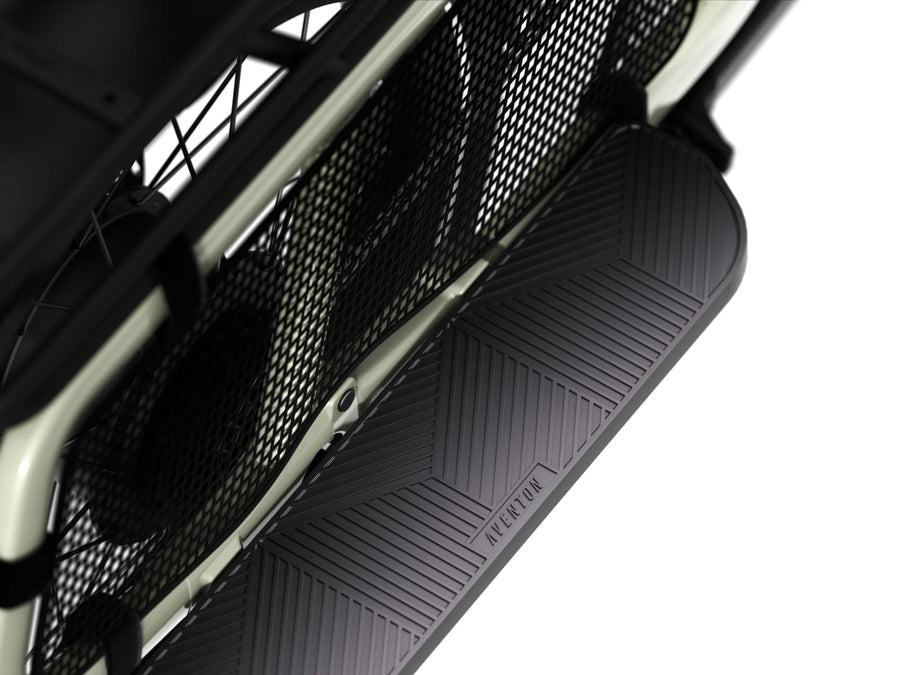

Passenger footboards

Built-in footboards give passengers a secure place for their feet.

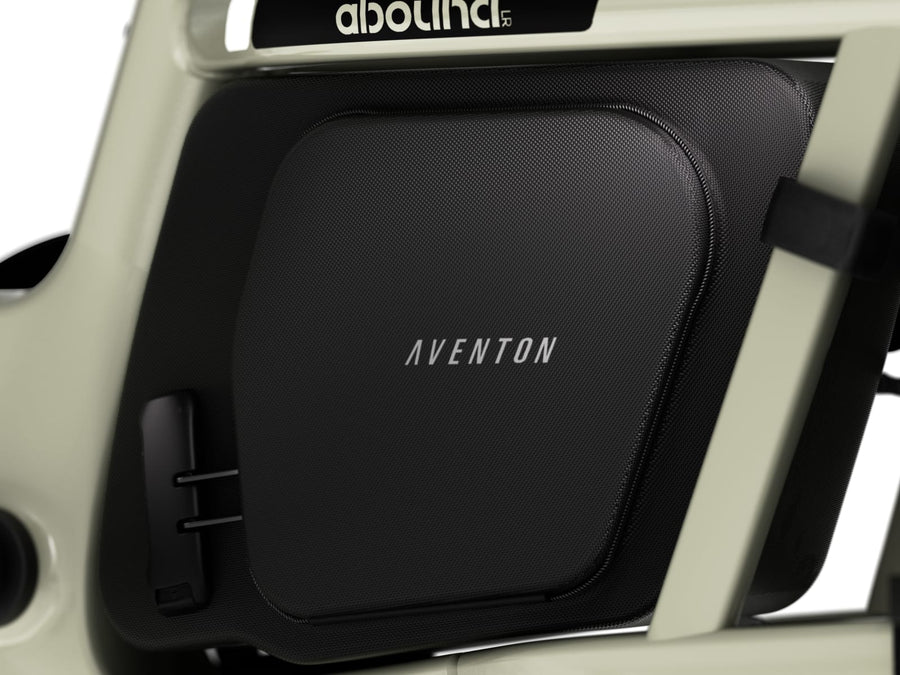

Lockable storage bag

Keep small items secure right on the frame.

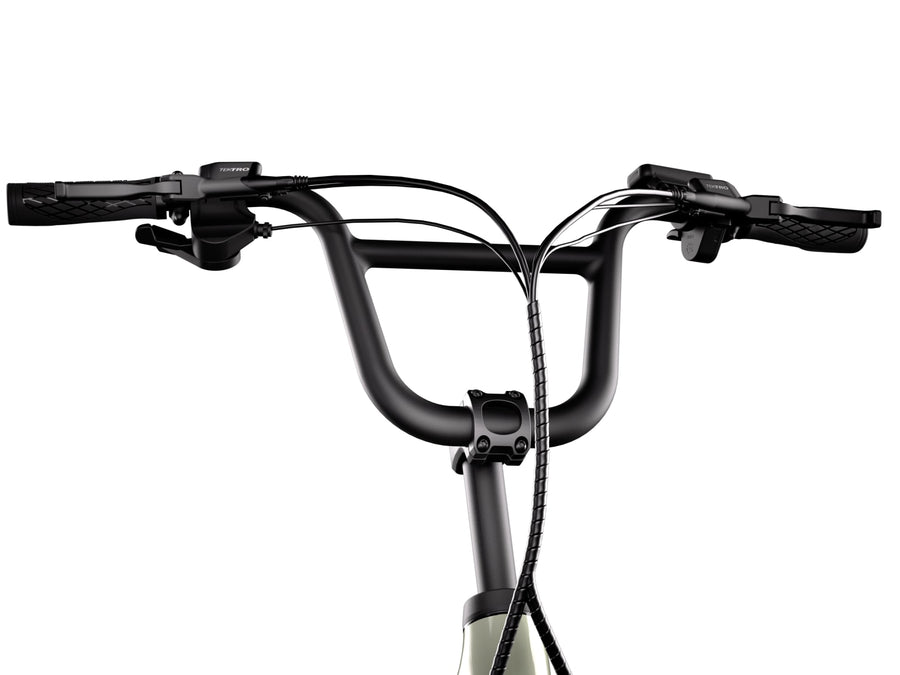

Adjustable quill stem, BMX-style bars

Raise or lower the bars so riders from 4'11" to 6'3" can share one bike.

20" × 3.0" tires

Small wheels keep the load low and stable, with reflective sidewalls for visibility.

Comfort & control

Smooth, stable and in control

Front suspension, a suspension seatpost and big hydraulic brakes keep things comfortable and confident, even fully loaded.

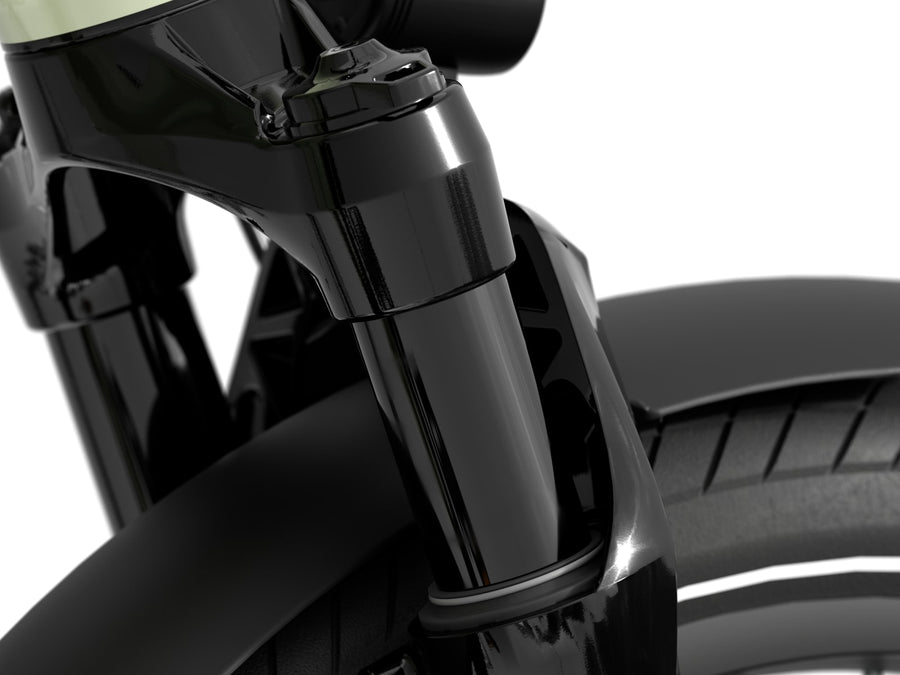

Front suspension with lockout

51 mm of travel smooths out rough roads and curbs.

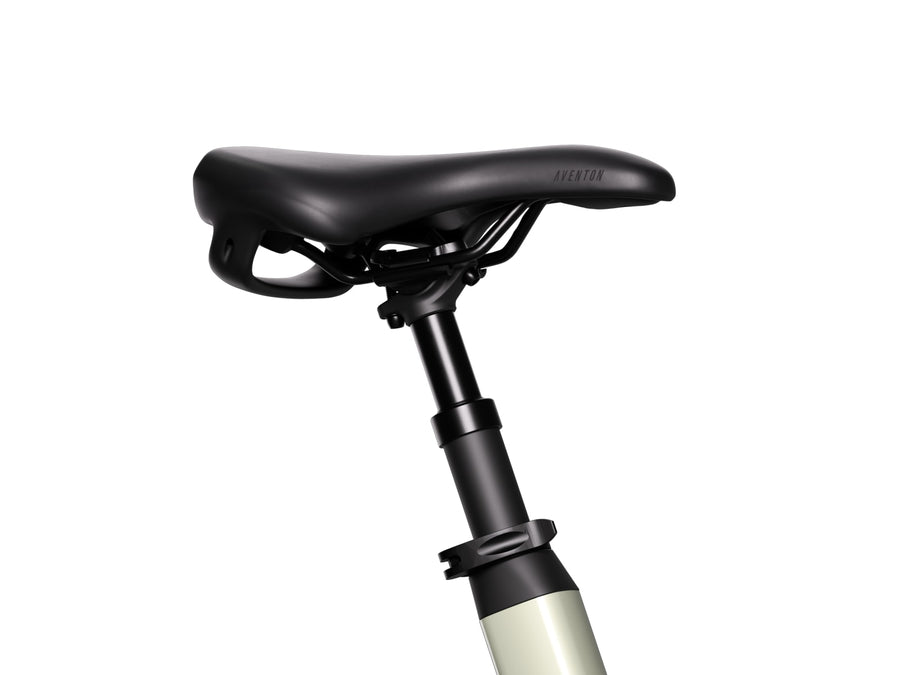

Suspension seatpost

50 mm of travel under the saddle, with a grab handle for passengers.

Hydraulic disc brakes

Tektro hydraulic brakes with 180 mm front and 203 mm rear rotors for strong, confident stops.

Integrated lights and turn signals

Front and rear lights with built-in turn signals help you be seen.

Smart & secure

Security that travels with you

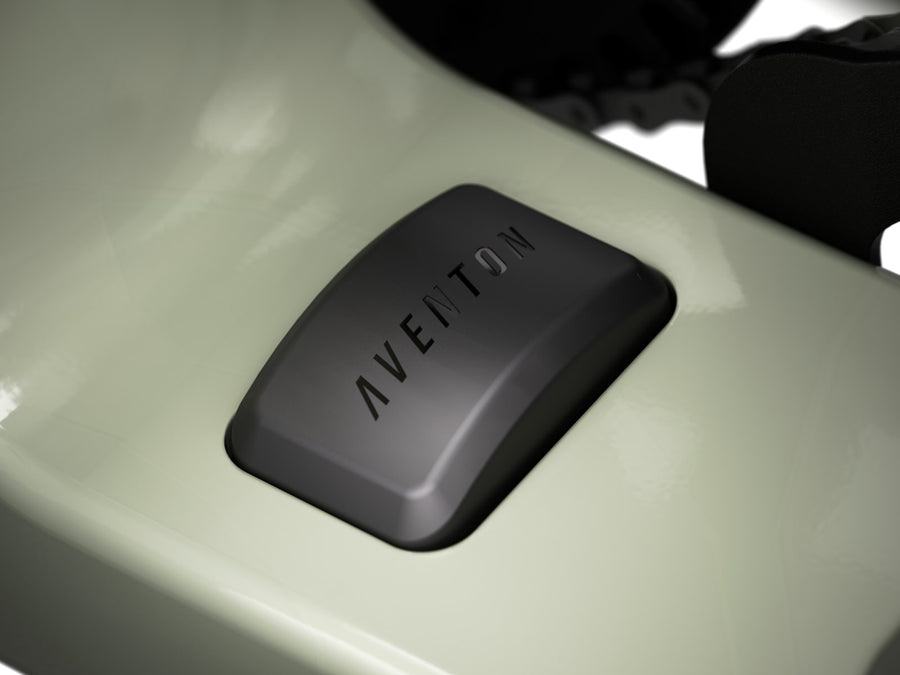

The Aventon Control Unit adds 4G/GPS tracking and security features you manage from the Aventon app.

4G/GPS tracking and geofencing

See where your bike is and set boundaries in the app.

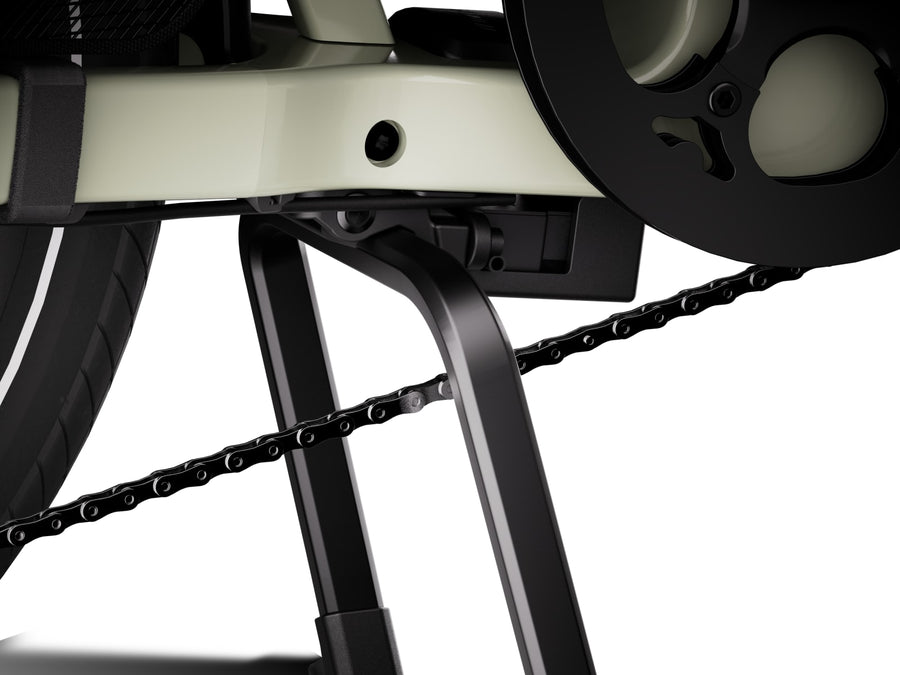

E-lock, kickstand and alarm

Lock the bike and get motion alerts if someone tries to move it.

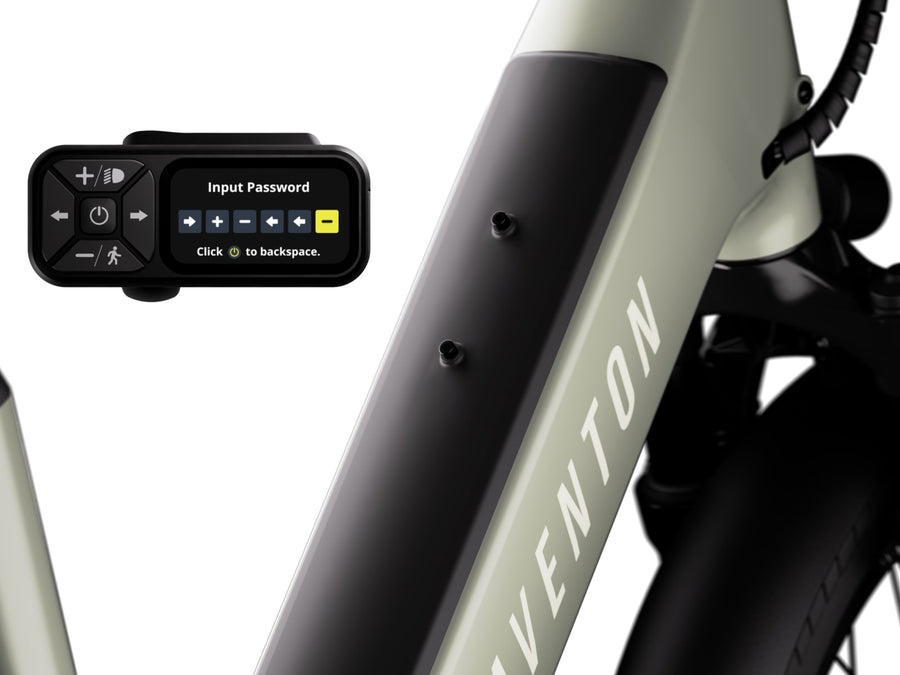

Passcode and keyless battery

A startup passcode keeps others off, and the 733 Wh battery removes without a key.

Report lost and remote shutdown

With a 4G subscription you can disable motor assist from the app if the bike goes missing.

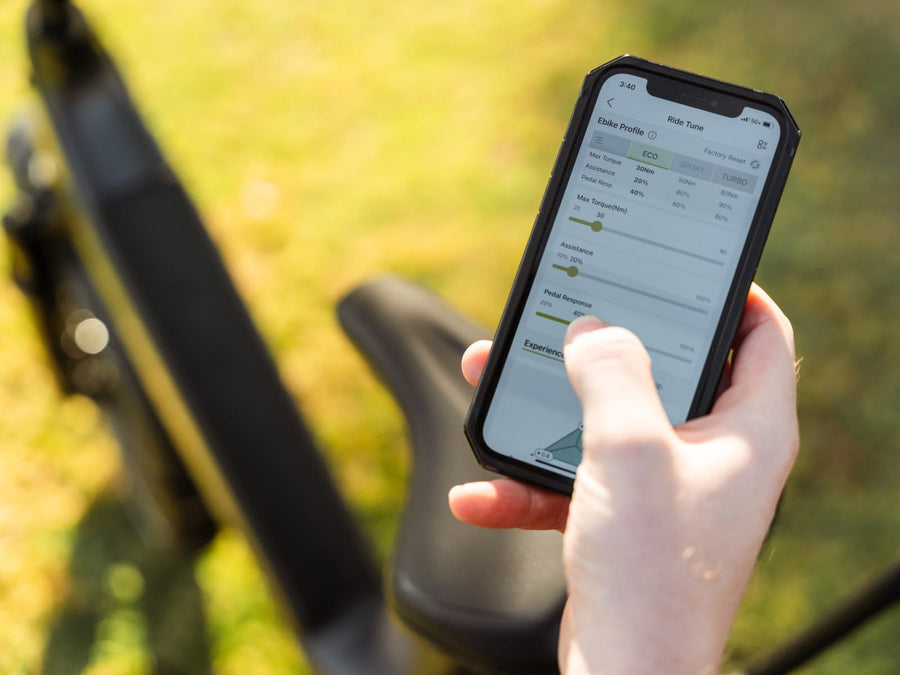

Ride Tune

Customize the 3 assist levels to suit how you ride.

Size & fit

One size fits most

The Abound LR fits riders from 4'11" to 6'3" (150–190 cm). The quill stem and seatpost adjust so the whole family can ride it.

Geometry

Frame size	One size
A – Seat tube length	380 mm
B – Top tube length (horizontal)	610 mm
C – Bottom bracket drop	30 mm
D – Head tube length	210 mm
E – Head tube angle	69°
F – Seat tube angle	70°
G – Chainstay length	660 mm
H – Front centre	673 mm
I – Wheelbase	1332 mm
J – Reach	420 mm
K – Stack	521 mm
L – Fork length	394.5 mm
M – Fork offset	38 mm
N – Trail	63 mm
Wheel size	20"
Rider height	4'11" – 6'3" (150–190 cm)

Specifications

Full specs

General

Weight: 40 kg (88 lb)
Max total weight: 200 kg (440 lb)
Rear rack capacity: 65 kg (143 lb)
Rider height: 4'11" – 6'3" (150–190 cm)
Speed: Pedal assist and throttle to 32 km/h
Range: Up to 97 km (60 mi)*
Pedal assist: 3 levels, customizable with Ride Tune
Water resistance: IPX5
Certification: UL 2849 e-bike system, UL 2271 battery
Included: Rear rack, fenders, footboards, lights with turn signals

E-bike system

Motor: Shengyi 36 V 750 W rear hub (1188 W peak)
Torque: 80 Nm
Sensor: Double-sided bottom bracket torque sensor
Battery: 36 V 20 Ah, 733 Wh, LG 21700 cells, removable & keyless
Battery weight: 3.9 kg (8.7 lb)
Charge time: About 5 hours (0–100%)
Charger: 42 V 4 A
Display: Aventon BC147
Throttle: Left-hand, handlebar mounted

Components

Fork: Suspension, 51 mm travel with lockout, 20 × 110 thru-axle
Seatpost: Aventon suspension seatpost, 50 mm travel
Brakes: Tektro HD-E3520 hydraulic disc, 180 mm front / 203 mm rear
Drivetrain: Shimano Altus 8-speed, 12–32T
Chainring: 52T
Cranks: 165 mm
Handlebar: BMX style, 720 mm, adjustable quill stem
Saddle: Selle Royal with grab handle
Tires: Innova 20 × 3.0" with reflective sidewalls

Frame

Material: Gravity cast 6061 aluminum, internal battery
Style: Step-through

Smart features

4G/GPS: Location tracking, geofencing, status reports
Security: E-lock, alarm and motion sensor, startup passcode, report lost, remote shutdown
Other: Ride Tune, transportation mode, over-the-air updates

*Range depends on rider weight, cargo, terrain, temperature and assist level. Some 4G features need an Aventon subscription. Specs from Aventon and subject to change.
